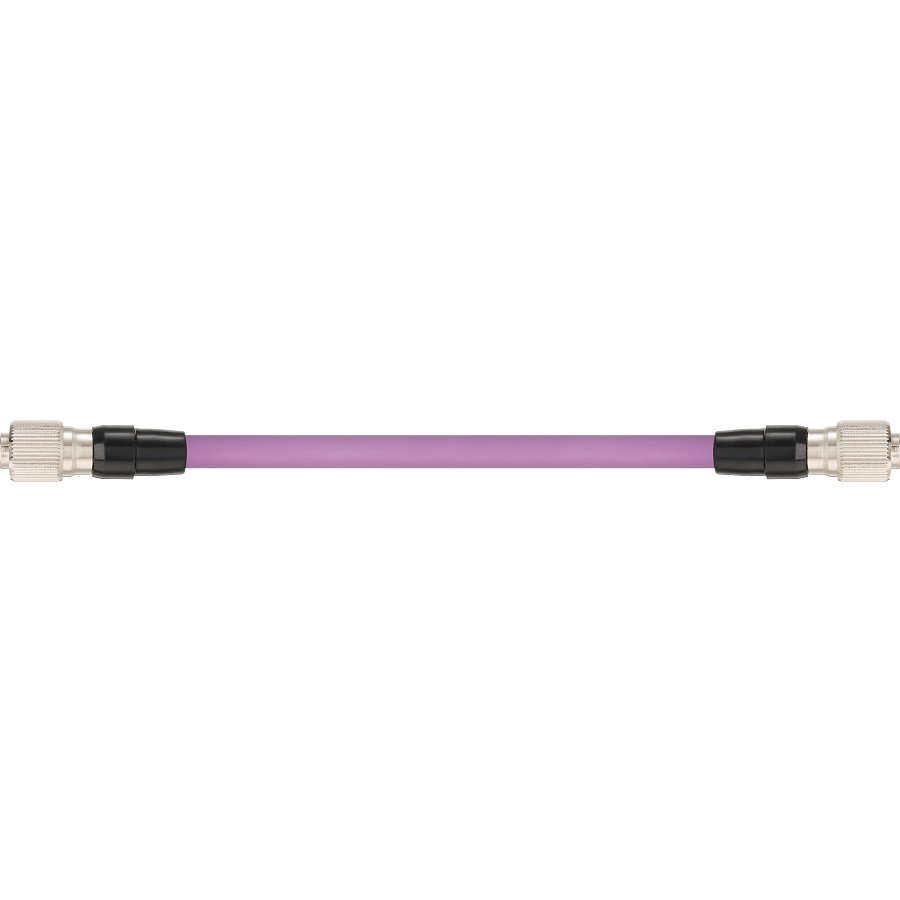

Connection cable suitable for Keyence IOP-87904 PUR, 12.5XD
Pricing
Request a quote
We reply within 24 hours
Overview
igus Connection cable suitable for Keyence IOP-87904 PUR, 12.5XD (part number MAT904194316) is listed under Safety & Detection / Tools. Bus system: USB 3; Copper index kg/km: 39 kg/km; Core group 1 core structure: 2x(2xAWG28); Core group 1 colour code: red/black, green/white-green; Core group 2 core structure: 2x(2xAWG28)C; Core group 2 colour code: blue/yellow, orange/violet.
Technical Specifications
- Manufacturer part number (MPN)
- MAT904194316
- Brand
- IGUS
- Category
- Tools
- Bus system
- USB 3
- Number of cores and conductor nominal cross-section
- (2x(2xAWG28)+2x(2xAWG28)C)C
- Copper index kg/km
- 39 kg/km
- Core group 1 core structure
- 2x(2xAWG28)
- Core group 1 colour code
- red/black, green/white-green
- Core group 2 core structure
- 2x(2xAWG28)C
- Core group 2 colour code
- blue/yellow, orange/violet
- Shipping weight (kg or kg/m)
- 0.084
- Outer diameter (d) max. mm
- 7 mm
- Weight per km
- 64 kg/km
- Min. bend radius, e-chain (factor)
- 12.5 x d
- Min. bend radius, e-chain
- 87.5 mm
- Min. bend radius, flexible (factor)
- 10 x d
- Min. bend radius, flexible
- 70 mm
- Min. bend radius, fixed (factor)
- 7 x d
- Min. bend radius, fixed
- 49 mm
- Temperature e-chain®
- -20°C up to +70°C
- Temperature, flexible
- -40°C to +70°C (according to DIN EN 60811-504)
- Temperature, fixed
- -50°C to +70°C (according to DIN EN 50305)
- v max. unsupported (speed)
- 3 m/s
- v max. gliding (speed)
- 2 m/s
- a max. (acceleration)
- 30 m/s²
- travel length
- Travels up to 20 m
- torsion
- No Torsion
- Conductor
- Stranded conductor in an especially bend-resistant version consisting of bare copper wires (according to DIN EN 60228).
- Core insulation
- Mechanically high-quality TPE mixture.
- Overall shield
- Bend-resistant braiding made of tinned copper wires. Coverage approx. 55% linear, approx. 80% optical
- Outer jacket
- Low-adhesion, halogen-free, highly abrasion-resistant PUR mixture, adapted to suit the requirements in e-chains® (according to DIN EN 50363-10-2).
- Outer jacket colour
- Red lilac (comparable to RAL 4001)
- Nominal voltage
- 50V
- Test voltage
- 500V
- UV resistance
- Medium
- Oil resistance
- Oil-resistant (according to DIN EN 50363-10-2), Class 3
- Silicone-free
- Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)
- Halogen-free
- According to DIN EN 60754
- EAC
- Certificate No. RU C-DE.ME77.B.00295/19
- Lead-free
- According to 2011/65/EU (RoHs-II/RoHS-III)
- Cleanroom
- According to ISO Class 1 The outer jacket material of this series complies with CF77.UL.05.12.D - tested by IPA according to standard DIN EN ISO 14644-1
- CE
- According to 2014/35/EU
- UL/CSA AWM
- Style 1598 and 20236, 30 V, 80 °C
- UL verified
- Certificate no. V293650: "The igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year“
- DESINA
- According to VDW, DESINA standardisation
- Flame-retardant
- According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame
- DNV
- Type approval certificate TAE00003X6
- NFPA
- According to NFPA 79-2018, chapter 12.9
- Offshore
- MUD-resistant according to NEK 606 - status 2018
Standards & Compliance
- HS Code
- 8544.42
Cross References
- OEM-URL https://www.igus.com/product/MAT904194316
Product Documentation
More from igus
igus
Connection cable suitable for Keyence IOP-87232 PUR, 12.50XD
MAT904194313
igus
Connection cable suitable for Keyence IOP-87905 PVC, 12.5XD
MAT904194317
igus
Connection cable suitable for Keyence IOP-87904 PVC, 12.5XD
MAT904194315
igus
Connection cable suitable for Keyence IOP-87905 PUR, 12.5XD
MAT904194318
igus
Han 6B Connector housing (pin) to Han 6B Connector housing (socket), Single locking lever on both sides, straight, PVC 7.5 x d
MAT90489361
igus
Han 6B Connector housing (pin) to Han 6B Connector housing (socket), Single locking lever on both sides, straight, PVC 12.5 x d
MAT90489360
igus
Han 6B Connector housing (pin) to Han 6B Connector housing (socket), Single locking lever on both sides, straight, iguPUR
MAT90489363
igus
Han 6B Connector housing (pin) to Han 6B Connector housing (socket), Single locking lever on both sides, straight, PVC 6.8 x d
MAT90489362
