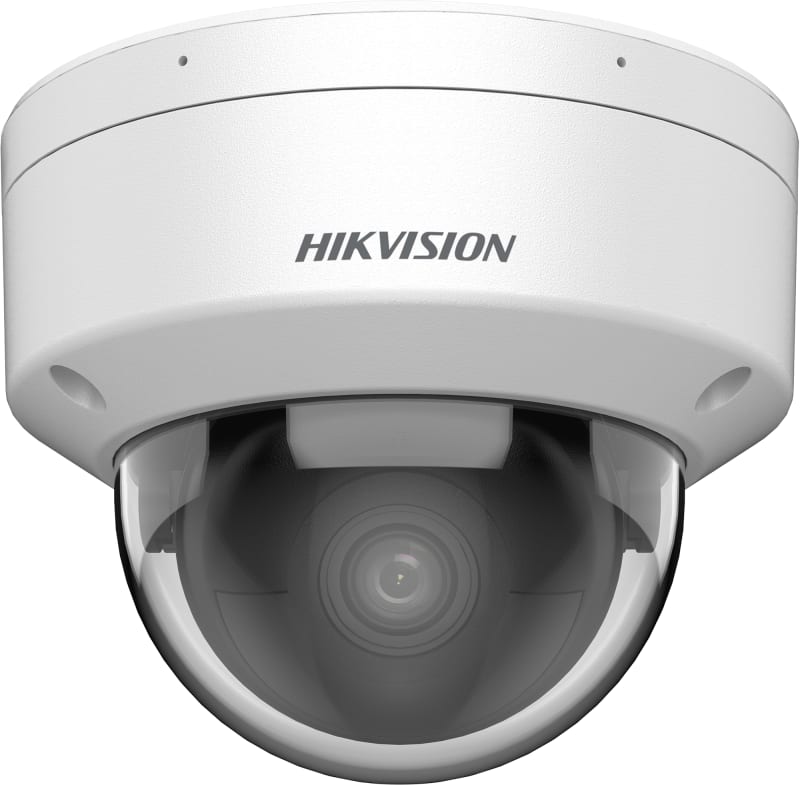

8 MP Darkfighter Fixed Dome Camera (DS-2CD2186G2H-ISU(2.8mm)(eF))
Pricing
Request a quote
We reply within 24 hours
Product Description
Hikvision DS-2CD2186G2H-ISU(2.8mm)(eF) DS-2CD2186G2H-ISU(2.8mm)(eF) 8 MP Powered by Darkfighter Fixed Dome Network Camera; Water and dust resistant (IP67).
Technical Specifications
- Manufacturer part number (MPN)
- DS-2CD2186G2H-ISU(2.8mm)(eF)
- EAN / GTIN
- 6942160440941
- Sales unit
- pcs
- Colour
- White
- Height
- 97.6 mm
- Voltage type
- DC
- Power consumption
- 9.5 W
- Diameter
- 121.5 mm
- Suitable for wall mounting
- Yes
- Construction type
- Dome shape
- Number of digital inputs
- 1
- Number of digital outputs
- 1
- Memory capacity
- 512 GB
- Ambient temperature
- -30–60 °C
- Suitable for outdoor use
- Yes
- Protocol
- TCP/IP
- Supply voltage
- 12 V
- Impact strength
- IK10
- Focus
- Fixed
- Focal size
- 2.8 mm
- Degree of protection (IP)
- IP67
- Vandal proof
- Yes
- Scope of application
- Outside
- Type of transmission medium
- Twisted Pair
- Number of pixels (Megapixel)
- 8
- Suitable for surface mounting
- Yes
- Flush-mounted installation/built-in installation
- No
- With infrared lighting
- Yes
- Power over Ethernet (PoE)
- 802.3 at (PoE+)
- With memory card
- No
- With microphone
- Yes
- Max. infrared reach
- 30 m
- Supports H.264 codec
- Yes
- Supports H.265 codec
- Yes
- With white light
- No
- Thermal camera
- No
- Communication medium wired
- Yes
- WDR (Wide Dynamic Range)
- 130 dB
- With slot for memory card
- Yes
- Suitable for ceiling mounting
- Yes
- Suitable for corner mounting
- Yes
- Transmission
- TCP/IP
- Country of origin
- China
Standards & Compliance
- HS Code
- 8525.89
Cross References
- EAN 6942160440941
- SAP 1200795312
- Code 83959965
