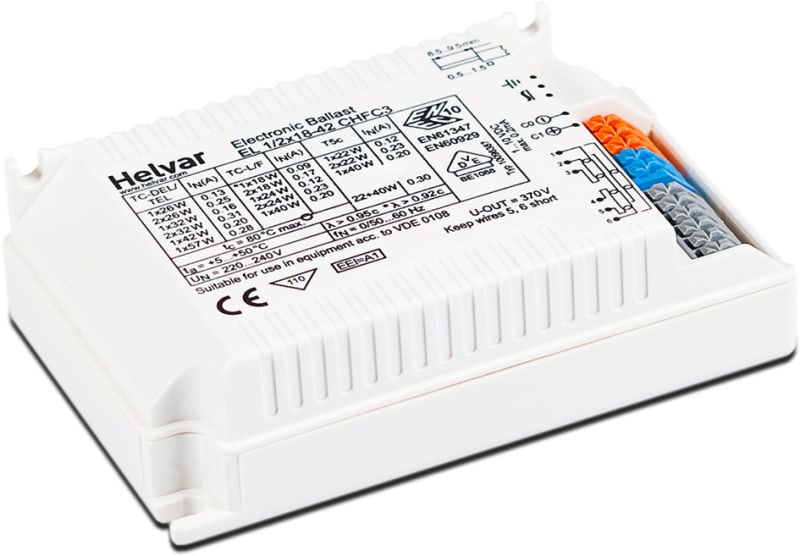

Helvar Electronic Ballast 1/2 x 18-42 W TC-S Multi (EL1/2X18-42TCS)
Helvar

Helvar Electronic Ballast 1/2 x 18-42 W TC-S Multi

Part numberEL1/2X18-42TCSEAN / GTIN7070886001661HS code8504.10
MOQ:1

Pricing

Request a quote

We reply within 24 hours

Product Description

Helvar EL1/2X18-42TCS is a multi-lamp electronic ballast for compact fluorescent lamps rated 18 to 40 W, supporting one or two lamps at 220 to 240 V. The 103 x 67 x 28 mm plastic-housed unit covers TC-D, TC-DD, TC-L, TC-DEL, TC-TEL, TC-T, TC-F and T16-R lamp types. Non-dimming operation for general fluorescent lighting applications.

Technical Specifications

Manufacturer part number (MPN)
EL1/2X18-42TCS
EAN / GTIN
7070886001661
Sales unit
pcs
Protection class according to IEC 61140
I
Width
67 mm
Model
Electronic
Height
28 mm
Housing
Plastic housing
Suitable for lamp power
18–40 W
With strain relief
No
Length
103 mm
For lamp type TC-D
Yes
For lamp type TC-DD
Yes
For lamp type TC-L
Yes
For lamp type TC-DEL
Yes
For lamp type TC-TEL
Yes
For lamp type T7
No
For lamp type T16
No
For lamp type T26
No
For lamp type T-R
No
For lamp type TC-T
Yes
For lamp type TC-S
No
For lamp type HI
No
Nominal voltage
220–240 V
For lamp type HM
No
For lamp type HS
No
For lamp type LS
No
For lamp type T16-R
Yes
For lamp type T38
No
For lamp type TC-F
Yes
For lamp type TC-QEL
No
For lamp type TC-SEL
No
For lamp type T-U
No
Multiwatt model
Yes
Suitable for number of lamps
1–2
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming potentiometer (integrated)
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off (trailing edge)
No
Dimming phase cut-on (leading edge)
No
Dimming programmable
No
Dimming RF
No
Dimming Its Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
No dim function
Yes
Dimming DSI
No
Country of origin
Norway

Standards & Compliance

HS Code
8504.10

Cross References

  • EAN 7070886001661
  • SAP 1000096231
  • Code 8953762

Product Documentation

Document preview: Helvar Electronic Ballast 1/2 x 18-42 W TC-S Multi (EL1/2X18-42TCS) — Specification sheet

Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.

Frequently asked questions

Where can I buy EL1/2X18-42TCS?
EL1/2X18-42TCS can be ordered from cballast.com as a Helvar catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
What is the manufacturer part number for this Helvar product?
The manufacturer part number is EL1/2X18-42TCS.
What is the HS code for EL1/2X18-42TCS?
The customs tariff (HS) code for EL1/2X18-42TCS is 8504.10.
Who manufactures EL1/2X18-42TCS?
EL1/2X18-42TCS is a Helvar product in the Lighting & Electrical Accessories range.
Is a datasheet available for EL1/2X18-42TCS?
Yes — the EL1/2X18-42TCS datasheet can be viewed and downloaded on this page.
What is the minimum order quantity for EL1/2X18-42TCS?
The minimum order quantity is 1.
Is EL1/2X18-42TCS available?
Yes — EL1/2X18-42TCS is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
