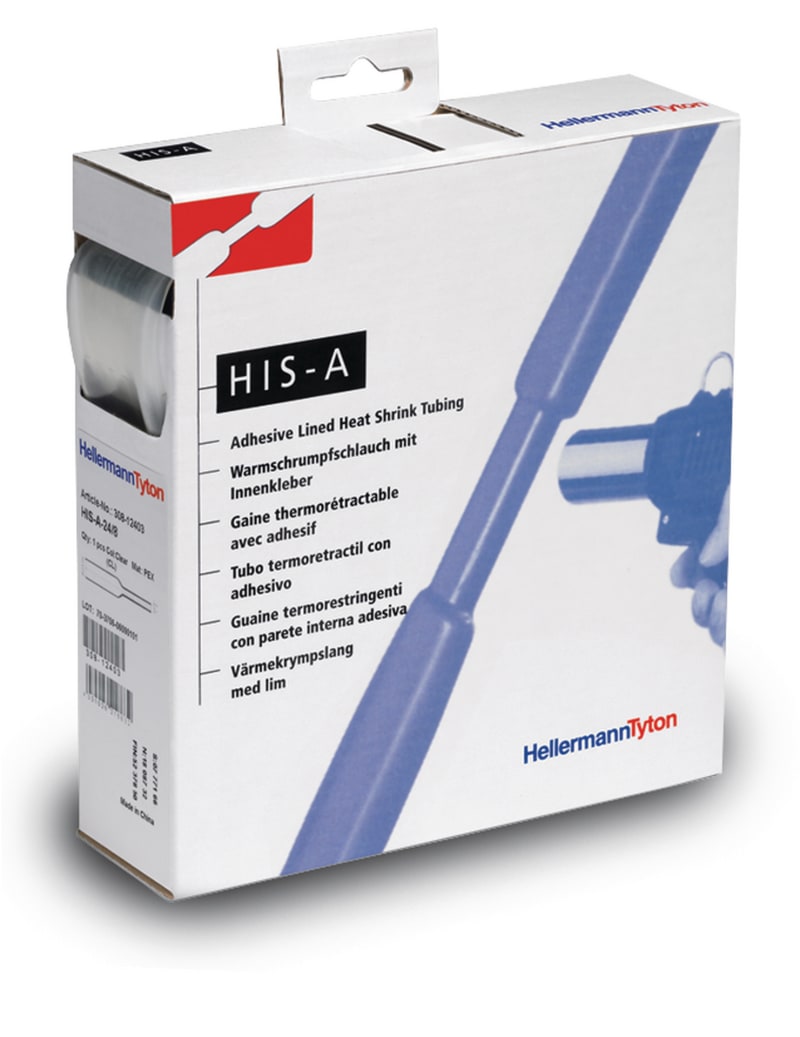

Heat Shrink Tubing HISA 24/8 mm 3 m Clear with Adhesive Lining

Hellermanntyton 308-12403 Shrink HISA 24/8mm 3m clear With ADHESIVE.

Manufacturer part number (MPN)

308-12403 EAN / GTIN: 4031026270517 Sales unit: pcs Package quantity: 3 pcs OEM part description: HIS-A-24/8-PO-X-CL Type: HIS-A-24/8 Product family: HIS-A - with adhesive liner Serration: Thin-Wall material: Polyolefin, cross-linked (PO-X) Colour: Transparent (CL) Length: 3 m Wall thickness: 2.35 mm Supplied diameter (min.): 24.0 mm Recovered diameter (max.): 8.0 mm Operating temperature: -55 °C to +125 °C Halogen-free: Yes RoHS compliant: Yes ELV compliant (Article 4-2): Yes Hazardous goods: No Weight per unit: 0.33375 kg Packed in: box Inner pack quantity: 1 Inner pack type: carton Country of origin: CN Customs tariff number: 39173200 ETIM 9.0 class: EC000217 UNSPSC code: 39121723 Behaviour At Low Temperature: not cracking Behaviour at Heat Shock: not cracking, not fluid, not dripping Behaviour at low Temperature test method: UL 224 Elongation At Heat Aging: 200 % Heat Aging Test: 168h/158°C Heat Aging test method: UL 224 Heat Shock Test: 4h/250°C Heat shock test test method: UL 224 minimum Tensile Strength At Heat Aging: 12 MPa Model: Thin-walled Wall thickness after shrinking: 2.35 mm Inner diameter before heat-shrink: 24 mm Inner diameter after heat-shrink: 8 mm Transparent: Yes Printable: No With inner glue: Yes Shrink rate: 3:1 UL approval: No

HS Code

3917.33

• EAN 4031026270517
• SAP 1200053602
• Code 81896571
