Hellermann
Conductor Marker TULT24-8DS-2 x 25YE
Part number553-71045EAN / GTIN4031026453699HS code3917.32
Electrical Components
Cable Marking
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

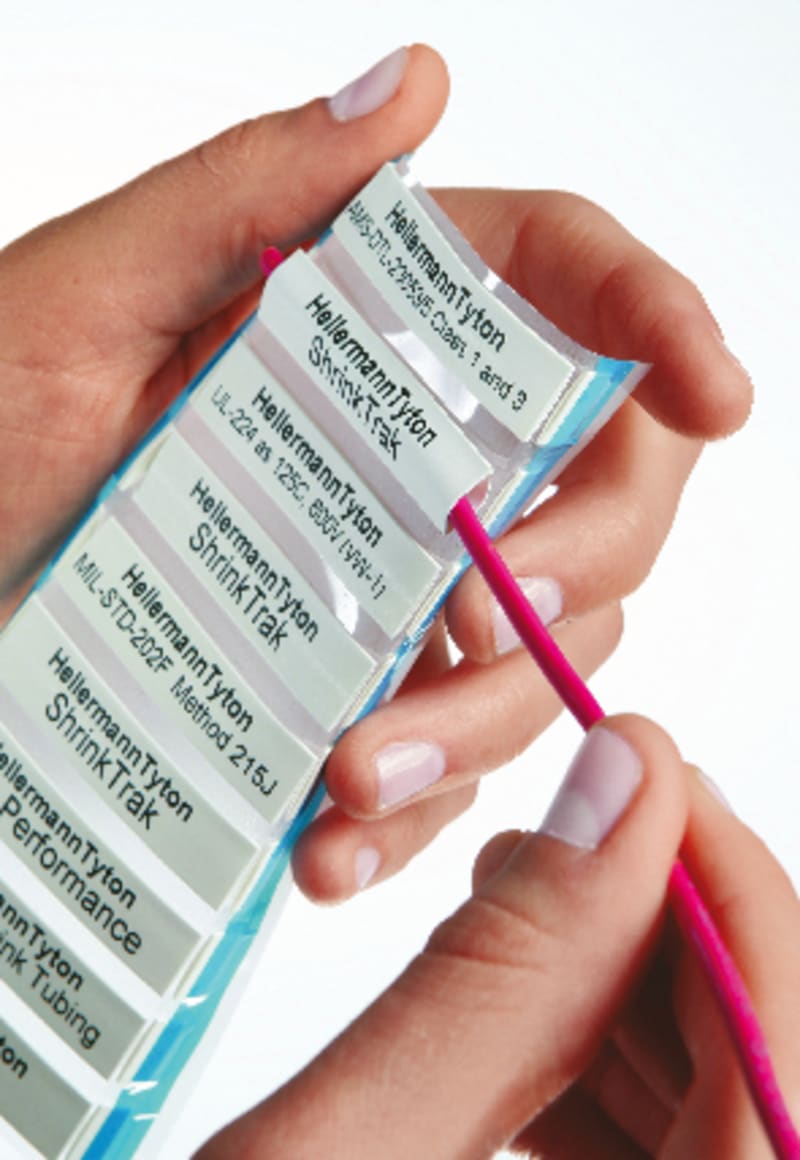

ShrinkTrak heat-shrink markers with 3:1 shrink ratio make it easy to mark wires and cables.
Technical Specifications
- Manufacturer part number (MPN)
- 553-71045
- EAN / GTIN
- 4031026453699
- Sales unit
- roll
- Package quantity
- 500 roll
- OEM part description
- TULT24-8DS-2x25YE-PO-X-YE
- Type
- TULT24-8DS-2x25YE
- Product family
- TULT DS – 3:1 Military and Electronics "Ladder Style"
- Serration
- Roller form
- Material
- Polyolefin, cross-linked (PO-X)
- Colour
- Yellow (YE)
- Width
- 25 mm
- Wall thickness
- 1.08 mm
- Supplied diameter (min.)
- 24.0 mm
- Recovered diameter (max.)
- 8.0 mm
- Fixation method
- Suspend
- Print method
- thermal transfer print
- Label space
- Yes
- Operating temperature
- -55 °C to +135 °C
- Flammability rating
- UL 224 VW-1
- Halogen-free
- No
- RoHS compliant
- Yes
- ELV compliant (Article 4-2)
- Yes
- UL recognised (US and Canada)
- Yes
- Standards
- ANSI/UL 224, C22.2 no. 198.1-99, MIL-STD-202H Method 215K
- Hazardous goods
- No
- Weight per unit
- 0.0015 kg
- Packed in
- carton
- Inner pack quantity
- 500
- Inner pack type
- bag
- Country of origin
- DK
- Customs tariff number
- 39173200
- ETIM 9.0 class
- EC001530
- UNSPSC code
- 39131502
- Behaviour at low Temperature test method
- ASTM D2671
- Heat Aging Test
- 168h/175°C
- Heat Aging test method
- ASTM D638
- Model
- Roller shape
- Toothing
- None
- Length
- 25 mm
- Transparent
- No
- With label space
- Yes
- Imprint
- None
Standards & Compliance
- HS Code
- 3917.32
Cross References
- EAN 4031026453699
- SAP 1000721987
- Code 8449869
Product Documentation
Document preview: HellermannTyton 553-71045 — Technical Data Sheet (OEM)
