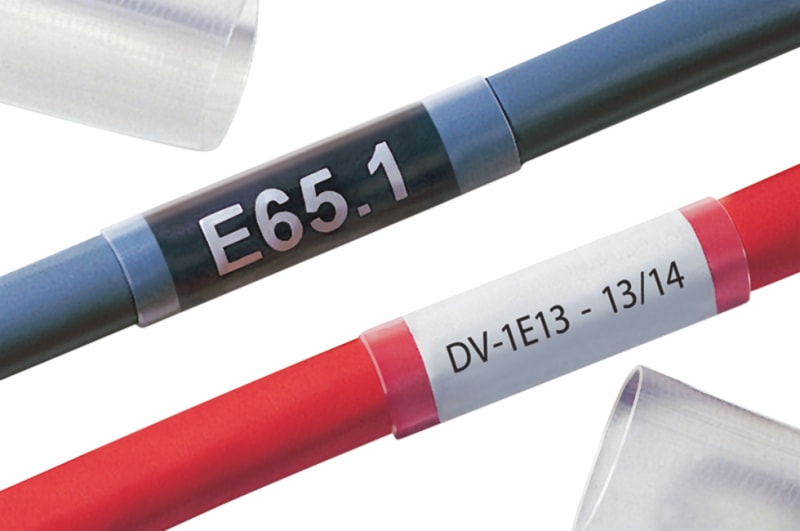

Heat Shrink Tubing TFN21 50.8/25.4 Clear 30 m

Hellermann 309-61030 Thin-walled 2:1-shrink 50,8/25,4mm Clear.

Manufacturer part number (MPN)

309-61030 EAN / GTIN: 4031026536941 Sales unit: m Package quantity: 30 m OEM part description: TFN21 50.8/25.4-PO-X-CL Type: TFN21 50.8/25.4 Product family: TFN21 Serration: Thin-Wall material: Polyolefin, cross-linked (PO-X) Colour: Transparent (CL) Length: 30.0 m Wall thickness: 1.10 mm Supplied diameter (min.): 50.8 mm Recovered diameter (max.): 25.4 mm Operating temperature: -55 °C to +135 °C Halogen-free: No RoHS compliant: Yes ELV compliant (Article 4-2): Yes Hazardous goods: No Weight per unit: 0.114 kg Packed in: reel Inner pack quantity: 30 Inner pack type: reel Country of origin: CN Customs tariff number: 39173200 ETIM 9.0 class: EC000217 UNSPSC code: 39121723 Behaviour At Low Temperature: not cracking Behaviour at Heat Shock: not cracking, not breaking, not fluid Behaviour at low Temperature test method: UL 224 Elongation At Heat Aging: 700 % Heat Aging Test: 168h/175°C Heat Aging test method: UL 224 Heat Shock Test: 4h/250°C minimum Tensile Strength At Heat Aging: 13.5 MPa Printable: No Model: Thin-walled Wall thickness after shrinking: 1.1 mm Inner diameter before heat-shrink: 50.8 mm Inner diameter after heat-shrink: 25.4 mm Transparent: Yes With inner glue: No Shrink rate: 2:1 UL approval: Yes

HS Code

3917.32

• EAN 4031026536941
• SAP 1000726709
• Code 8349058
