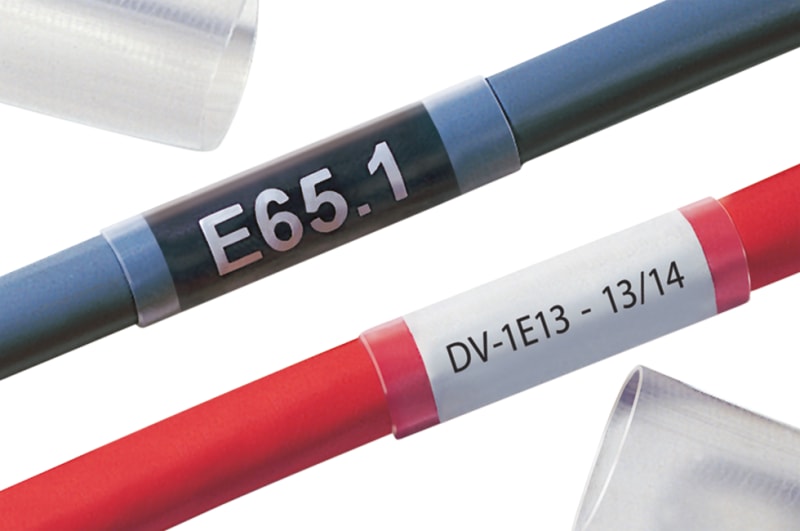

Heat Shrink Tubing TFN31 40/13 mm Clear 30 m

Hellermann 333-42017 Thin-walled 3:1-shrink 40.0/13.0mm Clear.

Manufacturer part number (MPN)

333-42017 EAN / GTIN: 4031026538266 Sales unit: m Package quantity: 30 m OEM part description: TFN31 39/13-PO-X-CL Type: TFN31 39/13 Product family: TFN31 Serration: Thin-Wall material: Polyolefin, cross-linked (PO-X) Colour: Transparent (CL) Length: 30.0 m Wall thickness: 1.25 mm Supplied diameter (min.): 39.0 mm Recovered diameter (max.): 13.0 mm Operating temperature: -55 °C to +135 °C Halogen-free: Yes RoHS compliant: Yes ELV compliant (Article 4-2): Yes UL recognised (US and Canada): Yes Standards: ANSI/UL 224 Hazardous goods: No Weight per unit: 0.060246 kg Packed in: reel Inner pack quantity: 30 Inner pack type: reel Country of origin: CN Customs tariff number: 39173200 ETIM 9.0 class: EC000217 UNSPSC code: 39121723 Behaviour At Low Temperature: not cracking Behaviour at Heat Shock: not fluid, not dripping, not cracking Behaviour at low Temperature test method: UL 224 Elongation At Heat Aging: 400 % Heat Aging Test: 168h/175°C Heat Shock Test: 4h/250°C minimum Tensile Strength At Heat Aging: 11 MPa Model: Thin-walled Wall thickness after shrinking: 1.25 mm Inner diameter before heat-shrink: 39 mm Inner diameter after heat-shrink: 13 mm Transparent: Yes Printable: No With inner glue: No Shrink rate: 3:1 UL approval: Yes

HS Code

3917.32

• EAN 4031026538266
• SAP 1000726708
• Code 8297074
