Hellermann
Heat Shrink Tubing HISA 24/8 3 m Sv with Adhesive Lining
Part number308-12400EAN / GTIN4031026218632HS code3917.32
Cables & Wiring
Heat Shrink
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

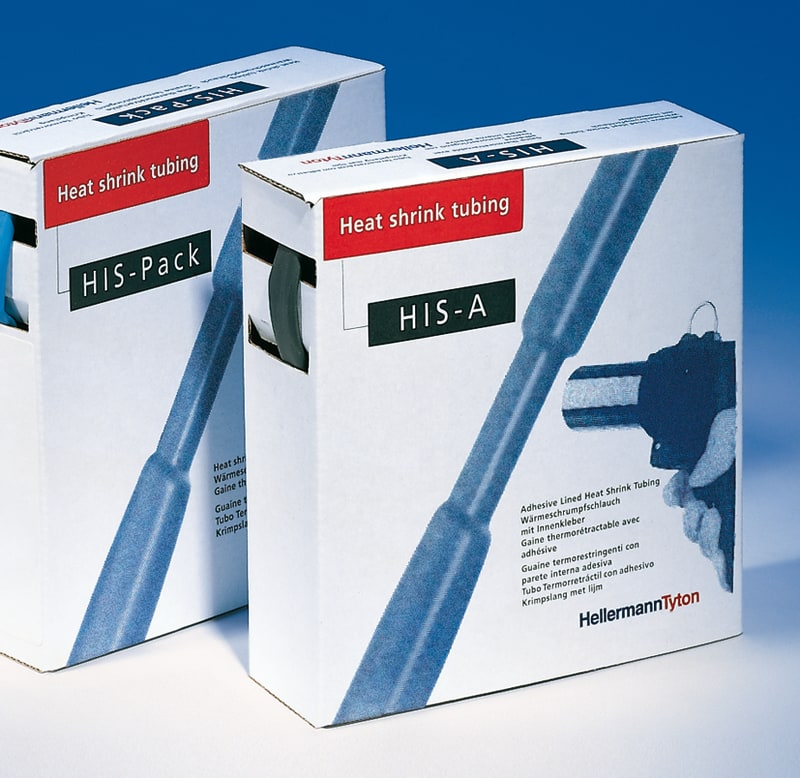

Hellermann 308-12400 HISA Heat-shrink tubing in dispenser box with adhesive. 24,0/8,0mm 3m Black.
Technical Specifications
- Manufacturer part number (MPN)
- 308-12400
- EAN / GTIN
- 4031026218632
- Sales unit
- carton
- Package quantity
- 5 carton
- OEM part description
- HIS-A-24/8-PO-X-BK
- Type
- HIS-A-24/8
- Product family
- HIS-A - with adhesive liner
- Serration
- Thin-Wall
- Material
- Polyolefin, cross-linked (PO-X)
- Colour
- Black (BK)
- Length
- 3 m
- Wall thickness
- 2.35 mm
- Supplied diameter (min.)
- 24.0 mm
- Recovered diameter (max.)
- 8.0 mm
- Operating temperature
- -55 °C to +125 °C
- Flammability rating
- UL 224 VW-1
- Halogen-free
- No
- RoHS compliant
- Yes
- ELV compliant (Article 4-2)
- Yes
- UL recognised (US and Canada)
- Yes
- Standards
- ANSI/UL 224, C22.2 no. 198.1-06, CSA -C22.1, CSA -C22.2 No.198.1
- Hazardous goods
- No
- Weight per unit
- 0.355 kg
- Packed in
- pcs.
- Inner pack quantity
- 1
- Inner pack type
- carton
- Country of origin
- CN
- Customs tariff number
- 39173200
- ETIM 9.0 class
- EC000217
- UNSPSC code
- 39121723
- Behaviour At Low Temperature
- not cracking
- Behaviour at Heat Shock
- not cracking, not fluid, not dripping
- Behaviour at low Temperature test method
- UL 224
- Elongation At Heat Aging
- 200 %
- Heat Aging Test
- 168h/158°C
- Heat Aging test method
- UL 224
- Model
- Thin-walled
- Wall thickness after shrinking
- 2.5 mm
- Inner diameter before heat-shrink
- 24 mm
- Inner diameter after heat-shrink
- 8 mm
- Transparent
- No
- Printable
- Yes
- With inner glue
- Yes
- Shrink rate
- 3:1
- UL approval
- Yes
Standards & Compliance
- HS Code
- 3917.32
Cross References
- EAN 4031026218632
- SAP 1000045427
- Code 8778340
Product Documentation
Document preview: HellermannTyton 308-12400 — Technical Data Sheet (OEM)
