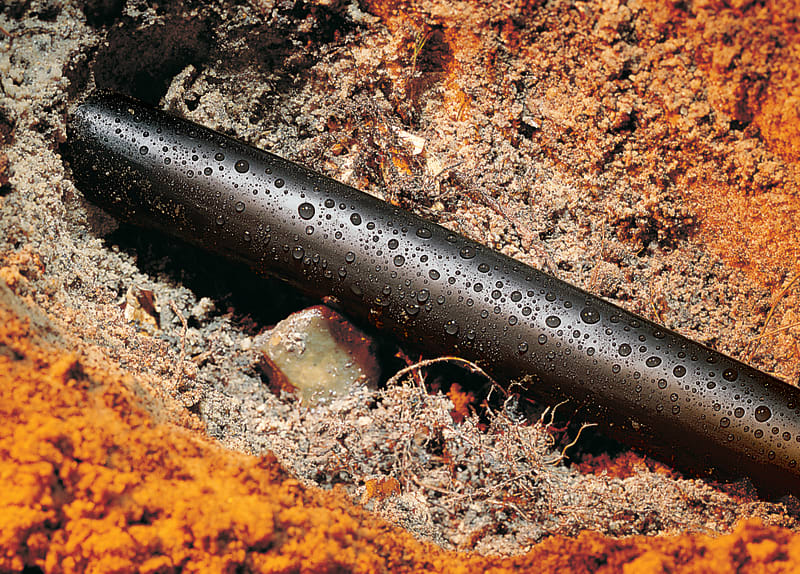

Heat Shrink Tubing HA47 85/25 mm Black 1 m

Hellermann 321-50850 Tredux HA47 thick-walled with adhesive, black 1m.

Manufacturer part number (MPN)

321-50850

EAN / GTIN

4031026239910

Sales unit

pcs

Package quantity

2 pcs

OEM part description

TREDUX-HA47-85/25-PO-X-BK

Type

TREDUX-HA47-85/25

Product family

TREDUX HA47 - thick wall adhesive lined

Serration

Thick-Wall

Material

Polyolefin, cross-linked (PO-X)

Colour

Black (BK)

Length

1.0 m

Wall thickness

4.3 mm

Supplied diameter (min.)

85.0 mm

Recovered diameter (max.)

25.4 mm

Operating temperature

-55 °C to +110 °C

Halogen-free

Yes

RoHS compliant

Yes

ELV compliant (Article 4-2)

Yes

Hazardous goods

No

Weight per unit

0.38911 kg

Packed in

pcs.

Inner pack quantity

1

Inner pack type

carton

Country of origin

CN

Customs tariff number

39173200

ETIM 9.0 class

EC000217

UNSPSC code

39121723

Printable

No

Shrink Ratio

up to 4:1

Voltage range

Low Voltage

With inner glue (Yes/No)

Yes

For Object Outside Diameter

37.32-73.08 mm

Longitudinal Change After Shrinkage

-10% max.

Nominal ⌀

85 mm

Wire Size Range (mm²)

37.0-73.0 mm²

Adhesive

Hot melt adhesive

Model

Thick-walled

Wall thickness after shrinking

4.3 mm

Inner diameter before heat-shrink

85 mm

Inner diameter after heat-shrink

25.4 mm

Transparent

No

Shrink rate

4:1

UL approval

No

HS Code

3917.32
