Hellermann

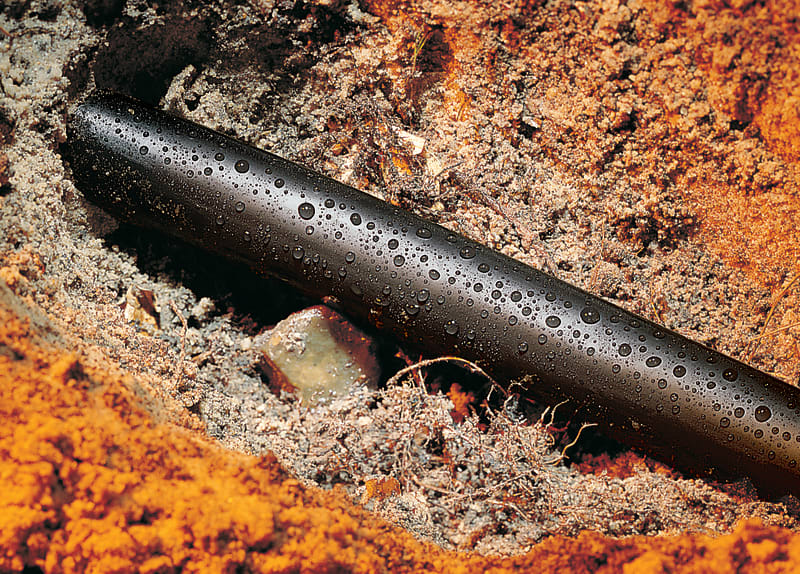

Heat Shrink Tubing HA47 68/22 mm Black 1 m
Part number321-50680EAN / GTIN4031026239903HS code3917.32
Cables & Wiring
Heat Shrink
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Hellermann 321-50680 Tredux HA47 thick-walled with adhesive, black 1m.
Technical Specifications
- Manufacturer part number (MPN)
- 321-50680
- EAN / GTIN
- 4031026239903
- Sales unit
- pcs
- OEM part description
- TREDUX-HA47-68/22-PO-X-BK
- Type
- TREDUX-HA47-68/22
- Product family
- TREDUX HA47 - thick wall adhesive lined
- Serration
- Thick-Wall
- Material
- Polyolefin, cross-linked (PO-X)
- Colour
- Black (BK)
- Length
- 1.0 m
- Wall thickness
- 4.1 mm
- Supplied diameter (min.)
- 68.0 mm
- Recovered diameter (max.)
- 22.0 mm
- Operating temperature
- -55 °C to +110 °C
- Halogen-free
- Yes
- RoHS compliant
- Yes
- ELV compliant (Article 4-2)
- Yes
- Hazardous goods
- No
- Weight per unit
- 0.33333 kg
- Package content
- 1 pc.
- Packed in
- pcs.
- Inner pack quantity
- 1
- Inner pack type
- carton
- Country of origin
- CN
- Customs tariff number
- 39173200
- ETIM 9.0 class
- EC000217
- UNSPSC code
- 39121723
- Printable
- No
- Shrink Ratio
- up to 4:1
- Voltage range
- Low Voltage
- With inner glue (Yes/No)
- Yes
- For Object Outside Diameter
- 31.2-58.8 mm
- Longitudinal Change After Shrinkage
- -10% max.
- Nominal ⌀
- 68 mm
- Wire Size Range (mm²)
- 31.2-58.8 mm²
- Adhesive
- Hot melt adhesive
- Model
- Thick-walled
- Wall thickness after shrinking
- 4.1 mm
- Inner diameter before heat-shrink
- 68 mm
- Inner diameter after heat-shrink
- 22 mm
- Transparent
- No
- Shrink rate
- 4:1
- UL approval
- No
Standards & Compliance
- HS Code
- 3917.32
Cross References
- EAN 4031026239903
- SAP 1000014932
- Code 8127021
Product Documentation
Document preview: HellermannTyton 321-50680 — Technical Data Sheet (OEM)
