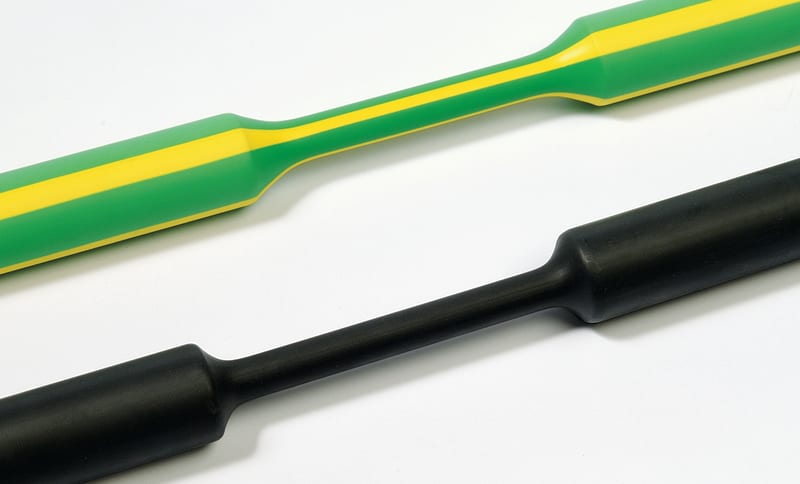

Heat Shrink Tubing 3.0/1.5 GG 20 x 1 m

Hellermann 319-00307 Heat-shrink tubing up to 3:1 - 1 m lengder TREDUX-3/1-Yellow/Green.

Manufacturer part number (MPN)

319-00307

EAN / GTIN

4031026227665

Sales unit

pcs

Package quantity

20 pcs

OEM part description

TREDUX-3/1-PO-X-GNYE

Type

TREDUX-3/1

Product family

TREDUX - thin wall

Serration

Thin-Wall

Material

Polyolefin, cross-linked (PO-X)

Colour

Green-Yellow (GNYE)

Length

1.0 m

Wall thickness

0.55 mm

Supplied diameter (min.)

3.0 mm

Recovered diameter (max.)

1.0 mm

Pre-printed

No

Operating temperature

-55 °C to +135 °C

Flammability rating

UL 224 VW-1

RoHS compliant

Yes

ELV compliant (Article 4-2)

Yes

UL recognised (US and Canada)

Yes

Standards

ANSI/UL 224, C22.2 no. 198.1-06

Hazardous goods

No

Weight per unit

0.00318 kg

Packed in

pcs.

Inner pack quantity

20

Inner pack type

carton

Country of origin

CN

Customs tariff number

39173200

ETIM 9.0 class

EC000217

UNSPSC code

39121723

Behaviour at Heat Shock

not fluid, not dripping, not cracking

Behaviour at low Temperature test method

UL 224

Elongation At Heat Aging

400 %

Heat Aging Test

168h/175°C

Heat Shock Test

4h/250°C

Heat shock test test method

UL 224

Model

Thin-walled

Halogen free

No

Wall thickness after shrinking

0.6 mm

Inner diameter before heat-shrink

3 mm

Inner diameter after heat-shrink

1 mm

Transparent

No

Printable

Yes

With inner glue

No

Shrink rate

3:1

UL approval

Yes

HS Code

3917.32
