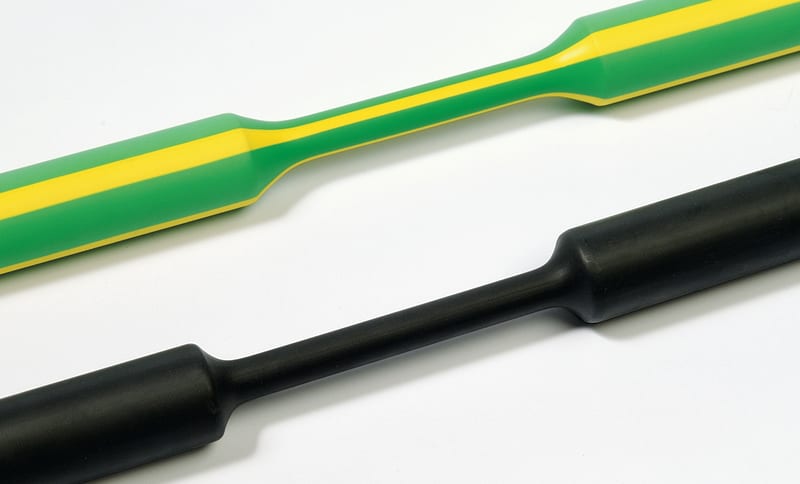

Heat Shrink Tubing 24.0/8.0 Black 5 x 1 m

Hellermann 319-02400 Heat-shrink tubing up to 3:1 1 m lengder TREDUX-24/8, black.

Manufacturer part number (MPN)

319-02400 EAN / GTIN: 4031026227702 Sales unit: pcs Package quantity: 5 pcs OEM part description: TREDUX-24/8-PO-X-BK Type: TREDUX-24/8 Product family: TREDUX - thin wall Serration: Thin-Wall material: Polyolefin, cross-linked (PO-X) Colour: Black (BK) Length: 1.0 m Wall thickness: 1.20 mm Supplied diameter (min.): 24.0 mm Recovered diameter (max.): 8.0 mm Operating temperature: -55 °C to +135 °C Flammability rating: UL 224 VW-1 RoHS compliant: Yes ELV compliant (Article 4-2): Yes UL recognised (US and Canada): Yes Standards: ANSI/UL 224, C22.2 no. 198.1-06 Hazardous goods: No Weight per unit: 0.034275 kg Packed in: pcs. Inner pack quantity: 5 Inner pack type: carton Country of origin: CN Customs tariff number: 39173200 ETIM 9.0 class: EC000217 UNSPSC code: 39121723 Behaviour at Heat Shock: not fluid, not dripping, not cracking Behaviour at low Temperature test method: UL 224 Elongation At Heat Aging: 400 % Heat Aging Test: 168h/175°C Heat Shock Test: 4h/250°C Heat shock test test method: UL 224 minimum Tensile Strength At Heat Aging: 11 MPa Model: Thin-walled Halogen free: No Wall thickness after shrinking: 1.2 mm Inner diameter before heat-shrink: 24 mm Inner diameter after heat-shrink: 8 mm Transparent: No Printable: Yes With inner glue: No Shrink rate: 3:1 UL approval: Yes

HS Code

3917.32

• EAN 4031026227702
• SAP 1000028544
• Code 8504147
