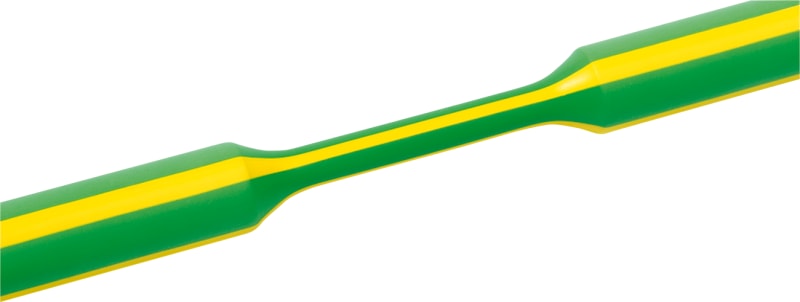

Heat Shrink Tubing TF31 6.0/2.0 mm G/g 300 with ROLL

Hellermann 333-20607 Heat-Shrink Tubing TF has excellent electrical, mechanical and chemical properties and meets industrial standards.

Manufacturer part number (MPN)

333-20607

EAN / GTIN

4031026226095

Sales unit

m

Package quantity

300 m

OEM part description

TF31-6/2-PO-X-GNYE

Type

TF31-6/2

Product family

TF31

Serration

Thin-Wall

Material

Polyolefin, cross-linked (PO-X)

Colour

Green-Yellow (GNYE)

Length

300.0 m

Wall thickness

0.70 mm

Supplied diameter (min.)

6.0 mm

Recovered diameter (max.)

2.0 mm

Operating temperature

-55 °C to +135 °C

Flammability rating

UL 224 VW-1

Halogen-free

No

RoHS compliant

Yes

UL recognised (US and Canada)

No

Standards

ANSI/UL 224, CSA-C22.2 No.198.1-99

Packed in

reel

Country of origin

DE

ETIM 9.0 class

EC000217

UNSPSC code

39121723

Behaviour At Low Temperature

not cracking

Behaviour at Heat Shock

not dripping, not fluid, not cracking

Behaviour at low Temperature test method

UL 224

Elongation At Heat Aging

400 %

Heat Aging Test

168h/158°C

Heat Aging test method

SAE-AMS-DTL-23053

Heat Shock Test

4h/250°C

Printable

No

Shrink Ratio

3:1

With inner glue (Yes/No)

No

For Object Outside Diameter

2.8-5.2 mm

Longitudinal Change After Shrinkage

+5%/-15%

Model

Thin-walled

Wall thickness after shrinking

0.65 mm

Inner diameter before heat-shrink

6 mm

Inner diameter after heat-shrink

2 mm

Transparent

No

Shrink rate

3:1

UL approval

Yes

HS Code

3917.32

• EAN 4031026226095
• SAP 1000693414
• Code 8405658
