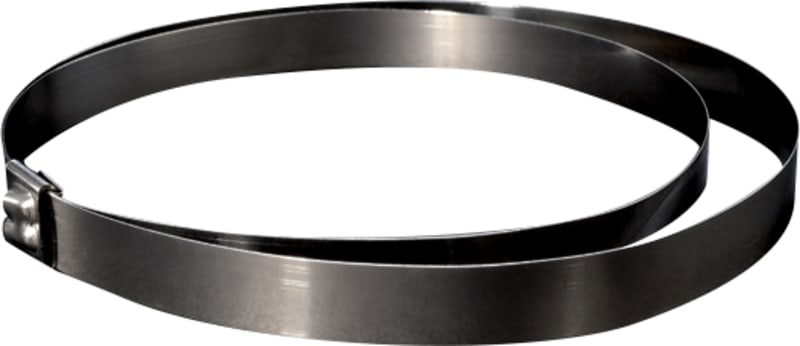

Steel band MBT27UHDFC 681X16MM
Pricing
Request a quote
We reply within 24 hours
Product Description
Cable tie in acid-resistant stainless steel, double wrap, to kuler in the locking head, with belegg L: 681 mm W: 16 mm black 50 pc HF LFH RoHS.
Technical Specifications
- Manufacturer part number (MPN)
- 111-01521 EAN / GTIN: 5022660341748 Sales unit: pcs Package quantity: 50 pcs OEM part description: MBT27UHDFC-SS316L/SP-BK Type: MBT27UHDFC Product family: MBTUHDFC-Series, stainless steel 316L Serration: Not Serrated material: Stainless Steel (SS316L), Polyester, saturised (SP) Colour: Black (BK) minimum tensile strength: 5000 N Bundle diameter: 25-100 mm Length: 681 mm Width: 16 mm Thickness: 0.38 mm Closure type: ball bearing lock Releasable closure: No Identification plate position: none Operating temperature: -80 °C to +538 °C Flammability rating: non-burning (except coating), low smoke in accordance with CSA C22.2 No. 62275:21 Halogen-free: Yes RoHS compliant: Yes ELV compliant (Article 4-2): Yes Standards: CSA -C22.2 no. 62275, UL 62275 Hazardous goods: No Weight per unit: 0.0028 kg Packed in: bag Inner pack quantity: 50 Inner pack type: bag Country of origin: GB Customs tariff number: 73269098 ETIM 9.0 class: EC000046 UNSPSC code: 39121703 Internet Customer Notice: For hard, smooth surface applications, we recommend the use of our LFPC protective channels. Limited Fire Hazard: Yes Operating Temperature Coating: -50 °C to +150 °C Dimensions: 681x16 mm Detectable: Yes Band width: 16 mm Length belt/tape/tie: 681 mm Tie thickness: 0.38 mm Max. bundle diameter: 100 mm Min. holding force: 5000 N Min. bundle diameter: 25 mm Min. tensile strength: 2500 N Mounting temperature: -50–150 °C Band closure: Ball latch material quality: Stainless steel 316 (V4A) Surface protection: Plastic-coated UV-stable according to ASTM D6779: Yes Transparent: No Fluorescent: No Text strip: None Type of fastening: None VG approval: No MIL approval: No UL approval: Yes Model: Without toothing
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 5022660341748
- SAP 1000501993
- Code 8323222
