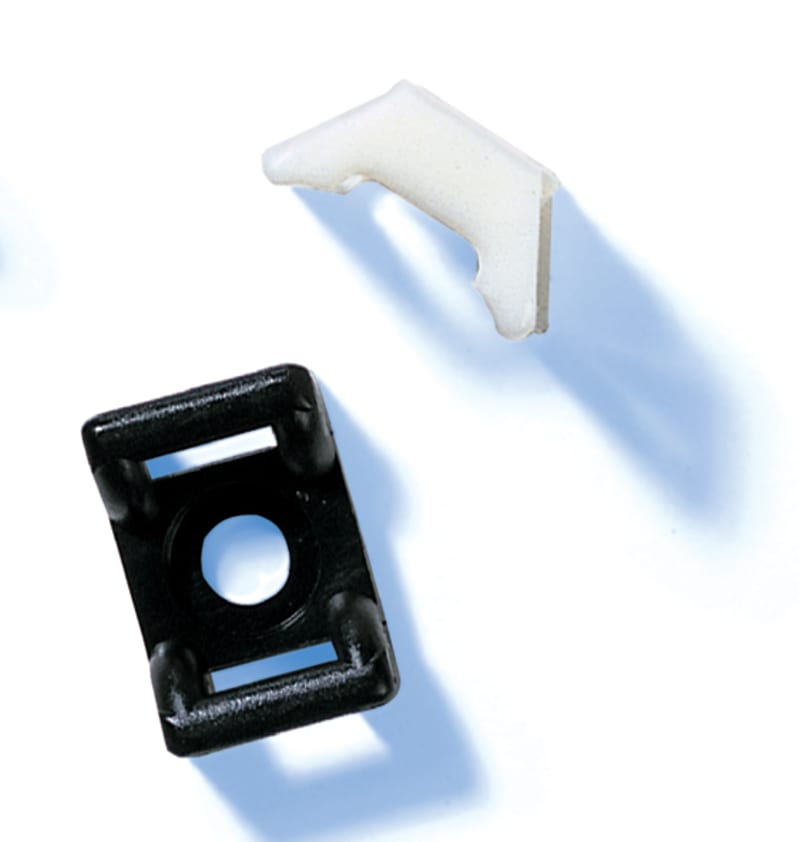

HellermannTyton 151-27019 LKC Cable Tie Mount Screw/Rivet 17 x 25 mm Natural
Pricing
Request a quote
We reply within 24 hours
Product Description
HellermannTyton 151-27019 is a natural polyamide 6.6 cable-tie mount from the LKC family with an overlapping curved base measuring 17 x 25 mm and 13.5 mm high. Fixation is by M4 screw or rivet through a 5.5 mm mounting hole, and the mount accepts cable ties from T50 to T250 up to 8 mm wide. Rated -40 to +85 degrees C, UL 94 V2 flammability and halogen-free, it suits bundle routing in cabinets, chassis and machine frames.
Technical Specifications
- Manufacturer part number (MPN)
- 151-27019
- EAN / GTIN
- 5022660310430
- Sales unit
- pcs
- Package quantity
- 100 pcs
- OEM part description
- LKC-PA66-NA
- Type
- LKC
- Product family
- LKC with overlapping curved design
- Material
- Polyamide 6.6 (PA66)
- Colour
- Natural (NA)
- Length
- 25.0 mm
- Width
- 17.0 mm
- Height
- 13.5 mm
- Fixation method
- Screw Mounting and Rivet
- Operating temperature
- -40 °C to +85 °C
- Flammability rating
- UL 94 V2
- Halogen-free
- Yes
- RoHS compliant
- Yes
- ELV compliant (Article 4-2)
- Yes
- Hazardous goods
- No
- Weight per unit
- 0.001563 kg
- Packed in
- pack
- Inner pack quantity
- 100
- Inner pack type
- bag
- Country of origin
- GB
- Customs tariff number
- 39269097
- ETIM 9.0 class
- EC000449
- UNSPSC code
- 39121717
- For Ties
- T50 - T250
- Mounting Screw Type
- M4 Screw
- Strap Width max. (G)
- 8.0 mm
- for Hole ⌀ (FH)
- 5.5 mm
- Nato number
- 5975-12-196-0743
- Case quantity
- 6000
- Case type
- box
- Pallet quantity
- 120000
- Pallet type
- pallet
- Dimensions
- 17x25 mm
- Suitable for cable tie width to
- 8 mm
- Material quality
- Polyamide (PA)
- Type of fastening
- Screw and rivet
- Diameter mounting hole
- 5.5 mm
- Detectable
- No
Standards & Compliance
- HS Code
- 3926.90
Cross References
- EAN 5022660310430
- SAP 1000223702
- Code 8119024
Product Documentation
