Hellermann

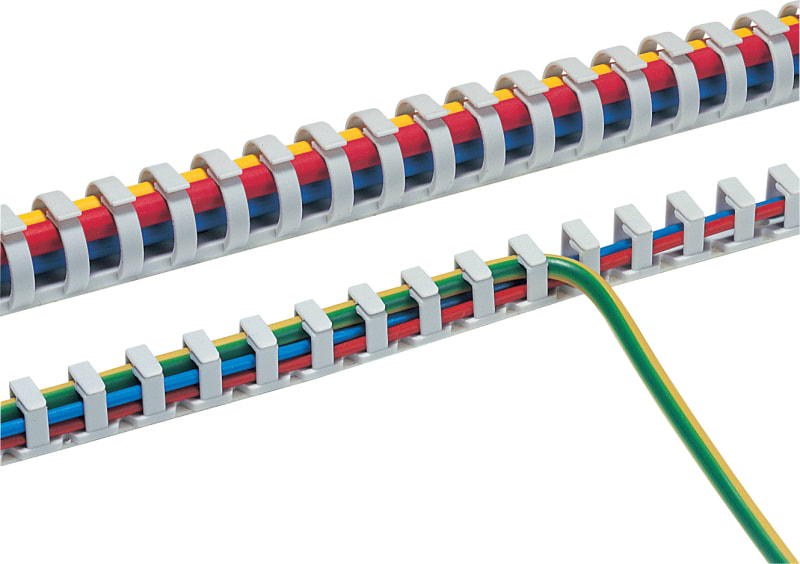

Cable Trunking Heladuct Flex 30SK
Part number164-31108EAN / GTIN4031026124254HS code3925.90
Control & Automation
Conduit & Trunking
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Hellermann 164-31108 Wiring Ducts slotted halogen-free.
Technical Specifications
- Manufacturer part number (MPN)
- 164-31108
- EAN / GTIN
- 4031026124254
- Sales unit
- pcs
- Package quantity
- 40 pcs
- OEM part description
- HelaDuct Flex30SK-PP-WH
- Type
- HelaDuct Flex30SK
- Product family
- HelaDuct Flex
- Material
- Polypropylene (PP)
- Colour
- White (WH)
- Length
- 500 mm
- Width
- 34.0 mm
- Height
- 36.0 mm
- Fixation method
- Screw Mounting and Adhesive
- Operating temperature
- -20 °C to +70 °C
- Flammability rating
- UL 94 V0 (excluding adhesive)
- UV stabilised
- No
- Halogen-free
- Yes
- RoHS compliant
- Yes
- ELV compliant (Article 4-2)
- Yes
- UL recognised (US and Canada)
- Yes
- Hazardous goods
- No
- Weight per unit
- 0.059 kg
- Packed in
- pack
- Inner pack type
- pack
- Country of origin
- DE
- Customs tariff number
- 39259020
- ETIM 9.0 class
- EC000012
- UNSPSC code
- 39131712
- Current leak stable Yes/No
- Yes
- No. of Wires
- 34 x 2.50 mm²
- Type of side wall
- Slotted
- Diameter (D)
- 30 mm
- Inside ⌀ (ID)
- 30.0 mm
- Nominal ⌀
- 30 mm
- Adhesive
- Synthetic rubber with base of polyethylene foam
- Adhesive Operating Temperature
- -20 °C to +70 °C
- Flexible
- Yes
- Self-extinguishing
- Yes
- Type of fastening
- Self-adhesive and bottom perforation
- Distance of slots
- 8 mm
- Slit width
- 5 mm
- With cover
- No
Standards & Compliance
- HS Code
- 3925.90
Cross References
- EAN 4031026124254
- SAP 1000016370
- Code 8133577
Product Documentation
Document preview: Cable Trunking Heladuct Flex 30SK (164-31108) — Specification sheet
More from Hellermann
Hellermann
Nipple M40 ASS 40 IP66/67 Sv
Hellermann
Fuse Ker 5X25MM 450V K 6,3A
7008913.6,3
Hellermann
hose Corrugated Ø28mm 50M PA HF SV
166-11112
Hellermann
Kantklips m Cable tie T50ROSEC5B
150-40581
Hellermann

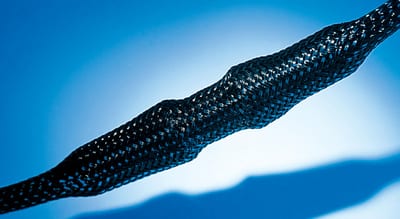

Braided sleeve HEGP30 roll a 50 m
170-13000
Hellermann

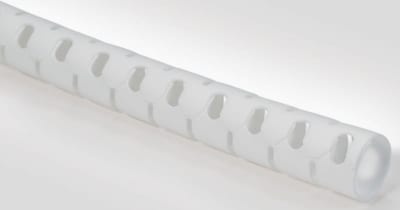

Spiral Wrap HWPP16 White 25 m
161-64207
Hellermann

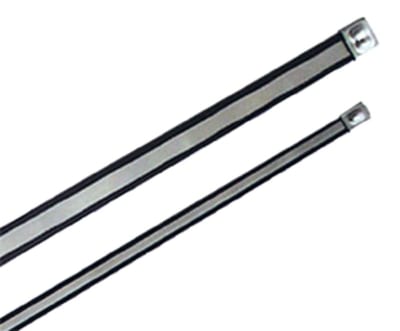

HellermannTyton MLT24SSC10 Stainless Steel Cable Tie 630 x 10 mm, Coated Black
