Hellermann

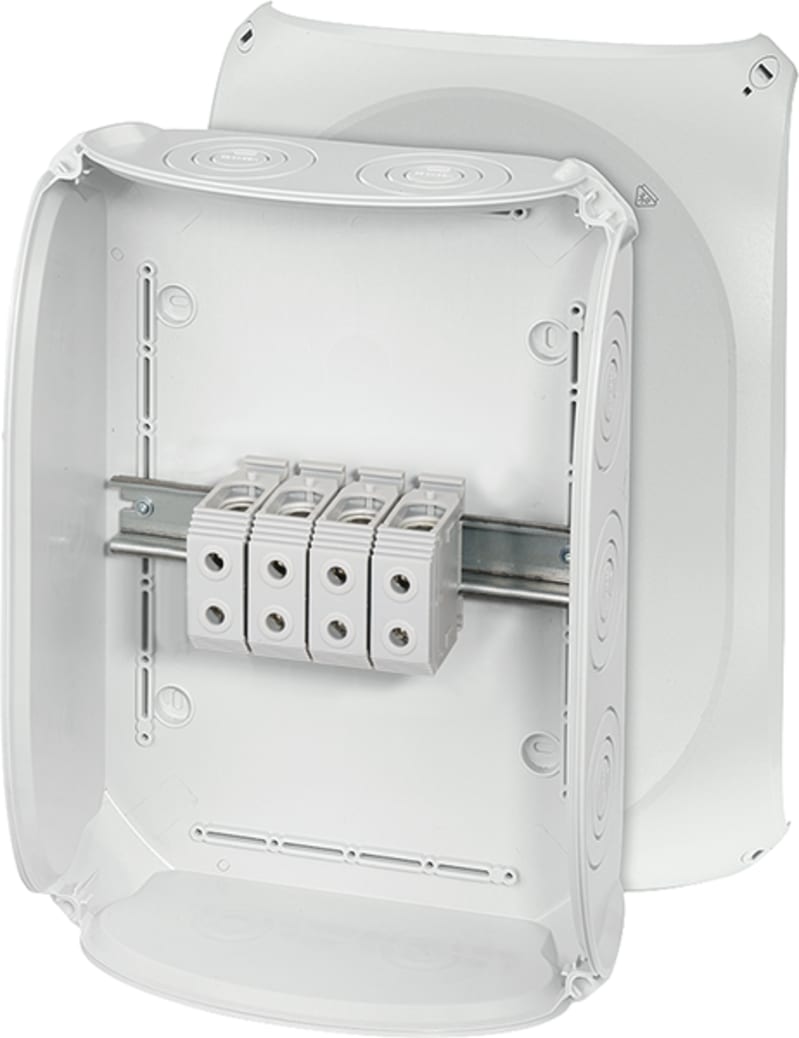

Junction box DK 5054 G 4X50MM²
Part numberDK 5054 GEAN / GTIN4012591125136HS code8536.90
Enclosures
Junction Boxes
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Hellermann DK 5054 G Hensel DK junction box IP 66 with knockouts.
Technical Specifications
- Manufacturer part number (MPN)
- DK 5054 G
- EAN / GTIN
- 4012591125136
- Sales unit
- pcs
- Conductor cross-section
- 50 mm²
- Model
- Mounting box
- RAL-number (similar)
- 7035
- Max. conductor cross section
- 50 mm²
- Equipped with
- Screwed terminal
- Shape
- Rectangular
- Mounting method
- Wall-/ceiling mounting
- Mounting in the soil
- No
- Mounting under water
- No
- Inlet from the rear
- Yes
- Length
- 355 mm
- Width
- 255 mm
- Depth
- 122 mm
- Connectable
- No
- Number of inlets
- 12
- Type of housing feed-through
- Preembossing
- Material
- Plastic
- Halogen free
- Yes
- Surface protection
- Untreated
- Colour
- Grey
- Degree of protection (IP)
- IP66
- Transparent cover
- No
- Cover attachment
- Screwed
- Castable
- No
- Casting compound included
- No
- Sealable
- Yes
- Rated insulation voltage Ui
- 690 V
- Circuit integrity
- None
- With screening
- No
- Weatherproof
- No
- Operating temperature
- -25–70 °C
- Explosion-tested version
- No
- For Ex-zone gas
- None
- For Ex-zone dust
- None
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4012591125136
- SAP 1200010914
- Code 8557628
Product Documentation
Document preview: Junction box DK 5054 G 4X50MM² — Specification sheet
More from Hellermann
Hellermann
Junction box DE 9326 2,5 mm² Hv
Hellermann
Heat Shrink Tubing TFN21 50.8/25.4 mm SV 30 m
309-61013
Hellermann
Cable Tie Mount CL 8 NAT 12.5 x 27.3
151-02258
Hellermann
Heat Shrink Tubing TFN31 18.0/6.0 mm Red 30 m
333-42024
Hellermann
Cable tie Blue MCT18R 100X2,5 m metallspon
111-01225
Hellermann

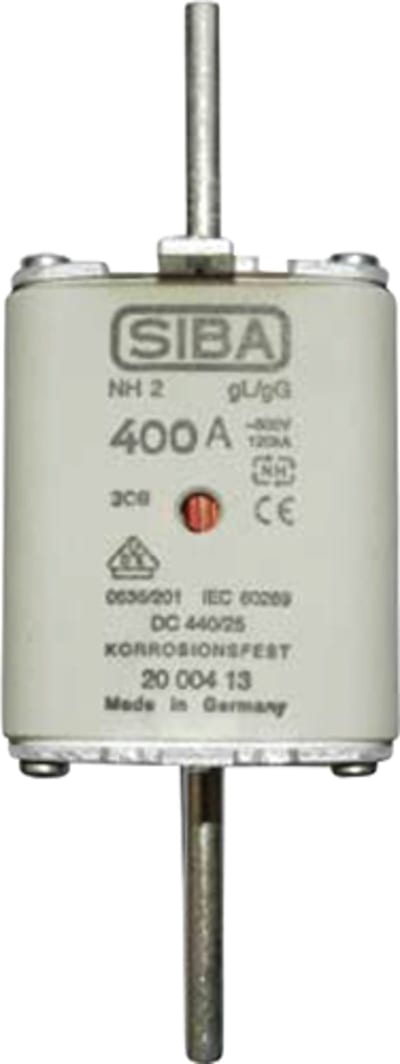

Fuse NH2 500V GG 400A
2000413.400
Hellermann

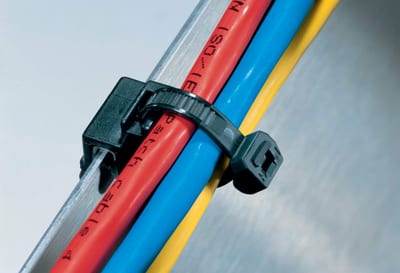

Kantklips m Cable tie T50ROSEC5A
150-40591
Hellermann

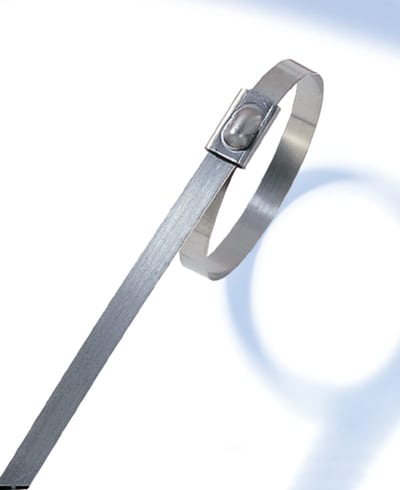

Steel band MBT20S 4,6X521MM
