Hellermann

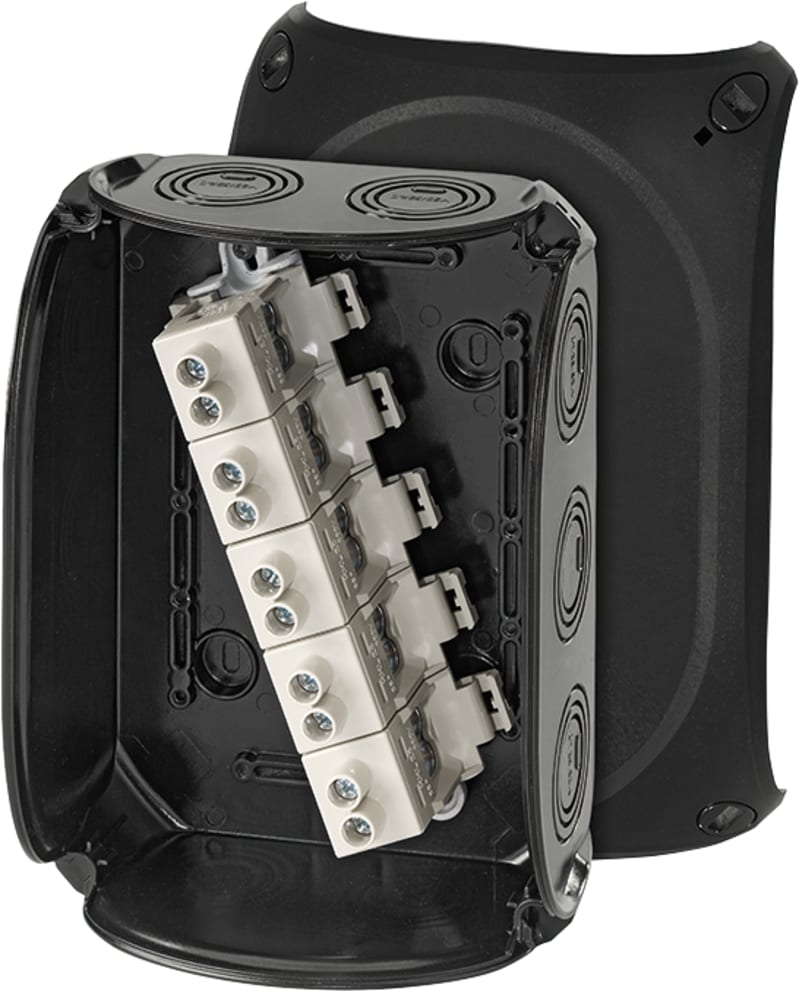

Junction BOX KF 1616 B 16 mm²
Part numberKF 1616 BEAN / GTIN4012591121961HS code8536.90
Enclosures
Junction Boxes
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Hellermann KF 1616 B 5 pole 16mm² black.
Technical Specifications
- Manufacturer part number (MPN)
- KF 1616 B
- EAN / GTIN
- 4012591121961
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Conductor cross-section
- 16 mm²
- Model
- Mounting box
- RAL-number (similar)
- 9011
- Max. conductor cross section
- 25 mm²
- Equipped with
- Screwed terminal
- Shape
- Rectangular
- Mounting method
- Wall-/ceiling mounting
- Mounting in the soil
- No
- Mounting under water
- No
- Inlet from the rear
- Yes
- Length
- 210 mm
- Width
- 155 mm
- Depth
- 92 mm
- Connectable
- No
- Number of inlets
- 10
- Type of housing feed-through
- Preembossing
- Material
- Plastic
- Halogen free
- Yes
- Surface protection
- Untreated
- Colour
- Black
- Degree of protection (IP)
- IP66/IP67
- Transparent cover
- No
- Cover attachment
- Screwed
- Castable
- No
- Casting compound included
- No
- Sealable
- Yes
- Rated insulation voltage Ui
- 690 V
- Circuit integrity
- None
- With screening
- No
- Weatherproof
- Yes
- Operating temperature
- -25–70 °C
- Explosion-tested version
- No
- For Ex-zone gas
- None
- For Ex-zone dust
- None
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4012591121961
- SAP 1000643401
- Code 8180508
Product Documentation
Document preview: Junction BOX KF 1616 B 16 mm² — Specification sheet
More from Hellermann
Hellermann

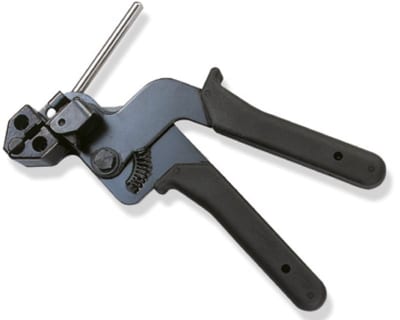

HellermannTyton KST-STG200 Manual Stainless Steel Cable Tie Tool 4.5-12.3 mm
KST-STG200-MET-BK/ML
Hellermann
Fuse KER. 5X20 250V T 3,15A
7000765.3,15
Hellermann
Fuse KER. 5X20 250V K 0,25A
7000733.0,25
Hellermann
Fuse KER. 10X38 500V GL 1A
5006308.1
Hellermann

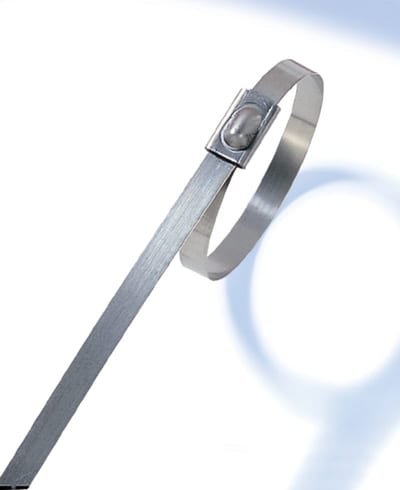

Steel band MBT27H 681X7,9mm
111-94279
Hellermann

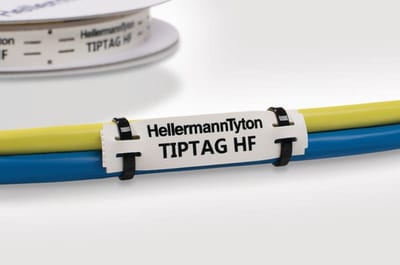

Cable Marker TipTag 15 x 105 Blue
