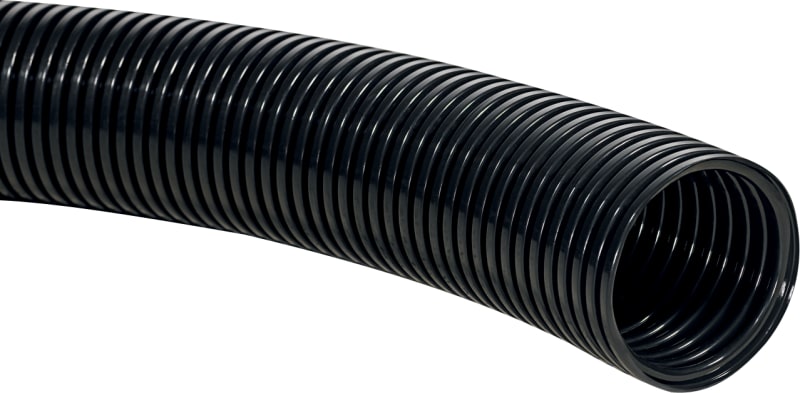

hose Corrugated Ø16mm 50M PA HF SV

Hellermann 166-11103 Corrugated hose HG-SW16 Ø16mm L=50mm Polyamide Halogen-free Black.

Manufacturer part number (MPN)

166-11103 EAN / GTIN: 4031026302263 Sales unit: m Package quantity: 50 m OEM part description: HG-SW16-PA6-BK Type: HG-SW16 Product family: HG-SW PA6 Standard Weight material: Polyamide 6 (PA6) Colour: Black (BK) minimum tensile strength: 220 N Length: 50 m Operating temperature: -40 °C to +120 °C Flammability rating: UL 94 V2 Halogen-free: Yes RoHS compliant: Yes ELV compliant (Article 4-2): Yes UL recognised (US and Canada): Yes Standards: ANSI/UL 1696, BS EN 61386-23, CSA -C22.2 No.227.3, IEC 61386 Hazardous goods: No Weight per unit: 0.0384 kg Packed in: reel Inner pack quantity: 50 Inner pack type: reel Country of origin: GB Customs tariff number: 39173200 ETIM 9.0 class: EC001175 Pitch Type: fine Bending Radius min. (R): 35 mm Diameter (D): 11.8 mm Inside ⌀ (ID): 11.8 mm NW ⌀: 12 mm Nominal ⌀: 16 mm Outside ⌀ (OD): 15.8 mm Weight: 38 g/m CE Certification: Yes EN61386 Classification: 24244066-110 Outer diameter: 15.8 mm Oil resistant: Yes UV resistant: Yes Inner diameter: 11.8 mm material quality: Polyamide 6 Compressive strength: 589 N Fire resistance according to UL94: V2 Bending radius, static: 35 mm Sheathing material: Not sheathed Flame accelerating: No Approved according to UR: Yes Approved according to CSA: No Tensile strength: 736 N Approved according to LUL/British Standard: No Approved according to Lloyd's Register TA: Yes Approved according to UTAC: No Nominal diameter: 16 mm Degree of protection (IP): IP66 Bending strength: Flexible Lengthwise slotted: No Closable (two-part): No Approved according to DIN EN 61386-23: Yes Approved according to NF F 16-101: No Bending radius, dynamic: 35 mm

HS Code

3917.32

• EAN 4031026302263
• SAP 1000445606
• Code 8544314
