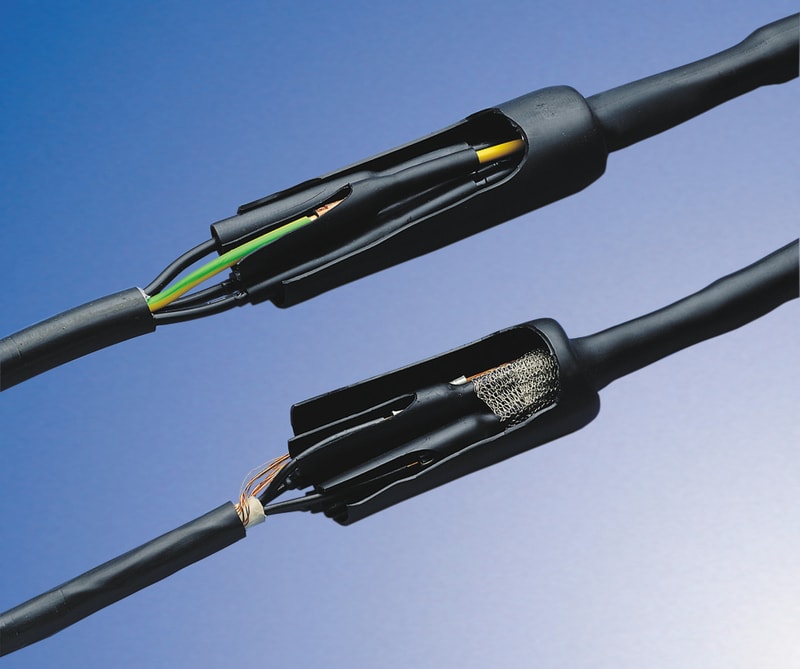

Hellermann LV-Kit 14 Utility Cable Joint 4x50-150 mm2 1 kV

The Hellermann Tyton LV-Kit 14 is a heat-shrink joint kit for four-core low-voltage cables sized 50-150 mm2 at rated voltage 0.6/1 kV. The set uses cross-linked polyolefin (PO-X) inner and outer sleeves with a shrink ratio up to 3:1 and covers concentric-shielded cables. Typical use is in utility distribution networks for straight joints between polymer-insulated cables.

Manufacturer part number (MPN)

475-00223

EAN / GTIN

7070604000181

Sales unit

pcs

OEM part description

LV-Kit 14-PO-X-BK

Type

LV-Kit 14

Material

Polyolefin, cross-linked (PO-X)

Colour

Black (BK)

Operating temperature

-35 °C to +75 °C

Flammability rating

ASTM D876 (outer layer only)

RoHS compliant

Yes

Package content

1 Set

Packed in

kit

Inner pack quantity

1

Inner pack type

set

Country of origin

DE

Customs tariff number

39173290

ETIM 9.0 class

EC001169

No. of Inner sleeves

4

No. of Wires

4

No. of outer sleeves

1

Shrink Ratio

up to 3:1

Longitudinal Change After Shrinkage

-10% max.

Wire Size Range (mm²)

50.0-150.0 mm

Dielectric Strength

10 kV/mm

Dielectric Strength test method

IEC 684 P2

Min. Shrink Temperature - °C

+135 °C

Model

Heat-shrink

Halogen free

No

Number of conductors

4

Insulating material

Plastic

Mining sector approval

No

With concentric shielding

Yes

Nominal cross section conductor

50–150 mm²

For connection of paper- with plastic insulated cables

No

Connection accessories included

None

Rated voltage U0/U (Um)

0.6/1 (1.2) kV

HS Code

3917.32

• EAN 7070604000181
• SAP 1000044771
• Code 8790593
