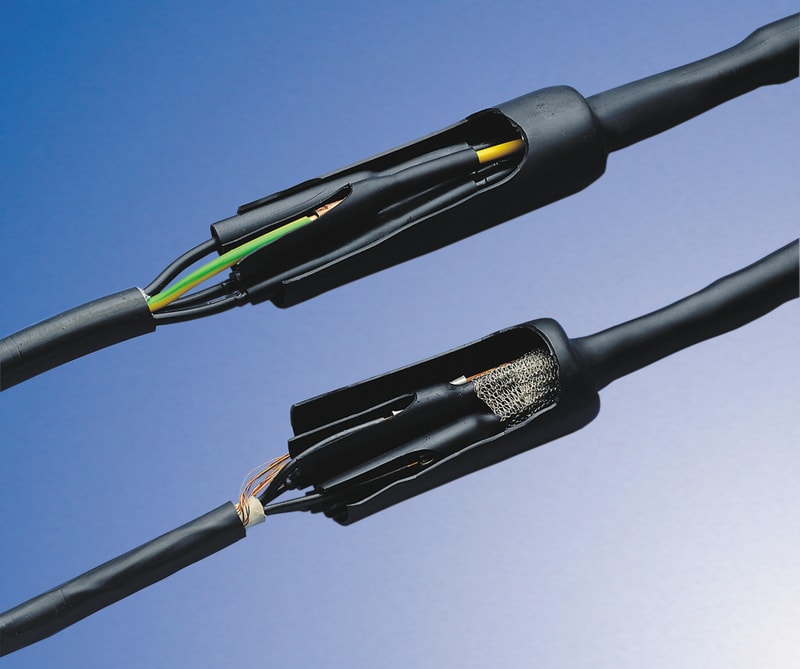

HellermannTyton LV-Kit 13 Cable Joint Kit 4x16-50 mm² 0.6/1 kV

HellermannTyton 475-00222 (LV-Kit 13-PO-X-BK) is a heat-shrink low-voltage joint kit for four-core cables with 16-50 mm² conductors, rated 0.6/1 kV (Um 1.2 kV). It includes 4 inner sleeves, 1 outer sleeve, 4 wire sleeves and supports up to 3:1 shrink ratio for straight through-joints on plastic-insulated distribution cables with concentric shielding. Cross-linked polyolefin (PO-X) in black, operating range -35 °C to +75 °C, dielectric strength 10 kV/mm, RoHS compliant, country of origin DE.

Manufacturer part number (MPN)

475-00222

EAN / GTIN

7070604000174

Sales unit

pcs

OEM part description

LV-Kit 13-PO-X-BK

Type

LV-Kit 13

Material

Polyolefin, cross-linked (PO-X)

Colour

Black (BK)

Operating temperature

-35 °C to +75 °C

Flammability rating

ASTM D876 (outer layer only)

RoHS compliant

Yes

Package content

1 Set

Packed in

kit

Inner pack quantity

1

Inner pack type

set

Country of origin

DE

Customs tariff number

39173290

ETIM 9.0 class

EC001169

No. of Inner sleeves

4

No. of Wires

4

No. of outer sleeves

1

Shrink Ratio

up to 3:1

Longitudinal Change After Shrinkage

-10% max.

Wire Size Range (mm²)

16.0-50.0 mm

Dielectric Strength

10 kV/mm

Dielectric Strength test method

IEC 684 P2

Min. Shrink Temperature - °C

+135 °C

Model

Heat-shrink

Halogen free

No

Number of conductors

4

Insulating material

Plastic

Mining sector approval

No

With concentric shielding

Yes

Nominal cross section conductor

16–50 mm²

For connection of paper- with plastic insulated cables

No

Connection accessories included

None

Rated voltage U0/U (Um)

0.6/1 (1.2) kV

HS Code

3917.32

• EAN 7070604000174
• SAP 1000023327
• Code 8201633
