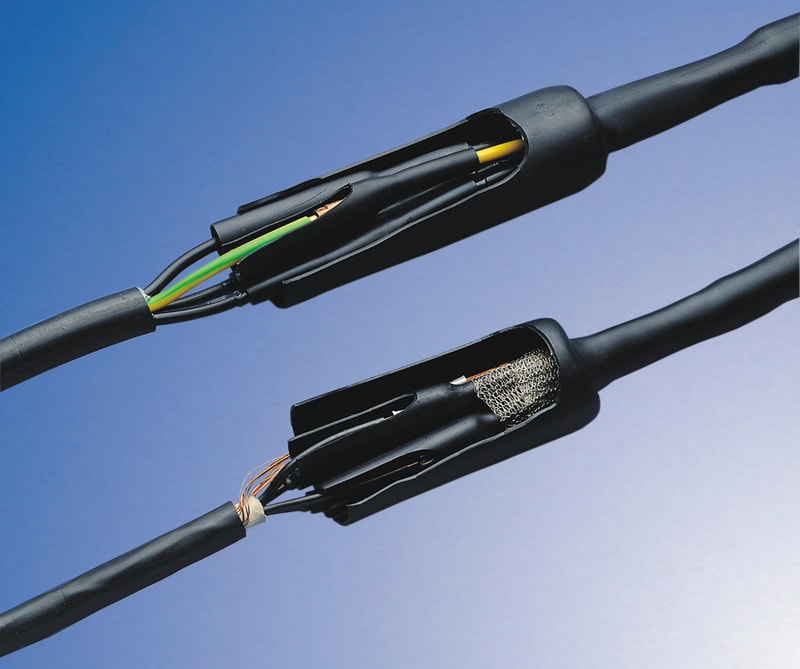

Hellermann LV-Kit 12 Heat-Shrink Cable Splice 4x10-25 mm² 1 kV Black 475-00221

Hellermann 475-00221 (LV-Kit 12-PO-X-BK) is a heat-shrink low-voltage cable joint kit for 4-core paper- or plastic-insulated cables with 10-25 mm² conductor cross-section, rated 0.6/1 (1.2) kV. The set uses cross-linked polyolefin (PO-X) sleeves with a shrink ratio up to 3:1 and includes four inner sleeves plus one outer sleeve to reinstate insulation, concentric screen path and mechanical protection across the splice. Operating range is -35 °C to +75 °C.

Manufacturer part number (MPN)

475-00221

EAN / GTIN

7070604000167

Sales unit

pcs

OEM part description

LV-Kit 12-PO-X-BK

Type

LV-Kit 12

Material

Polyolefin, cross-linked (PO-X)

Colour

Black (BK)

Operating temperature

-35 °C to +75 °C

Flammability rating

ASTM D876 (outer layer only)

RoHS compliant

Yes

Package content

1 Set

Packed in

kit

Inner pack quantity

1

Inner pack type

set

Country of origin

DE

Customs tariff number

39173290

ETIM 9.0 class

EC001169

No. of Inner sleeves

4

No. of Wires

4

No. of outer sleeves

1

Shrink Ratio

up to 3:1

Longitudinal Change After Shrinkage

-10% max.

Wire Size Range (mm²)

10.0-25.0 mm

Dielectric Strength

10 kV/mm

Dielectric Strength test method

IEC 684 P2

Min. Shrink Temperature - °C

+135 °C

Model

Heat-shrink

Halogen free

No

Number of conductors

4

Insulating material

Plastic

Mining sector approval

No

With concentric shielding

Yes

Nominal cross section conductor

10–25 mm²

For connection of paper- with plastic insulated cables

No

Connection accessories included

None

Rated voltage U0/U (Um)

0.6/1 (1.2) kV

HS Code

3917.32

• EAN 7070604000167
• SAP 1000023354
• Code 8201698
