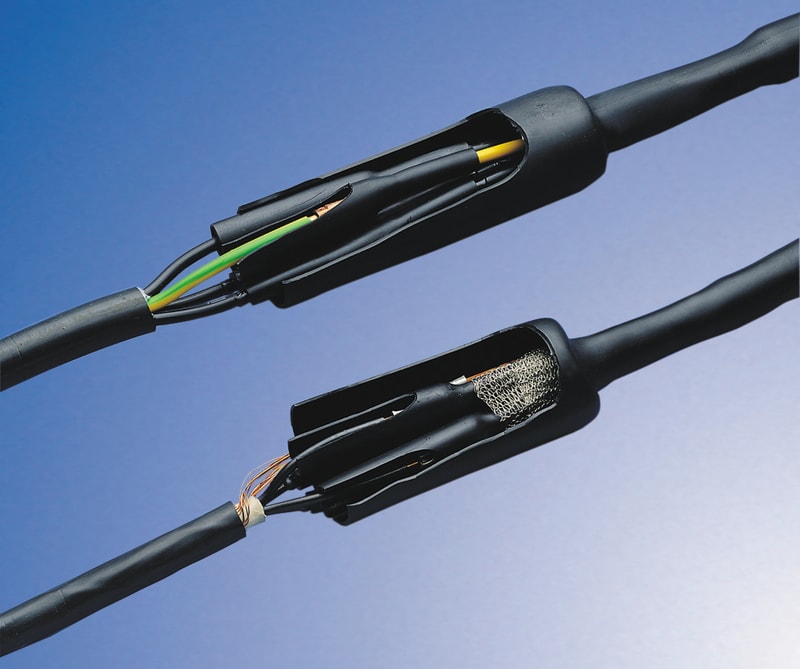

Hellermann LV-Kit 11 heat-shrink joint kit 4x1.5-10 mm2 1 kV

The Hellermann LV-Kit 11 is a low-voltage heat-shrink joint kit for splicing four-core cables with conductor cross-sections from 1.5 to 10 mm2 at rated voltages up to 0.6/1 kV. The set uses cross-linked polyolefin (PO-X) sleeves with a shrink ratio up to 3:1 for a moisture-tight, mechanically robust splice. Typical applications include distribution feeders, service connections and repairs in underground and building installations.

Manufacturer part number (MPN)

475-00220

EAN / GTIN

7070604000150

Sales unit

pcs

OEM part description

LV-Kit 11-PO-X-BK

Type

LV-Kit 11

Material

Polyolefin, cross-linked (PO-X)

Colour

Black (BK)

Operating temperature

-35 °C to +75 °C

Flammability rating

ASTM D876 (outer layer only)

RoHS compliant

Yes

Package content

1 Set

Packed in

kit

Inner pack quantity

1

Inner pack type

set

Country of origin

DE

Customs tariff number

39173290

ETIM 9.0 class

EC001169

No. of Inner sleeves

4

No. of Wires

4

No. of outer sleeves

1

Shrink Ratio

up to 3:1

Longitudinal Change After Shrinkage

-10% max.

Wire Size Range (mm²)

1.5-10.0 mm

Dielectric Strength

10 kV/mm

Dielectric Strength test method

IEC 684 P2

Min. Shrink Temperature - °C

+135 °C

Model

Heat-shrink

Halogen free

No

Number of conductors

4

Insulating material

Plastic

Mining sector approval

No

With concentric shielding

Yes

Nominal cross section conductor

1.5–10 mm²

For connection of paper- with plastic insulated cables

No

Connection accessories included

None

Rated voltage U0/U (Um)

0.6/1 (1.2) kV

HS Code

3917.32

• EAN 7070604000150
• SAP 1000071062
• Code 8561426
