Hellermann

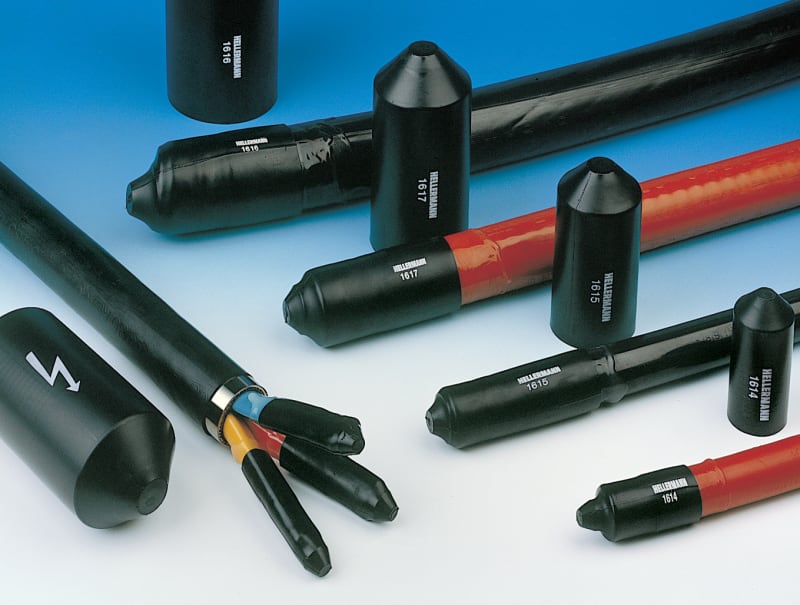

End Cap m adhesive for 100/47mm
Part number416-16098EAN / GTIN5022660646690HS code3917.32
Tools & Workshop Consumables
Chemicals & Consumables
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Hellermann 416-16098 End Cap m adhesive for 100/47mm.
Technical Specifications
- Manufacturer part number (MPN)
- 416-16098
- EAN / GTIN
- 5022660646690
- Sales unit
- pcs
- Package quantity
- 30 pcs
- OEM part description
- 1616-1-B5W2-PO-X-BK
- Type
- 1616-1-B5W2
- Product family
- Helashrink 1600 Series, low voltage
- Material
- Polyolefin, cross-linked (PO-X)
- Colour
- Black (BK)
- Bundle diameter
- 48.0-80.0 mm
- Supplied diameter (min.)
- 105.0 mm
- Recovered diameter (max.)
- 45.0 mm
- Pre-printed
- Yes
- Operating temperature
- -55 °C to +80 °C
- Flammability rating
- ASTM D635
- RoHS compliant
- Yes
- Weight per unit
- 0.101 kg
- Packed in
- carton
- Inner pack quantity
- 30
- Inner pack type
- bag
- Country of origin
- CN
- Customs tariff number
- 39173290
- ETIM 9.0 class
- EC000218
- UNSPSC code
- 39121721
- Marking Text
- Hellermann
- Max Voltage
- 600 V
- Shrink Ratio
- up to 3:1
- ⌀H max. b
- 45.0 mm
- ⌀H min. a
- 105.0 mm
- Flexibility
- semi rigid
- For Object Outside Diameter
- 57-93 mm
- HW ± 20 %
- 4.0 mm
- P ± 10 %
- 135.0 mm
- W ± 20 %
- 4.0 mm
- Adhesive
- W2
- Dielectric Strength
- 15 kV/mm
- Model
- Medium-walled
- Halogen free
- No
- Wall thickness after shrinking
- 4 mm
- Total length after shrink
- 135 mm
- Inner diameter before heat-shrink
- 105 mm
- Inner diameter after heat-shrink
- 45 mm
- Nominal cross section
- 45–105 mm²
- Transparent
- No
- Printable
- No
- With inner glue
- Yes
- Shrink rate
- 3:1
- UL approval
- No
Standards & Compliance
- HS Code
- 3917.32
Cross References
- EAN 5022660646690
- SAP 1200000227
- Code 8372734
Product Documentation
Document preview: End Cap m adhesive for 100/47mm (416-16098) — Specification sheet
More from Hellermann
Hellermann
Fuse Ceramic 6X32MM 500V T 0,5A
7006565.0,5
Hellermann

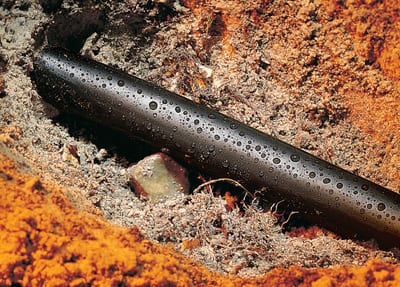

Heat Shrink Tubing HA47 51/16 mm Black 1 m
321-50510
Hellermann

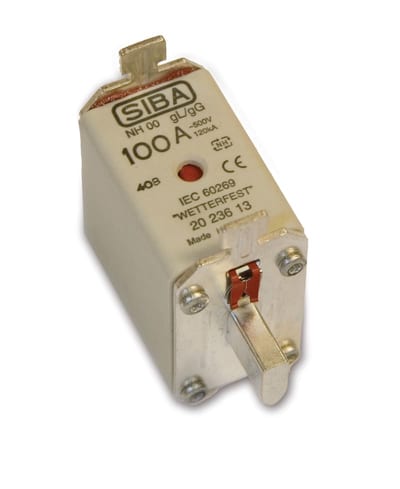

Hellermann NH00 500 V gG 100 A Weather-Resistant Fuse Link
2023613.100
Hellermann
Fuse NH3 500V GG 400A
2000513.400
Hellermann

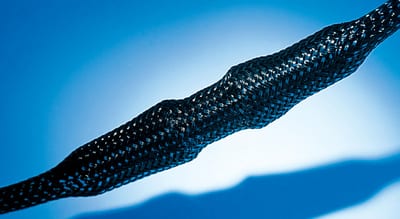

Braided sleeve HEGP40 roll a 50 m
170-14000
Hellermann

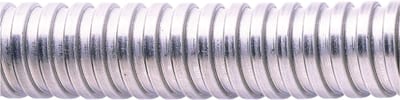

Tubing stainless SSC32 25 m
166-30205
Hellermann

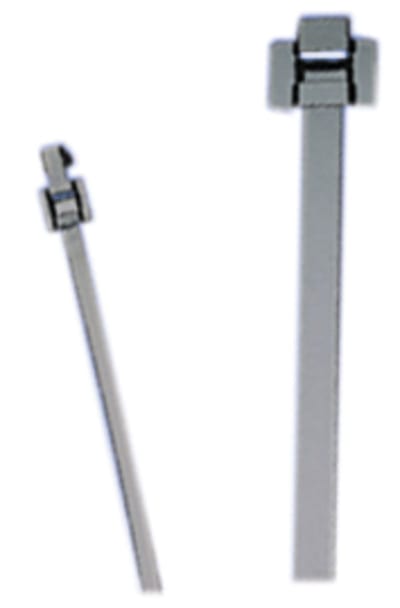

HellermannTyton MLT8SS10 Stainless Steel Cable Tie 230x10 mm SS316L
111-95080
Hellermann

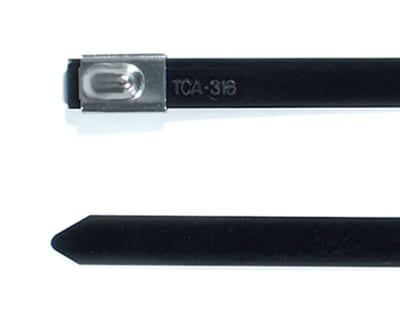

Cable Tie Steel MBT14XH 362 x 12.3 mm
