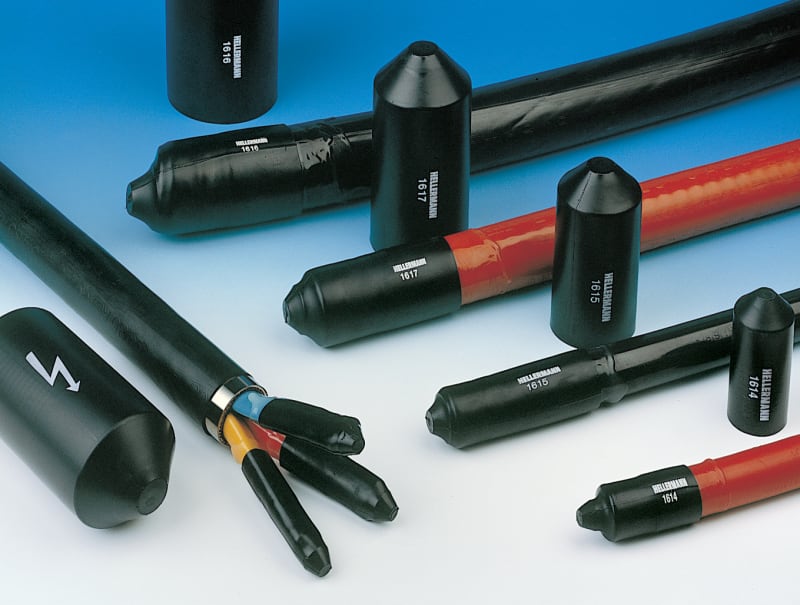

End Cap m adhesive for 40/16mm

Hellermann 416-14500 End Cap m adhesive for 40/16mm.

Manufacturer part number (MPN)

416-14500

EAN / GTIN

4031026505046

Sales unit

pcs

Package quantity

300 pcs

OEM part description

1614-1-PO-X-BK

Type

1614-1

Product family

Helashrink 1600 Series, low voltage

Material

Polyolefin, cross-linked (PO-X)

Colour

Black (BK)

Bundle diameter

16.0-32.0 mm

Supplied diameter (min.)

40.0 mm

Recovered diameter (max.)

15.0 mm

Operating temperature

-55 °C to +80 °C

Flammability rating

ASTM D635

RoHS compliant

Yes

Weight per unit

0.019 kg

Packed in

carton

Inner pack quantity

300

Inner pack type

bag

Country of origin

CN

Customs tariff number

39173290

ETIM 9.0 class

EC000218

UNSPSC code

39121721

Max Voltage

600 V

Shrink Ratio

up to 3:1

⌀H max. b

15.0 mm

⌀H min. a

40.0 mm

Flexibility

semi rigid

For Object Outside Diameter

20-35 mm

HW ± 20 %

3.3 mm

P ± 10 %

75.0 mm

W ± 20 %

3.3 mm

Adhesive

W2

Dielectric Strength

15 kV/mm

Min. Shrink Temperature - °C

+135 °C

Shelf Life

5 years

Model

Medium-walled

Halogen free

No

Wall thickness after shrinking

3.3 mm

Total length after shrink

75 mm

Inner diameter before heat-shrink

40 mm

Inner diameter after heat-shrink

15 mm

Nominal cross section

200–800 mm²

Transparent

No

Printable

No

With inner glue

Yes

Shrink rate

3:1

UL approval

No

HS Code

3917.32

• EAN 4031026505046
• SAP 1200000238
• Code 8372777
