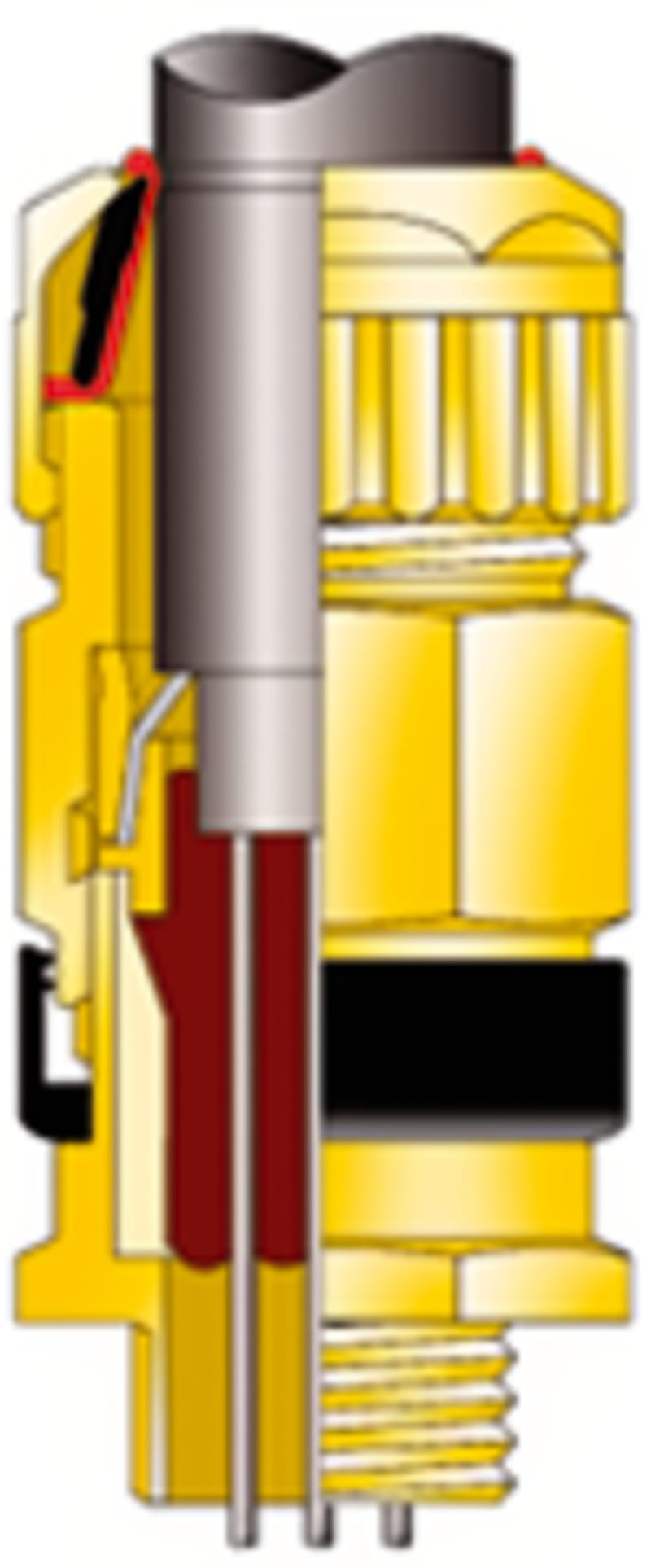

Hawke ICG653/UNIV Ex d / Ex e barrier cable gland, size O, M20, brass, cable Ø9.5–16 mm
Pricing
Request a quote
We reply within 24 hours
Product Description
Hawke ICG653/UNIV Ex d / Ex e barrier cable gland, size O, M20, brass, cable Ø9.5–16 mm (ICG653/UNIV/O). Ex marking Ex II 2GD Ex db IIC Gb; Ex eb IIC Gb; Ex nR IIC Gc; Ex tb IIIC Db; Class I Div 1 ABCD; Class II Div 2 EFG and Class III; Class I, Zone I, AEx db IIC Gb; AEx eb IIC Gb; Zone 21, AEx tb IIIC Db. Ingress protection IP66, IP67, IP68 (30 metres for 7 days, special instruction apply); IP69 to IEC/EN 60529; NEMA 4X; Deluge Protection to DTS01. Operating temperature -60°C to +80 °C.
Technical Specifications
- Manufacturer part number (MPN)
- ICG653/UNIV/O
- EAN / GTIN
- 7070923001753
- Sales unit
- pcs
- Thread size
- M20
- Product type
- Ex d / Ex e barrier cable gland
- Series
- Hawke ICG653/UNIV
- Gland size
- O
- Cable outer diameter range
- 9.5–16 mm
- Material
- Brass
- Hazardous area application
- Hazardous Areas Zone 1, Zone 21, Zone 2, Zone 22
- Ingress protection
- IP66, IP67, IP68 (30 metres for 7 days, special instruction apply); IP69 to IEC/EN 60529; NEMA 4X; Deluge Protection to DTS01
- Operating temperature
- -60°C to +80 °C
- Standards
- IEC/EN 62444 (Anchorage Type D); IEC/EN 60079-0, 1, 7, 15, 31; CSA 60079-0, 1, 7, 31; CSA C22.2 No. 0-10, CSA C22.2 No. 174-18; UL2225; UL1203; UL 514B
- Product family
- Cable Glands for Group II Hazardous Areas
- Ex marking
- Ex II 2GD Ex db IIC Gb; Ex eb IIC Gb; Ex nR IIC Gc; Ex tb IIIC Db; Class I Div 1 ABCD; Class II Div 2 EFG and Class III; Class I, Zone I, AEx db IIC Gb; AEx eb IIC Gb; Zone 21, AEx tb IIIC Db
- Impact rating
- IK10 to IEC 62262
- ATEX certificate
- CML 18ATEX1268X / CML 19ATEX4507 (Ex nR)
- CCC certificate
- 2020312313000317
- cCSAus certificate
- 1024328
- DNV certificate
- TAE0000BS
- EAC certificate
- KZ 7100841.01.01.03125
- EQM certificate
- 20-11-27224/Q20-11-000979/NB0007
- IECEx certificate
- CML 18.0131X / CML 21.0012X (Ex nR)
- Inmetro certificate
- IEx 14.0272X
- KCs certificate
- 17-KA4BO-0159X to 0167X
- PESO certificate
- P450038
- SONCAP certificate
- LCOGB049552-0500
- UKEx certificate
- CML 21UKEX1132X / CML 21UKEX4133X (Ex nR)
- Thread type
- Metric
- Nominal thread size metric/PG
- 20
- Material quality
- Brass
- Degree of protection (IP)
- IP68
- Country of origin
- United Kingdom
Standards & Compliance
- HS Code
- 7419.99
Cross References
- EAN 7070923001753
- SAP 1000013303
- Code 8104103
Product Documentation
More from Hawke
Hawke
Hawke 476 Ex d / Ex e thread adapter, M25 to M20, brass
476/R-25-20BR
Hawke
Hawke 476 Ex d / Ex e thread adapter, M40 to M32, brass
476/R-40-32BR
Hawke
Hawke 501/453/UNIV Ex d / Ex e barrier cable gland, size O, M20, brass
501/453/U-OM20BR
Hawke
Hawke Locknut, size C, M32, brass
LN-CM32BR
Hawke
Hawke Nylon sealing washer, size C, M32, nylon
NW-CM32
Hawke
Hawke 476 Ex d / Ex e thread adapter, M25 to M20, nickel-plated brass
476/R-25-20NP
Hawke
Hawke 476 Ex d / Ex e thread adapter, M32 to M25, brass
476/R-32-25BR
Hawke
Hawke 501/453/UNIV Ex d / Ex e barrier cable gland, size OS, M20, brass
501/453/U-OSM20BR
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy ICG653/UNIV/O?
- ICG653/UNIV/O can be ordered from cballast.com as a Hawke catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Hawke product?
- The manufacturer part number is ICG653/UNIV/O.
- What is the HS code for ICG653/UNIV/O?
- The customs tariff (HS) code for ICG653/UNIV/O is 7419.99.
- Who manufactures ICG653/UNIV/O?
- ICG653/UNIV/O is a Hawke product in the Electrical Components range.
- Is a datasheet available for ICG653/UNIV/O?
- Yes — the ICG653/UNIV/O datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for ICG653/UNIV/O?
- The minimum order quantity is 1.
- Is ICG653/UNIV/O available?
- Yes — ICG653/UNIV/O is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
