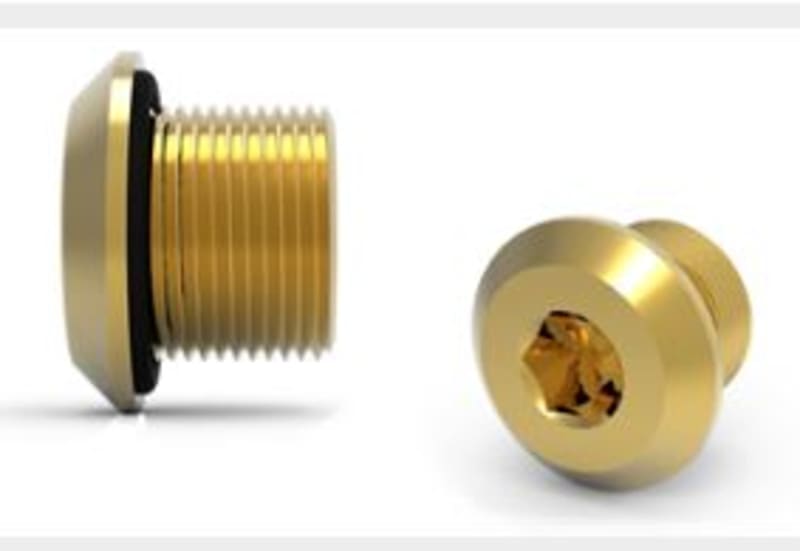

Hawke 487 Ex d / Ex e dome head stopping plug, M63, nickel-plated brass
Pricing
Request a quote
We reply within 24 hours
Product Description
Hawke 487 Ex d / Ex e dome head stopping plug, M63, nickel-plated brass (487-M63NP). Manufacturer designation: Exde Dome Head m/O-Ring. Ex marking Ex II 2GD Ex db eb IIC Gb; Ex tb IIIC Db; Ex I M2 Ex db eb I Mb; Class 1 Zone 1 AEx db eb IIC Gb; Zone 21 AEx tb IIIC Db. Ingress protection IP66, IP67 to IEC/EN 60529. Operating temperature -60°C to +80°C (with Nitrile O-Ring); -60°C to +160°C (with Silicone O-Ring).
Technical Specifications
- Manufacturer part number (MPN)
- 487-M63NP
- EAN / GTIN
- 7071000090837
- Sales unit
- pcs
- Product type
- Ex d / Ex e dome head stopping plug
- Series
- Hawke 487
- Entry thread
- M63
- Material
- Nickel-plated brass
- Hazardous area application
- Hazardous Areas Zone 1, Zone 21, Zone 2, Zone 22 and Mining Applications
- Ingress protection
- IP66, IP67 to IEC/EN 60529
- Operating temperature
- -60°C to +80°C (with Nitrile O-Ring); -60°C to +160°C (with Silicone O-Ring)
- Standards
- IEC/EN/CSA/UL 60079-0, 1, 7, 31; CSA C22.2 No 0-10; IEC 60529
- Product family
- Fittings for Hazardous Areas
- Ex marking
- Ex II 2GD Ex db eb IIC Gb; Ex tb IIIC Db; Ex I M2 Ex db eb I Mb; Class 1 Zone 1 AEx db eb IIC Gb; Zone 21 AEx tb IIIC Db
- ATEX certificate
- Baseefa 11ATEX0149X
- CCC certificate
- 2020312313000329
- cCSAus certificate
- 2700364
- EAC certificate
- No EA3C RU C-GB.HA91.B.00265/21
- EQM certificate
- 20-11-27224/Q20-11-000979/NB0007
- IECEx certificate
- BAS11.0071X
- Inmetro certificate
- IEx 15.0208X
- SONCAP certificate
- LCOGB049552-0500
- UKEx certificate
- BAS21UKEX0058X
- Suitable for thread type cable screw gland
- Metric
- Suitable for nominal thread metric/PG
- 63
- Country of origin
- United Kingdom
Standards & Compliance
- HS Code
- 7419.80
Cross References
- EAN 7071000090837
- SAP 1200820240
- Code 84003813
Product Documentation
