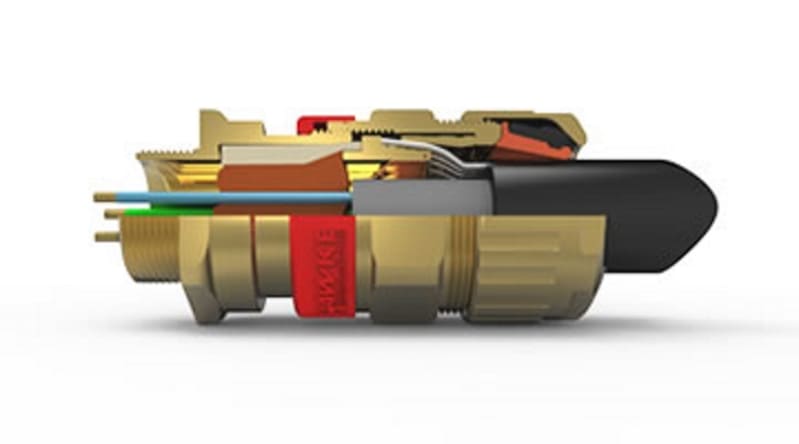

Hawke ICG653/UNIV Ex d / Ex e barrier cable gland, size O, M20, 316 stainless steel
Pricing
Request a quote
We reply within 24 hours
Product Description
Hawke ICG653/UNIV Ex d / Ex e barrier cable gland, size O, M20, 316 stainless steel (ICG653/UNIV-OM20SS). Manufacturer designation: ICG653/UNIV-OM20SS. Ex marking Ex II 2GD Ex db IIC Gb; Ex eb IIC Gb; Ex nR IIC Gc; Ex tb IIIC Db; Class I Div 1 ABCD; Class II Div 2 EFG and Class III; Class I, Zone I, AEx db IIC Gb; AEx eb IIC Gb; Zone 21, AEx tb IIIC Db. Ingress protection IP66, IP67, IP68 (30 metres for 7 days, special instruction apply); IP69 to IEC/EN 60529; NEMA 4X; Deluge Protection to DTS01. Operating temperature -60°C to +80 °C.
Technical Specifications
- Manufacturer part number (MPN)
- ICG653/UNIV-OM20SS
- EAN / GTIN
- 7071000090165
- Sales unit
- pcs
- Product type
- Ex d / Ex e barrier cable gland
- Series
- Hawke ICG653/UNIV
- Gland size
- O
- Entry thread
- M20
- Material
- 316 stainless steel
- Hazardous area application
- Hazardous Areas Zone 1, Zone 21, Zone 2, Zone 22
- Ingress protection
- IP66, IP67, IP68 (30 metres for 7 days, special instruction apply); IP69 to IEC/EN 60529; NEMA 4X; Deluge Protection to DTS01
- Operating temperature
- -60°C to +80 °C
- Standards
- IEC/EN 62444 (Anchorage Type D); IEC/EN 60079-0, 1, 7, 15, 31; CSA 60079-0, 1, 7, 31; CSA C22.2 No. 0-10, CSA C22.2 No. 174-18; UL2225; UL1203; UL 514B
- Product family
- Cable Glands for Group II Hazardous Areas
- Ex marking
- Ex II 2GD Ex db IIC Gb; Ex eb IIC Gb; Ex nR IIC Gc; Ex tb IIIC Db; Class I Div 1 ABCD; Class II Div 2 EFG and Class III; Class I, Zone I, AEx db IIC Gb; AEx eb IIC Gb; Zone 21, AEx tb IIIC Db
- Impact rating
- IK10 to IEC 62262
- ATEX certificate
- CML 18ATEX1268X / CML 19ATEX4507 (Ex nR)
- CCC certificate
- 2020312313000317
- cCSAus certificate
- 1024328
- DNV certificate
- TAE0000BS
- EAC certificate
- KZ 7100841.01.01.03125
- EQM certificate
- 20-11-27224/Q20-11-000979/NB0007
- IECEx certificate
- CML 18.0131X / CML 21.0012X (Ex nR)
- Inmetro certificate
- IEx 14.0272X
- KCs certificate
- 17-KA4BO-0159X to 0167X
- PESO certificate
- P450038
- SONCAP certificate
- LCOGB049552-0500
- UKEx certificate
- CML 21UKEX1132X / CML 21UKEX4133X (Ex nR)
- Thread type
- Metric
- Nominal thread size metric/PG
- 20
- Material quality
- Brass
- Degree of protection (IP)
- IP68
- Colour
- Brass
- Country of origin
- United Kingdom
Standards & Compliance
- HS Code
- 7419.99
Cross References
- EAN 7071000090165
- SAP 1200313175
- Code 82371768
Product Documentation
More from Hawke
Hawke

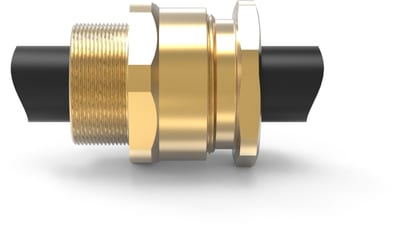

Hawke A2E Ex e cable gland, size C, M32, nickel-plated brass, cable Ø14.5–26.4 mm
