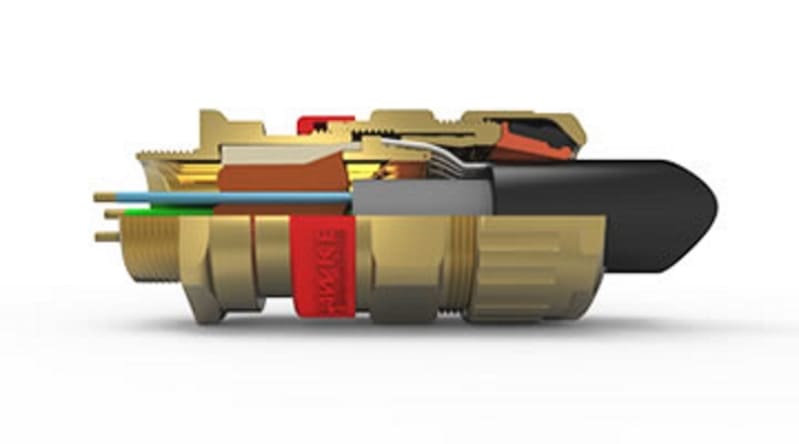

Hawke ICG653/UNIV Ex d / Ex e barrier cable gland, size D, M50, nickel-plated brass
Pricing
Request a quote
We reply within 24 hours
Product Description
Hawke ICG653/UNIV Ex d / Ex e barrier cable gland, size D, M50, nickel-plated brass (ICG653/U/EP-DM50NP). Manufacturer designation: Exde (37,1-41,7 / 36,0-52,6) with potting compound. Ex marking Ex II 2GD Ex db IIC Gb; Ex eb IIC Gb; Ex nR IIC Gc; Ex tb IIIC Db; Class I Div 1 ABCD; Class II Div 2 EFG and Class III; Class I, Zone I, AEx db IIC Gb; AEx eb IIC Gb; Zone 21, AEx tb IIIC Db. Ingress protection IP66, IP67, IP68 (30 metres for 7 days, special instruction apply); IP69 to IEC/EN 60529; NEMA 4X; Deluge Protection to DTS01. Operating temperature -60°C to +80 °C.
Technical Specifications
- Manufacturer part number (MPN)
- ICG653/U/EP-DM50NP
- EAN / GTIN
- 7071000092015
- Sales unit
- pcs
- Product type
- Ex d / Ex e barrier cable gland
- Series
- Hawke ICG653/UNIV
- Gland size
- D
- Entry thread
- M50
- Cable inner sheath range
- 37.1–41.7 mm
- Cable outer sheath range
- 36.0–52.6 mm
- Material
- Nickel-plated brass
- Sealing
- Epoxy potting compound
- Hazardous area application
- Hazardous Areas Zone 1, Zone 21, Zone 2, Zone 22
- Ingress protection
- IP66, IP67, IP68 (30 metres for 7 days, special instruction apply); IP69 to IEC/EN 60529; NEMA 4X; Deluge Protection to DTS01
- Operating temperature
- -60°C to +80 °C
- Standards
- IEC/EN 62444 (Anchorage Type D); IEC/EN 60079-0, 1, 7, 15, 31; CSA 60079-0, 1, 7, 31; CSA C22.2 No. 0-10, CSA C22.2 No. 174-18; UL2225; UL1203; UL 514B
- Product family
- Cable Glands for Group II Hazardous Areas
- Ex marking
- Ex II 2GD Ex db IIC Gb; Ex eb IIC Gb; Ex nR IIC Gc; Ex tb IIIC Db; Class I Div 1 ABCD; Class II Div 2 EFG and Class III; Class I, Zone I, AEx db IIC Gb; AEx eb IIC Gb; Zone 21, AEx tb IIIC Db
- Impact rating
- IK10 to IEC 62262
- ATEX certificate
- CML 18ATEX1268X / CML 19ATEX4507 (Ex nR)
- CCC certificate
- 2020312313000317
- cCSAus certificate
- 1024328
- DNV certificate
- TAE0000BS
- EAC certificate
- KZ 7100841.01.01.03125
- EQM certificate
- 20-11-27224/Q20-11-000979/NB0007
- IECEx certificate
- CML 18.0131X / CML 21.0012X (Ex nR)
- Inmetro certificate
- IEx 14.0272X
- KCs certificate
- 17-KA4BO-0159X to 0167X
- PESO certificate
- P450038
- SONCAP certificate
- LCOGB049552-0500
- UKEx certificate
- CML 21UKEX1132X / CML 21UKEX4133X (Ex nR)
- Thread type
- Metric
- Nominal thread size metric/PG
- 50
- Pitch thread
- 1.5 mm
- Thread length
- 15 mm
- Wrench width
- 65 mm
- Hexagon angular dimension
- 70.8 mm
- Material quality
- Brass
- Surface protection
- Nickel-plated
- Halogen free
- Yes
- Glass-fibre reinforced
- No
- Shock resistant
- Yes
- Bend radius protection/trumpet flare
- Yes
- With locknut
- No
- Snapping in opening
- Yes
- Flat cable coupling
- No
- With strain relief
- No
- Type of sealing
- Sealing ring
- Separable screw gland
- No
- Explosion-tested version
- Yes
- For Ex-zone gas
- 1, 2
- For Ex-zone dust
- 21, 22
- For armoured cable
- Yes
- Country of origin
- United Kingdom
Standards & Compliance
- HS Code
- 7419.80
Cross References
- EAN 7071000092015
- SAP 1200820205
- Code 84003528
