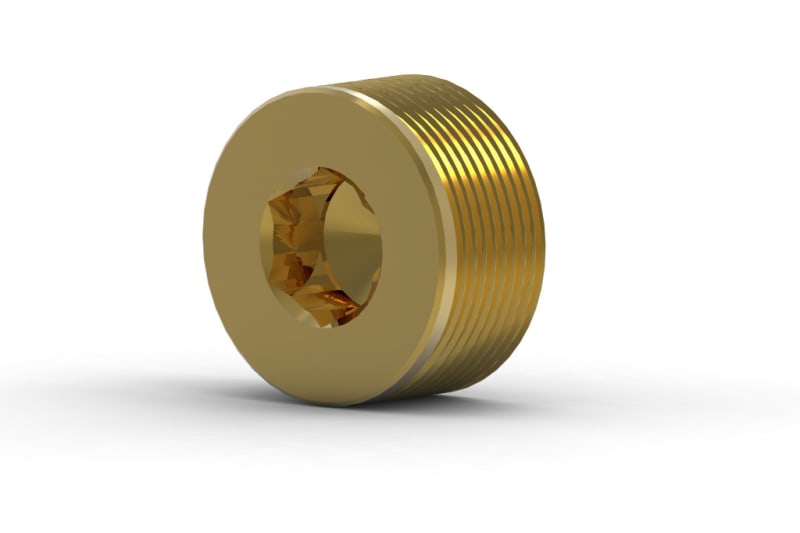

Hawke 475 Ex d tamperproof stopping plug, M16, nickel-plated brass
Pricing
Request a quote
We reply within 24 hours
Product Description
Hawke 475 Ex d tamperproof stopping plug, M16, nickel-plated brass (475-M16NP). Manufacturer designation: 475/M16 Forn. brass plug Exd Hawke. Ex marking Ex II 2GD Ex db IIC Gb; Ex tb IIIC Db; Ex I M2 Ex db I Mb; CI ABCD; CII EFG CIII; C1 Zn1 AEx d IIC Gb; AEx tb IIIC Db. Ingress protection IP66 to IEC/EN 60529. Operating temperature -60°C to +160 °C.
Technical Specifications
- Manufacturer part number (MPN)
- 475-M16NP
- EAN / GTIN
- 7070923016962
- Sales unit
- pcs
- Product type
- Ex d tamperproof stopping plug
- Series
- Hawke 475
- Entry thread
- M16
- Material
- Nickel-plated brass
- Hazardous area application
- Hazardous Areas Zone 1, Zone 21, Zone 2, Zone 22 and Mining Applications
- Ingress protection
- IP66 to IEC/EN 60529
- Operating temperature
- -60°C to +160 °C
- Standards
- IEC/EN/CSA/UL 60079-0, 7, 31; CSA C22.2 No. 25-1966, 30-M1986, 45-M1981, 94-M91, 18.3.-12; UL 514B
- Product family
- Fittings for Hazardous Areas
- Ex marking
- Ex II 2GD Ex db IIC Gb; Ex tb IIIC Db; Ex I M2 Ex db I Mb; CI ABCD; CII EFG CIII; C1 Zn1 AEx d IIC Gb; AEx tb IIIC Db
- ATEX certificate
- Baseefa 10ATEX0262X
- cCSAus certificate
- 1731876
- EAC certificate
- No EA3C RU C-GB.HA91.B.00265/21
- EQM certificate
- 20-11-27224/Q20-11-000979/NB0007
- IECEx certificate
- BAS10.0120X
- Inmetro certificate
- IEx 15.0208X
- SONCAP certificate
- LCOGB049552-0500
- UKEx certificate
- BAS21UKEX0064X
- Suitable for thread type cable screw gland
- Metric
- Suitable for nominal thread metric/PG
- 16
- Country of origin
- United Kingdom
Standards & Compliance
- HS Code
- 7419.80
Cross References
- EAN 7070923016962
- SAP 1200820191
- Code 84003497
Product Documentation
More from Hawke
Hawke

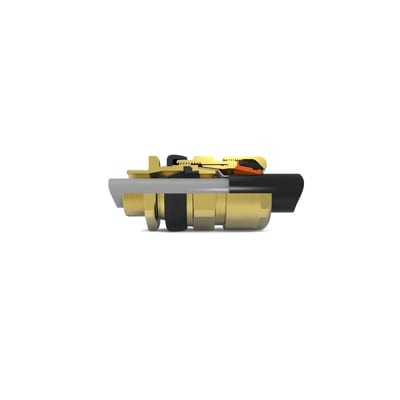

Hawke 501/453/UNIV Ex d / Ex e barrier cable gland, size F, M75, nickel-plated brass
501/453/U-FM75NP
Hawke

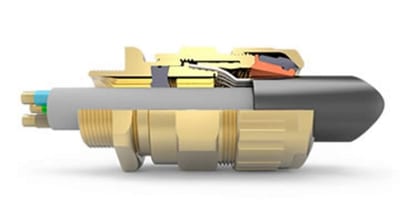

Hawke 501/453/RAC Ex d / Ex e barrier cable gland, size C2, M40, nickel-plated brass
501/453/RAC-C2M40NP
Hawke

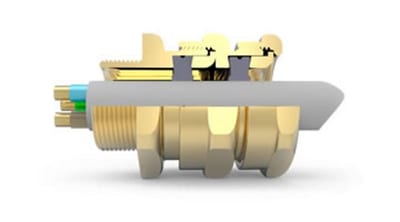

Hawke 501/423 Ex d / Ex e cable gland, size C, M32, nickel-plated brass
