Harting

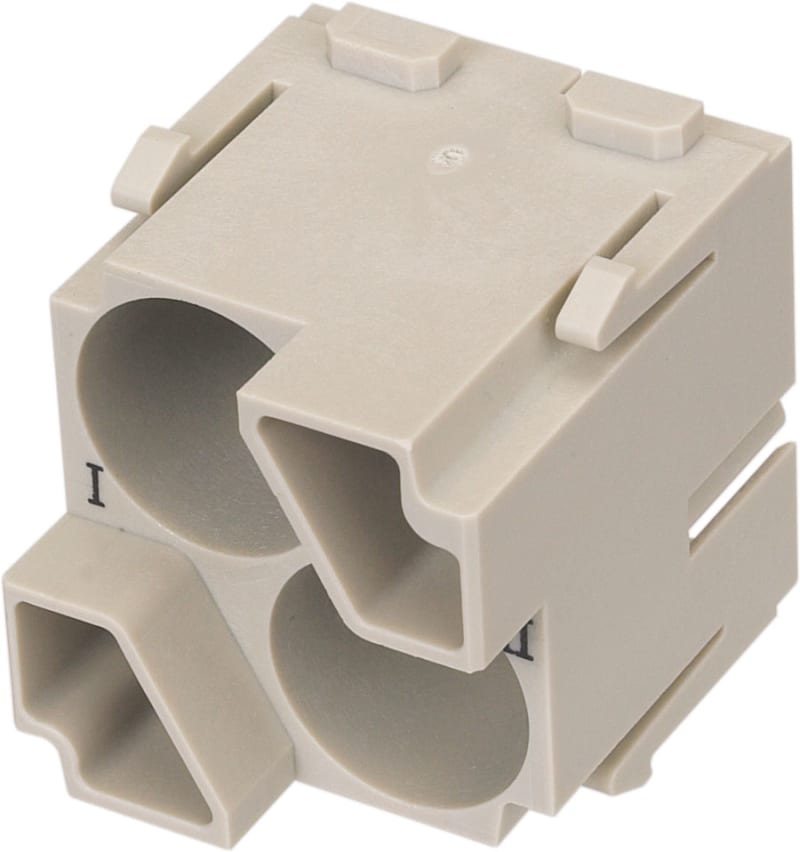

Han-Quintax module, male
Part number09140023001EAN / GTIN5713140019812HS code8536.90
Electrical Components
Heavy-Duty Connectors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Harting 09140023001 Manufacturer description: Han-Quintax® module; Double module; Crimp termination; Male; Polycarbonate (PC); RAL 7032 (pebble grey). Han-Modular®, Plug Han-Quintax® 2/4 module.
Technical Specifications
- Manufacturer part number (MPN)
- 09140023001
- EAN / GTIN
- 5713140019812
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Category
- Modules
- Type of module
- Han-Quintax® module
- Size of the module
- Double module
- Series
- Han-Modular®
- Termination method
- Crimp termination
- Gender
- Male
- Insulation resistance
- >10¹⁰ Ω
- Limiting temperature
- -40 ... +85 °C
- Mating cycles
- 500
- Fire protection on railway vehicles
- EN 45545-2 (2020-08) + A1 (2023-10)
- China RoHS
- e
- RoHS
- compliant
- REACH SVHC substances
- Not contained
- REACH Annex XVII substances
- Not contained
- REACH ANNEX XIV substances
- Not contained
- Requirement set with Hazard Levels
- R22 (HL 1-3) | R23 (HL 1-3)
- ELV status
- compliant
- California Proposition 65 substances
- Not contained
- Material (insert)
- Polycarbonate (PC)
- Colour (insert)
- RAL 7032 (pebble grey)
- Material flammability class acc. to UL 94
- V-0
- UL / CSA
- UL 1977 ECBT2.E235076 | CSA-C22.2 No. 182.3 ECBT8.E235076
- Approvals
- DNV GL
- Specifications
- IEC 60664-1 | IEC 61984 | IEC 61373 Category 2
- European customs tariff number
- 85389099
- Packaging size
- 2
- Net weight
- 14.4 g
- Country of origin
- Germany
- eCl@ss
- 27440207 Adapter for industrial connectors (module/contact insert)
- ETIM
- EC002312
- UNSPSC 24.0
- 39121469
- With protective conductor
- No
- Min. number of insertion cycles
- 500
- Width
- 15 mm
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 5713140019812
- SAP 1000444707
- Code 8240121
Product Documentation
