Han A Hood Coupler Thermoplastic M20
Pricing
Request a quote
We reply within 24 hours
Product Description

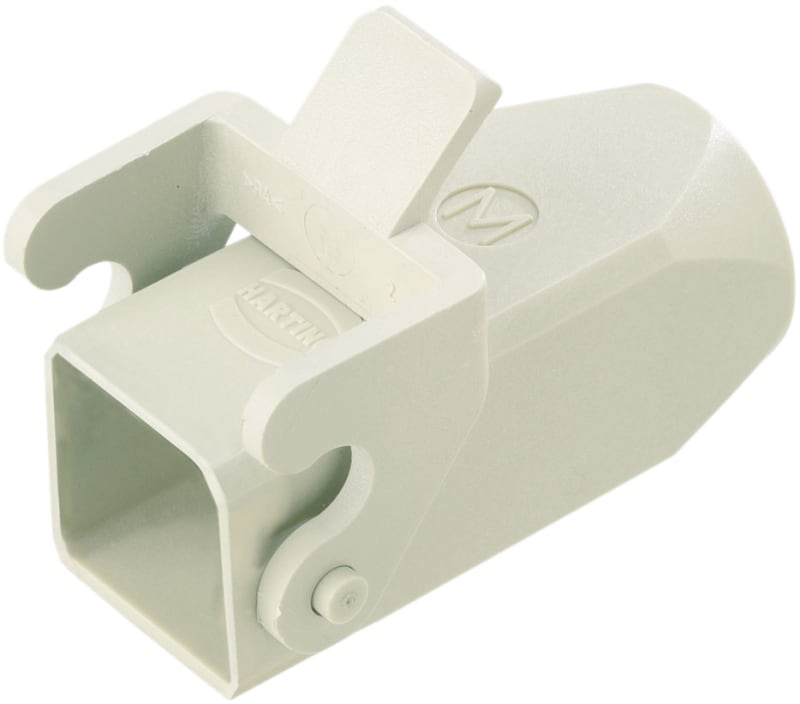

Harting 19200030720 Manufacturer description: Cable to cable housing; Size: 3 A; Single locking lever; Top entry; 1x M20; Material (hood/housing): Polycarbonate (PC); RAL 7032 (pebble grey). Han A® 3A Cable joint cover in grey plastic, straight, M20.
Technical Specifications
- Manufacturer part number (MPN)
- 19200030720
- EAN / GTIN
- 5713140124486
- HS code
- 8544.42
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Category
- Hoods / Housings
- Series of hoods/housings
- Han A®
- Type of hood/housing
- Cable to cable housing
- Locking type
- Single locking lever
- Size
- 3 A
- Version
- Top entry
- Number of cable entries
- 1
- Cable entry
- 1x M20
- Field of application
- Standard Hoods/housings for industrial applications
- Pack contents
- Please order seal screw separately.
- Limiting temperature
- -40 ... +125 °C
- Note on the limiting temperature
- For use as a connector according to IEC 61984.
- Degree of protection acc. to IEC 60529
- IP44 | IP65 with seal screw | IP67 with seal screw
- Type rating acc. to UL 50 / UL 50E
- 4 | 4X | 12
- Fire protection on railway vehicles
- EN 45545-2 (2020-08) + A1 (2023-10)
- China RoHS
- e
- RoHS
- compliant
- REACH SVHC substances
- Not contained
- REACH Annex XVII substances
- Not contained
- REACH ANNEX XIV substances
- Not contained
- Requirement set with Hazard Levels
- R22 (HL 1-3) | R23 (HL 1-3)
- ELV status
- compliant
- Material (hood/housing)
- Polycarbonate (PC)
- Colour (hood/housing)
- RAL 7032 (pebble grey)
- Material flammability class acc. to UL 94
- V-0
- UL / CSA
- UL 1977 ECBT2.E235076 | CSA-C22.2 No. 182.3 ECBT8.E235076
- Approvals
- CE | DNV GL
- European customs tariff number
- 85389099
- Packaging size
- 10
- Net weight
- 10 g
- Country of origin
- Romania
- eCl@ss
- 27440202 Shell for industrial connectors
- ETIM
- EC000437
- UNSPSC 24.0
- 39121466
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 5713140124486
- SAP 1000444755
- Code 8128700
