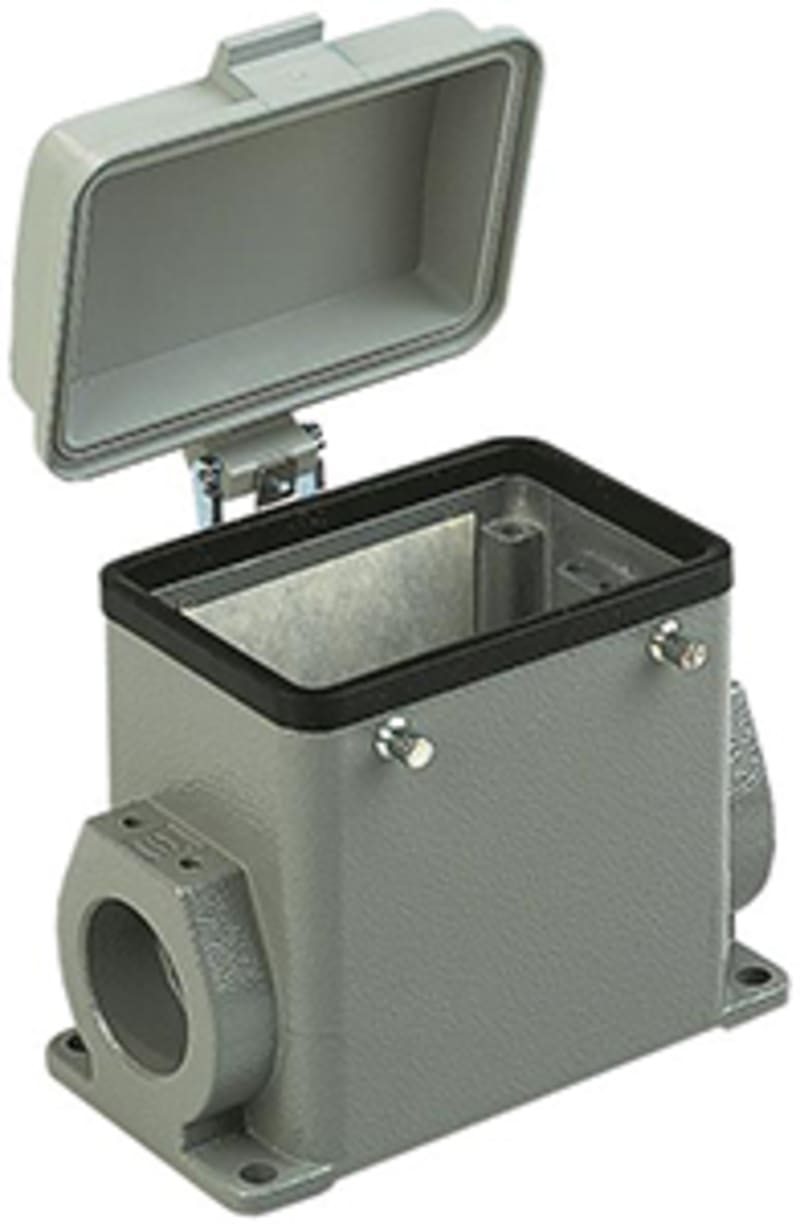

Han 32A-ASG1-K-M25 (19200320226)
Pricing
Request a quote
We reply within 24 hours
Product Description
Harting 19200320226 Manufacturer description: Surface mounted housing; With thermo-plastic cover; Size: 32 A; High construction; Double locking lever (on the hood); Side entry; 1x M25; Material (hood/housing): Aluminium die-cast; Powder-coated; RAL 7037 (dust grey). Han® 32A Wall-mounted cover with cover and M25 nipple input.
Technical Specifications
- Manufacturer part number (MPN)
- 19200320226
- EAN / GTIN
- 5713140124851
- Sales unit
- pcs
- Category
- Hoods / Housings
- Series of hoods/housings
- Han A®
- Type of hood/housing
- Surface mounted housing
- Description of hood/housing
- With thermo-plastic cover
- Type
- High construction
- Locking type
- Double locking lever (on the hood)
- Size
- 32 A
- Version
- Side entry
- Number of cable entries
- 1
- Cable entry
- 1x M25
- Field of application
- Standard Hoods/housings for industrial applications
- Limiting temperature
- -40 ... +125 °C
- Note on the limiting temperature
- For use as a connector according to IEC 61984.
- Degree of protection acc. to IEC 60529
- IP65
- Type rating acc. to UL 50 / UL 50E
- 4 | 4X | 12
- ECHA SCIP number
- 5dbb3851-b94e-4e88-97a1-571845975242
- Fire protection on railway vehicles
- EN 45545-2 (2020-08) + A1 (2023-10)
- China RoHS
- 50
- RoHS
- compliant with exemption
- REACH SVHC substances
- Yes | Lead
- REACH Annex XVII substances
- Not contained
- REACH ANNEX XIV substances
- Not contained
- Requirement set with Hazard Levels
- R1 (HL 1-3) | R7 (HL 1-3)
- ELV status
- compliant with exemption
- California Proposition 65 substances
- Yes | Lead | Nickel
- RoHS exemptions
- 6(a)-I: Lead as an alloying element in steel for machining purposes containing up to 0,35 % lead by weight
- Material (hood/housing)
- Aluminium die-cast
- Surface (hood/housing)
- Powder-coated
- Colour (hood/housing)
- RAL 7037 (dust grey)
- Approvals
- CE | DNV GL
- European customs tariff number
- 85389099
- Packaging size
- 1
- Net weight
- 460 g
- Country of origin
- Germany
- eCl@ss
- 27440202 Shell for industrial connectors
- ETIM
- EC000437
- UNSPSC 24.0
- 39121466
- Width
- 57 mm
- UV resistant
- No
- Height
- 82 mm
- Depth
- 106 mm
- With hinged lid
- Yes
- Housing colour
- Grey
- Type of locking
- Double locking lever
- Number of conduit inlets
- 1
- With cable screw gland
- No
- EMC-version
- No
- Corrosion resistant
- No
- Housing material
- Aluminium
- Coating housing
- Powder coating
- Operating temperature
- -40–125 °C
- With distance piece
- No
- With sealing
- No
- Type of housing
- Socket case
- Degree of protection (IP), mounted
- IP65
- Material adaptor plate
- Aluminium
- Position cable feed
- Sideways
- Position of the shackle
- Top cover
- Mounting method of the cable gland
- Metric
Standards & Compliance
- HS Code
- 8536.90
