Han Q 2/0-BU HV 4-6 mm² (10 mm² opt.)

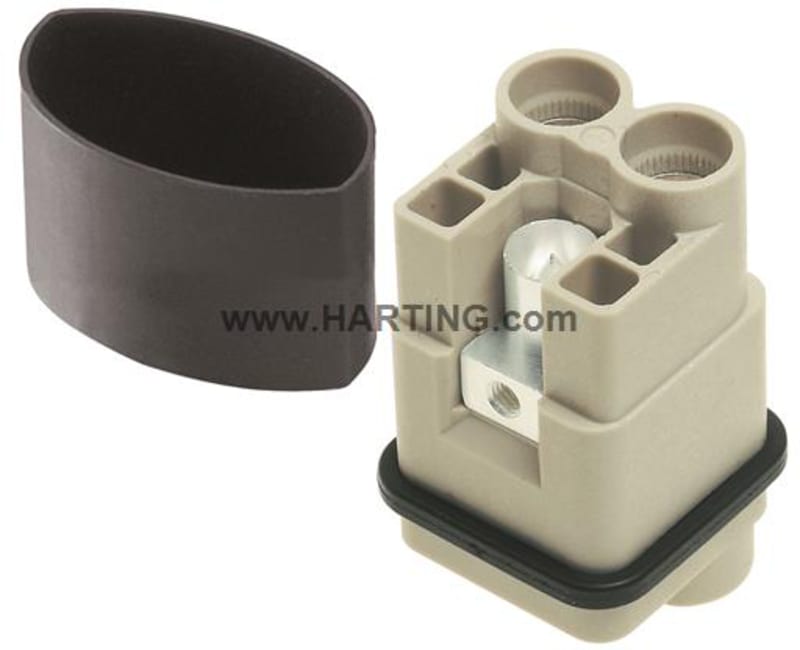

Harting 09120022752 Manufacturer description: Inserts; Axial screw termination; Female; Polycarbonate (PC); RAL 7032 (pebble grey); Rated current: 40 A; Size: 3 A; Contacts: 2; Conductor cross-section: 4. 10 mm²; Copper alloy; Silver plated. HAN Q 2/0-BU HV 4-6MM2 (10MM2 OPT.) CONN.

Manufacturer part number (MPN)

09120022752

EAN / GTIN

5713140016637

Sales unit

pcs

Category

Inserts

Identification

2/0 High Voltage

Series

Han® Q

Termination method

Axial screw termination

Gender

Female

Size

3 A

Number of contacts

2

PE contact

Yes

Pack contents

With heat shrink tube

Conductor cross-section (mm²)

4 ... 10 mm²

Rated voltage acc. to CSA

600 V

Rated current

40 A

Rated voltage

830 V

Rated impulse voltage

6 kV

Pollution degree

3

Rated voltage acc. to UL

600 V

Insulation resistance

>10¹⁰ Ω

Contact resistance

1 mΩ

Limiting temperature

-40 ... +125 °C

Tightening torque

1.8 Nm

Mating cycles

500

ECHA SCIP number

5dbb3851-b94e-4e88-97a1-571845975242

Fire protection on railway vehicles

EN 45545-2 (2020-08) + A1 (2023-10)

China RoHS

50

RoHS

compliant with exemption

REACH SVHC substances

Yes | Lead

REACH Annex XVII substances

Not contained

REACH ANNEX XIV substances

Not contained

Requirement set with Hazard Levels

R22 (HL 1-3) | R23 (HL 1-3)

ELV status

compliant with exemption

California Proposition 65 substances

Yes | Lead

RoHS exemptions

6(c): Copper alloy containing up to 4 % lead by weight

Material (insert)

Polycarbonate (PC)

Colour (insert)

RAL 7032 (pebble grey)

Material (contacts)

Copper alloy

Surface (contacts)

Silver plated

Material flammability class acc. to UL 94

V-0

UL / CSA

UL 1977 ECBT2.E235076 | CSA-C22.2 No. 182.3 ECBT8.E235076

Approvals

DNV GL

Specifications

IEC 60664-1 | IEC 61984

European customs tariff number

85366990

Packaging size

1

Net weight

18.86 g

Country of origin

Romania

eCl@ss

27440205 Contact insert for industrial connectors

ETIM

EC000438

UNSPSC 24.0

39121522

Shape

Rectangular

With wire protection

No

With housing

No

Number of poles

2

Contact type

Bus

Ambient temperature

-40–125 °C

Operating temperature

-40–125 °C

Rated surge voltage

6 kV

Type of electric connection

Axial screw connection

Material of contact surface

Silver

Overvoltage category

III

Contact insert without contacts

No

Connectable conductor cross section solid-core

4–10 mm²

Connectable conductor cross section multi-wired

4–10 mm²

With protective conductor

Yes

Material contact

Other copper alloys

Material connector insert

Thermoplastic

Rated current In

40 A

Material of contact insert

Thermoplastic

Min. number of insertion cycles

500

Number of power contacts

2

HS Code

8536.69
