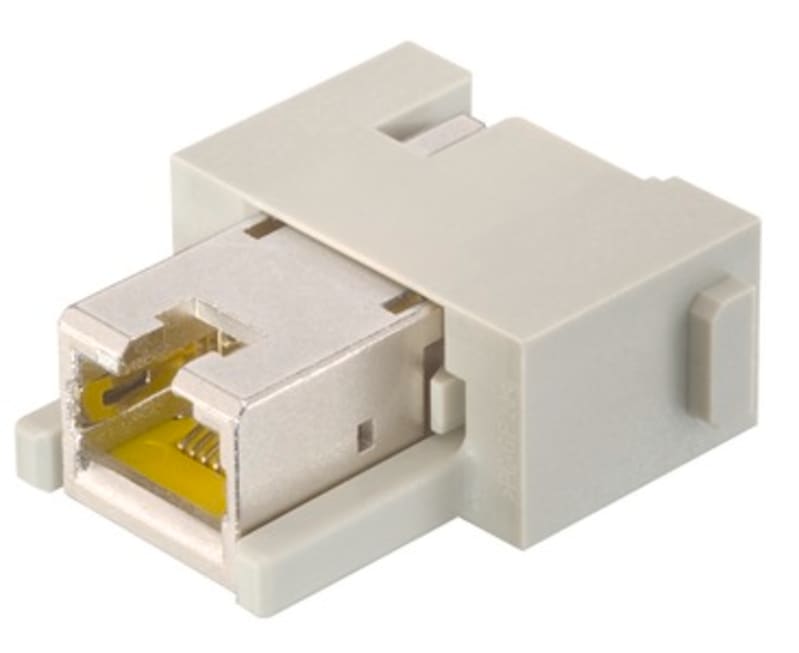

Han RJ45 module, female gender changer
Pricing
Request a quote
We reply within 24 hours
Product Description
Harting 09140014721 Manufacturer description: Han® RJ45 module; Single module; Gender changer, for patch cable; Female; Contacts: 8; Rated current: 1 A; Polycarbonate (PC), Zinc die-cast, nickel-plated; RAL 7032 (pebble grey). HAN RJ45 MODULE, FEMALE GENDER CHANGER.
Technical Specifications
- Manufacturer part number (MPN)
- 09140014721
- EAN / GTIN
- 5713140019492
- Sales unit
- pcs
- Category
- Modules
- Type of module
- Han® RJ45 module
- Description of the module
- Gender changer | for patch cable
- Size of the module
- Single module
- Series
- Han-Modular®
- Features
- Suitable for all PoE versions
- Gender
- Female
- Number of contacts
- 8
- Rated current
- 1 A
- Rated voltage
- 50 V
- Rated impulse voltage
- 0.8 kV
- Pollution degree
- 3
- Rated voltage acc. to UL
- 30 V
- Insulation resistance
- >10¹⁰ Ω
- Limiting temperature
- -40 ... +70 °C
- Mating cycles
- 500
- Transmission characteristics
- Cat. 6A Class EA up to 500 MHz
- Data rate
- 10 Mbit/s | 100 Mbit/s | 1 Gbit/s | 2.5 Gbit/s | 5 Gbit/s | 10 Gbit/s
- ECHA SCIP number
- 1e38d35d-d1be-4585-8e03-95faccd739bf
- Fire protection on railway vehicles
- EN 45545-2 (2020-08) + A1 (2023-10)
- China RoHS
- 50
- RoHS
- compliant with exemption
- REACH SVHC substances
- Yes | Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate | Lead
- REACH Annex XVII substances
- Not contained
- REACH ANNEX XIV substances
- Not contained
- Requirement set with Hazard Levels
- R22 (HL 1-3) | R23 (HL 1-3)
- ELV status
- compliant with exemption
- California Proposition 65 substances
- Yes | Lead | Nickel
- RoHS exemptions
- 6(c): Copper alloy containing up to 4 % lead by weight
- Material (insert)
- Polycarbonate (PC) | Zinc die-cast, nickel-plated
- Colour (insert)
- RAL 7032 (pebble grey)
- Material flammability class acc. to UL 94
- V-0
- UL / CSA
- UL 1977 ECBT2.E235076
- Approvals
- DNV GL
- Specifications
- IEC 60664-1 | IEC 61984
- European customs tariff number
- 85389099
- Packaging size
- 1
- Net weight
- 25.6 g
- Country of origin
- Germany
- eCl@ss
- 27440218 Module for industrial connectors (data)
- ETIM
- EC000438
- UNSPSC 24.0
- 39121552
- Shape
- Rectangular
- With wire protection
- No
- With housing
- No
- Suitable for distribution board
- No
- Number of poles
- 8
- Contact type
- Bus
- Ambient temperature
- -40–70 °C
- Operating temperature
- -40–70 °C
- Rated surge voltage
- 0.8 kV
- Overvoltage category
- III
- Contact insert without contacts
- No
- With protective conductor
- No
- Material connector insert
- Thermoplastic
- Rated current In
- 1 A
- Material of contact insert
- Thermoplastic
- Min. number of insertion cycles
- 500
- Number of power contacts
- 8
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 5713140019492
- SAP 1000444712
- Code 8542478
