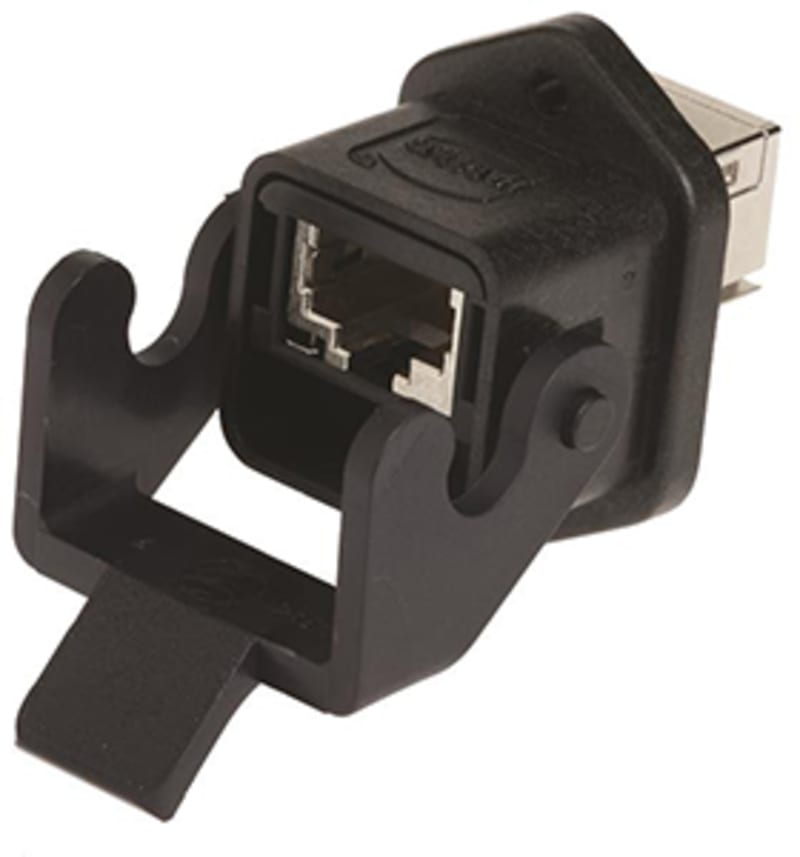

HAN3A RJ45 10G CAT6A PFT 8P plastic
Pricing
Request a quote
We reply within 24 hours
Product Description
Harting 09452251560 Manufacturer description: Connectors; Panel feed through Straight; Contacts: 8; Size: 3 A; Material: Polycarbonate (PC); Degree of protection: IP65, IP67. Han 3A, RJ45 Enclosure Contact, plastic 10G IP67.
Technical Specifications
- Manufacturer part number (MPN)
- 09452251560
- EAN / GTIN
- 5713140059818
- Sales unit
- pcs
- Category
- Connectors
- Series of hoods/housings
- Han A®
- Element
- Panel feed through
- Specification
- Straight
- Series
- RJ45
- Features
- Suitable for all PoE versions
- Size
- 3 A
- Shielding
- Fully shielded, 360° shielding contact
- Number of contacts
- 8
- Fixing
- Screwable in cover plates
- Limiting temperature
- -40 ... +70 °C
- Mating cycles
- 500
- Degree of protection acc. to IEC 60529
- IP65 | IP67
- Transmission characteristics
- Cat. 6A Class EA up to 500 MHz
- Data rate
- 10 Mbit/s | 100 Mbit/s | 1 Gbit/s | 2.5 Gbit/s | 5 Gbit/s | 10 Gbit/s
- China RoHS
- e
- RoHS
- compliant
- REACH SVHC substances
- Not contained
- REACH Annex XVII substances
- Not contained
- REACH ANNEX XIV substances
- Not contained
- ELV status
- compliant
- California Proposition 65 substances
- Yes | Lead | Nickel
- Material (hood/housing)
- Polycarbonate (PC)
- Colour (hood/housing)
- Black
- Material flammability class acc. to UL 94
- V-0
- UL / CSA
- UL 1977 ECBT2.E102079 | CSA-C22.2 No. 182.3 ECBT8.E102079
- PROFINET
- Yes
- Approvals
- DNV GL
- European customs tariff number
- 85366990
- Packaging size
- 1
- Net weight
- 35 g
- Country of origin
- Romania
- eCl@ss
- 27440113 Rectangular connectors (set)
- ETIM
- EC002636
- UNSPSC 24.0
- 39121408
- Width
- 35.3 mm
- Height
- 40.3 mm
- Depth
- 36.5 mm
- Number of poles
- 8
- Pollution degree
- 2
- Housing material
- Plastic
- Mounting method
- Screwed
- With protective conductor
- No
- Operating temperature
- -40–70 °C
- Degree of protection (IP), mounted
- IP65
- EMC-version
- Yes
- Number of conduit inlets
- 2
- With sealing
- No
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 5713140059818
- SAP 1200495117
- Code 82616716
Product Documentation
More from Harting
Harting

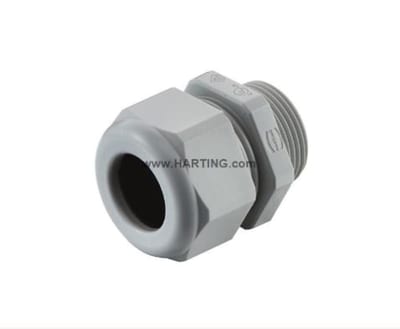

Han CGM-P M20X1,5 D.5-9MM grey
19000005180
Harting

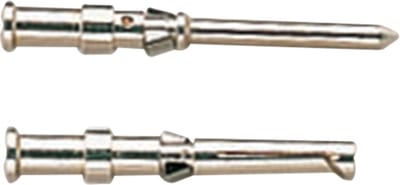

Han D male contact-c 1mm² (Ag)
09150006102
Harting

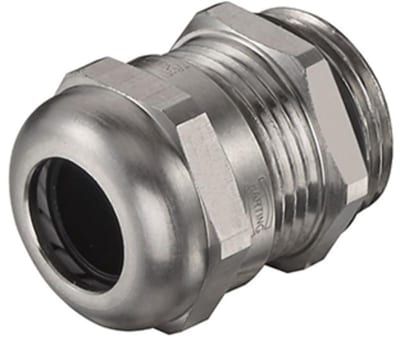

Han CGM-M M40X1,5 D.22-32MM
19000005098
Harting
Ha-VIS eCon 3080BT-A
24030080000
Harting

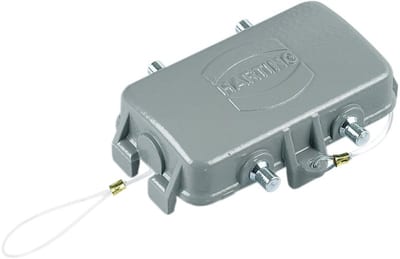

Han B Protect Cover Die Cast for Hood Co
09300105427
Harting

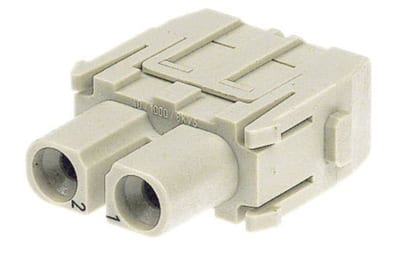

Han 40A axial module, female 6-10 mm²
09140022702
Harting

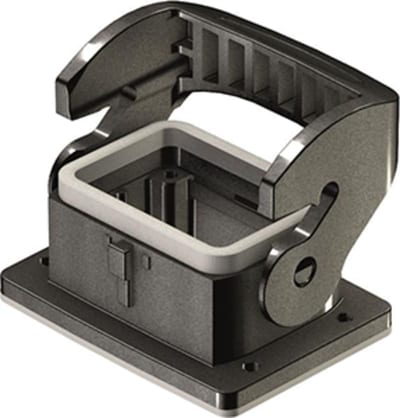

Han-Eco 6B Outd-HBM-with SL
19432060340
Harting

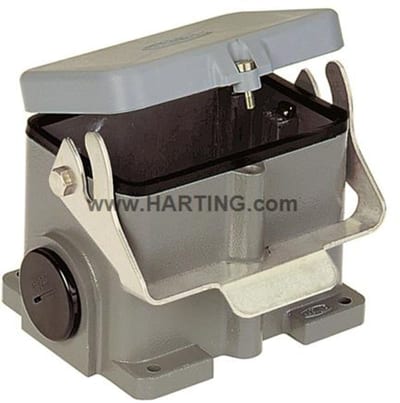

Han B Base surface 1 lever 2XM40
