Hanwha

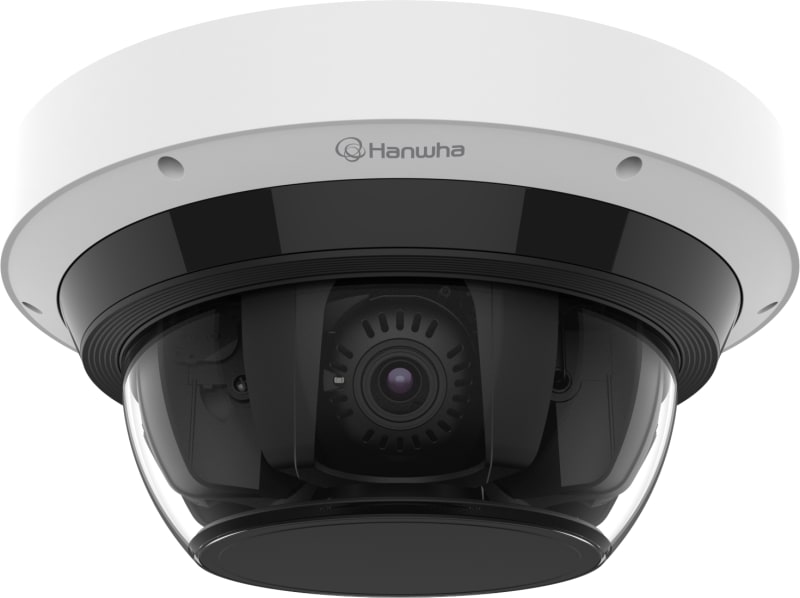

DOME CAMERA, 4 X 4MP, 3.2-10mm, IP66
Part numberPNM-C16083RQZEAN / GTIN8801089222152HS code8525.89
Safety & Detection
CCTV & Surveillance
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Hanwha PNM-C16083RQZ DOME CAMERA, 4 X 4MP, 3.2-10MM, IP66.
Technical Specifications
- Manufacturer part number (MPN)
- PNM-C16083RQZ
- EAN / GTIN
- 8801089222152
- Sales unit
- pcs
- IP rating
- IP66
- Mounting method
- Ceiling
- Colour
- White
- Width
- 312.7 mm
- Model
- Panoramic (multi-sensor)
- Height
- 145.9 mm
- Wireless
- No
- Depth
- 312.7 mm
- Voltage type
- DC
- Power consumption
- 41 W
- Diameter
- 312.7 mm
- Suitable for wall mounting
- No
- Construction type
- Dome shape
- Memory capacity
- 1024 GB
- Ambient temperature
- -40–55 °C
- Suitable for outdoor use
- Yes
- Picture system
- PAL
- Protocol
- TCP/IP
- Impact strength
- IK10
- Focus
- Variable
- Focal size
- 3.2–10 mm
- With video motion detector
- Yes
- Motor zoom
- Yes
- Degree of protection (IP)
- IP66
- Vandal proof
- Yes
- Scope of application
- Outside
- Number of pixels (Megapixel)
- 4
- Property picture system
- Colour
- Suitable for surface mounting
- Yes
- HDMI-connection
- No
- Flush-mounted installation/built-in installation
- No
- With loudspeaker
- No
- With infrared lighting
- Yes
- Power over Ethernet (PoE)
- 802.3bt (4PPoE++)
- With memory card
- No
- With microphone
- No
- With lens
- Yes
- Max. infrared reach
- 20 m
- Supports H.264 codec
- Yes
- Supports H.265 codec
- Yes
- Supports Motion JPEG codec
- Yes
- Supports MPEG-4 codec
- No
- ONVIF-compliant
- Yes
- With white light
- No
- Thermal camera
- No
- VGA-connection (D-Sub 15-pole)
- No
- DVI-connection
- No
- BNC-connection
- No
- DisplayPort-connection
- No
- Mini HDMI-connection
- No
- S-Video-connection
- No
- USB-C-connection
- No
- Mini DisplayPort
- No
- WDR (Wide Dynamic Range)
- 120 dB
- With slot for memory card
- Yes
- With integrated AI analysis
- Yes
- With integrated audio analysis
- No
- Suitable for ceiling mounting
- Yes
- Suitable for corner mounting
- No
- Transmission
- TCP/IP
Standards & Compliance
- HS Code
- 8525.89
Cross References
- EAN 8801089222152
- SAP 1200810601
- Code 83995692
Product Documentation
Document preview: DOME CAMERA, 4 X 4MP, 3.2-10mm, IP66 (PNM-C16083RQZ) — Specification sheet
