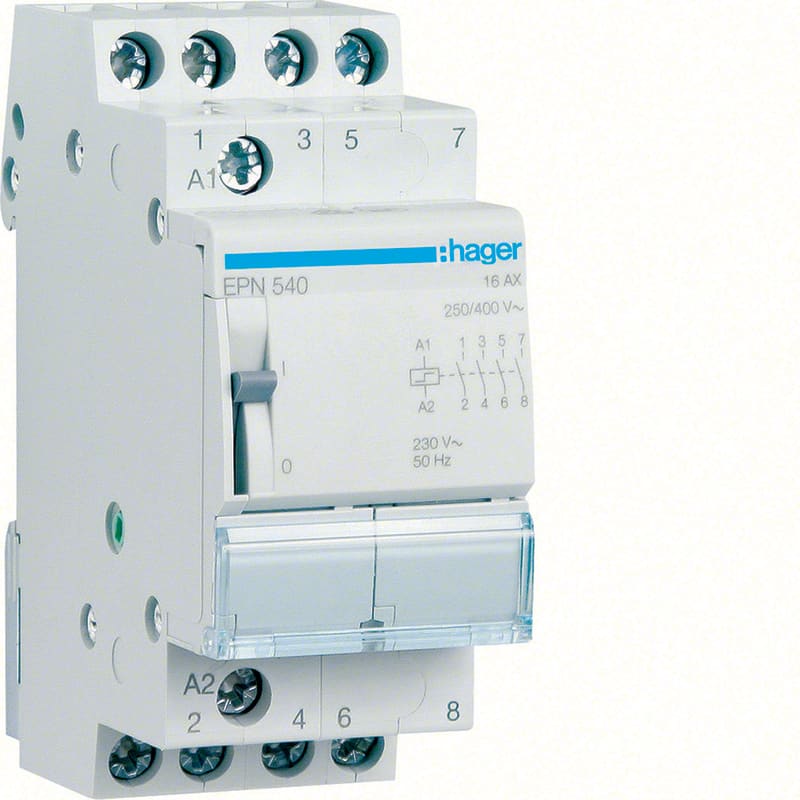

Hager Systemer Impulse Relay 230V 16A 4NO Contacts
Pricing
Request a quote
We reply within 24 hours
Product Description
Hager Systemer EPN540 is an impulse relay rated 230 V AC / 16 A with four normally-open contacts for DIN-rail mounting. Each pulse on the control input toggles the load contacts, providing corridor or staircase lighting control from any number of parallel push-buttons. The unit accepts 230 V AC or 110 V DC control voltage at 50-60 Hz and is suitable for manual operation.
Technical Specifications
- Manufacturer part number (MPN)
- EPN540
- EAN / GTIN
- 3250612369454
- Sales unit
- pcs
- Package quantity
- 72 pcs
- Voltage
- 220 V
- Rated current
- 16 A
- Mounting method
- DIN rail
- Function
- Mechanical switch
- Built-in depth
- 63 mm
- Width in number of modular spacings
- 35
- Control voltage 1
- 230 V
- Control voltage 2
- 110 V
- Type of control voltage 1
- AC
- Type of control voltage 2
- DC
- Frequency control voltage 1
- 50–60 Hz
- Frequency control voltage 2
- 50–60 Hz
- Suitable for manual operation
- Yes
- Voltage type (supply voltage)
- AC
- Supply voltage
- 250–400 V
- Max. switching current (cos phi = 0.6)
- 16 A
- Max. incandescent lamp load
- 1800 W
- Max. load fluorescent lamp
- 800 VA
- Rated switch current
- 16 A
- Number of contacts as normally open contact
- 4
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.49
Cross References
- EAN 3250612369454
- SAP 1000012403
- Code 8481899
Product Documentation
