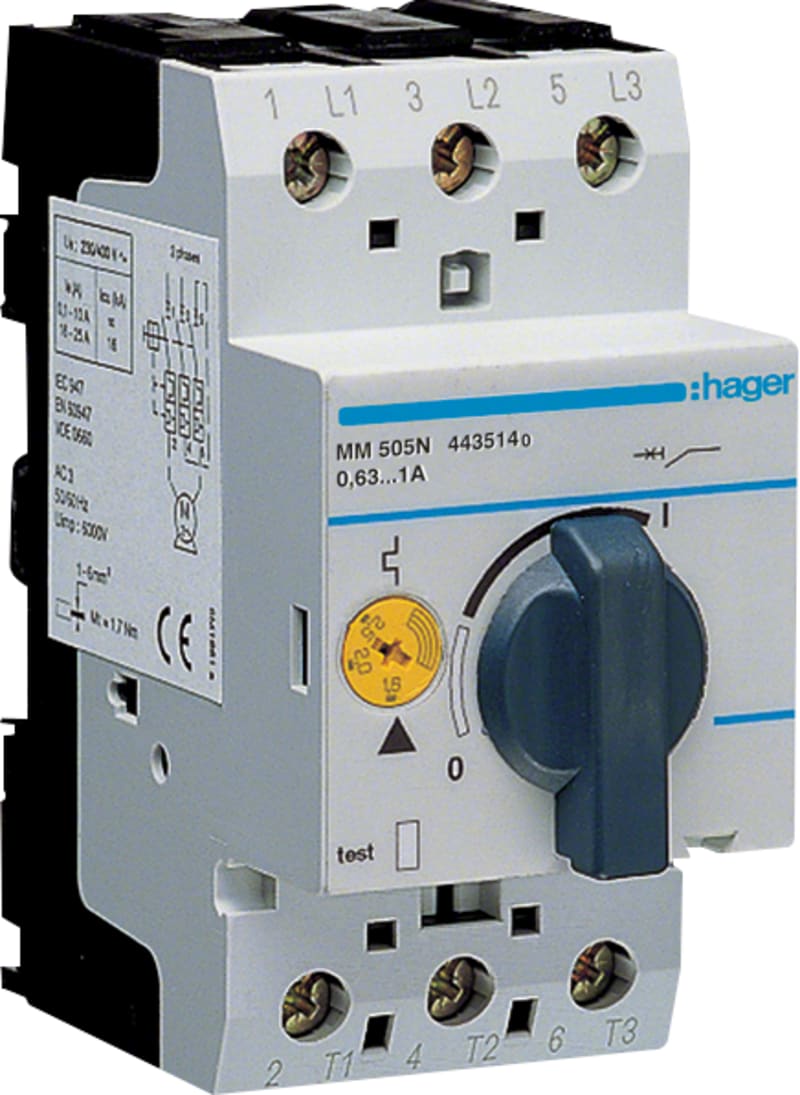

Motor PROTECTIONBR.0,63-1A (MM505N)

Hager Systemer MM505N Motor protection circuit breaker 0,63-1A.

Manufacturer part number (MPN)

MM505N

EAN / GTIN

3250614435188

HS code

8536.90

Sales unit

pcs

Package quantity

48 pcs

Setting range

63-1 A

Width

45 mm

Height

90 mm

Depth

70 mm

Rated operation power at AC-3, 400 V

0.25 kW

With integrated auxiliary switch

No

Rated permanent current Iu

1 A

With integrated under voltage release

No

Number of poles

3

Rated operating voltage

230–690 V

Overload release current setting

0.63–1 A

Power loss

5.33 W

Degree of protection (IP)

IP20

With thermal overload protection

Yes

Type of electrical connection of main circuit

Screw connection

Type of control element

Turn button

Switch off technique

Thermomagnetic

Rated operation power at AC-3, 230 V

0.12 kW

Rated short-circuit breaking capacity Icu at 400 V, AC

150 kA

Adjustment range undelayed short-circuit release

11.2–16.8 A

Phase failure sensitive

Yes

Device construction

Built-in device fixed built-in technique

Country of origin

Germany

HS Code

8536.90
