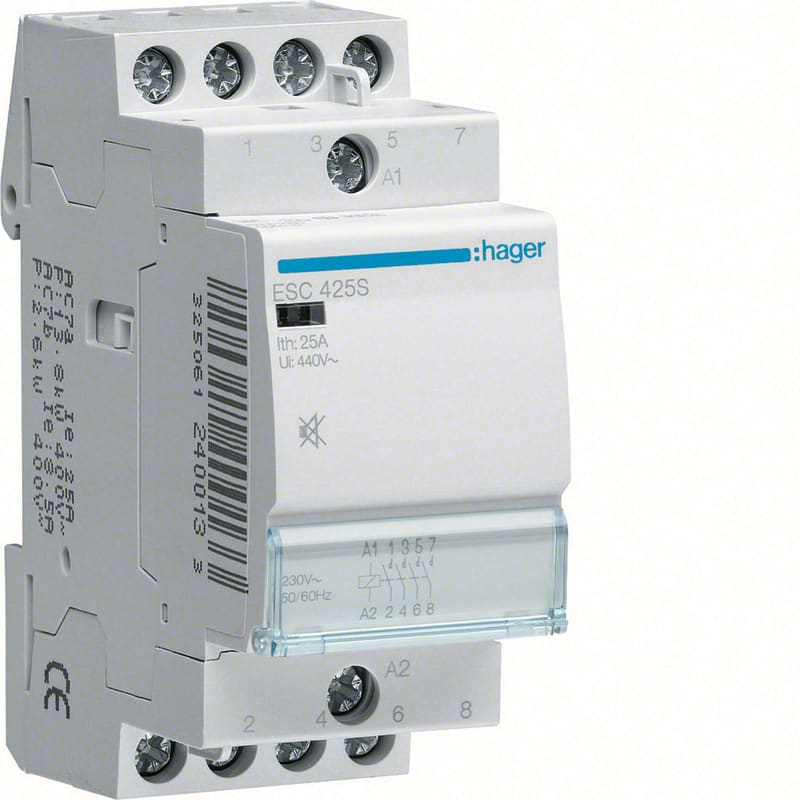

Hager ESC425S Hum-Free Modular Contactor 25 A 230 V 4NO
Pricing
Request a quote
We reply within 24 hours
Product Description
Hager Systemer ESC425S hum-free modular contactor rated 25 A at 230-400 V with 4 normally open contacts and 220-240 V AC coil. 2-module width, 60 mm built-in depth, IP2X. Handles up to 1900 W incandescent lamp load or 950 VA fluorescent lamp load; utilisation category AC-7a/AC-7b. Package quantity: 60 pcs.
Technical Specifications
- Manufacturer part number (MPN)
- ESC425S
- EAN / GTIN
- 3250612400133
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 60 pcs
- Utilization category according to EN IEC 60947-4-1
- AC-7a/AC-7b
- Rated operating voltage
- 230–400 V
- Rated operation current
- 25 A
- Utility category
- 7
- Rated excitation voltage
- 220–240 V
- Voltage type (operating voltage)
- AC
- Number of contacts as normally open contact
- 4
- Max. incandescent lamp load
- 1900 W
- Max. load fluorescent lamp
- 950 VA
- Slider for hand switch
- No
- Width in number of modular spacings
- 2
- Built-in depth
- 60 mm
- Additional equipment possible
- Yes
- With day/night function
- No
- Hum-free
- Yes
- Degree of protection (IP)
- IP2X
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3250612400133
- SAP 1000221688
- Code 8111988
Product Documentation
