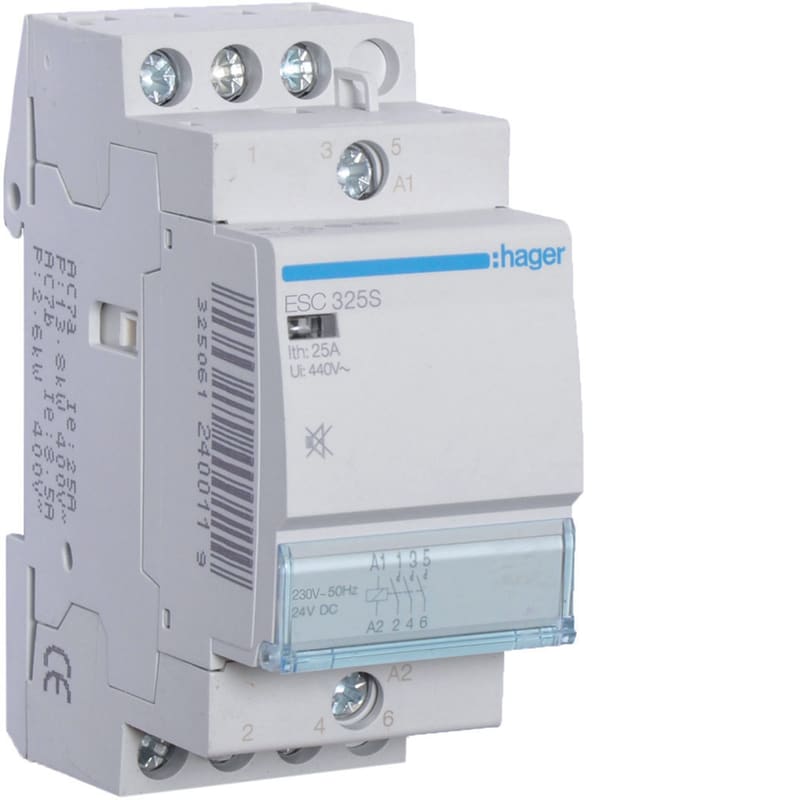

Hager Modular Contactor 3NO 25 A 230 V Hum-free

Hager ESC325S is a hum-free modular installation contactor rated 25 A with three normally-open main contacts and a 220-240 V AC coil. The device occupies two modular spacings on a DIN rail and switches loads up to 1900 W incandescent or 950 VA fluorescent per utility category AC-7a/AC-7b of EN IEC 60947-4-1. Typical applications are remote switching of lighting, heating and small motor circuits in residential and commercial distribution boards.

Manufacturer part number (MPN)

ESC325S

EAN / GTIN

3250612400102

HS code

8536.90

Sales unit

pcs

Package quantity

6 pcs

Utilization category according to EN IEC 60947-4-1

AC-7a/AC-7b

Rated operating voltage

230–400 V

Rated operation current

25 A

Utility category

7

Rated excitation voltage

220–240 V

Voltage type (operating voltage)

AC

Number of contacts as normally open contact

3

Max. incandescent lamp load

1900 W

Max. load fluorescent lamp

950 VA

Slider for hand switch

No

Width in number of modular spacings

2

Built-in depth

60 mm

Additional equipment possible

Yes

With day/night function

No

Hum-free

Yes

Degree of protection (IP)

IP2X

Country of origin

France

HS Code

8536.90
