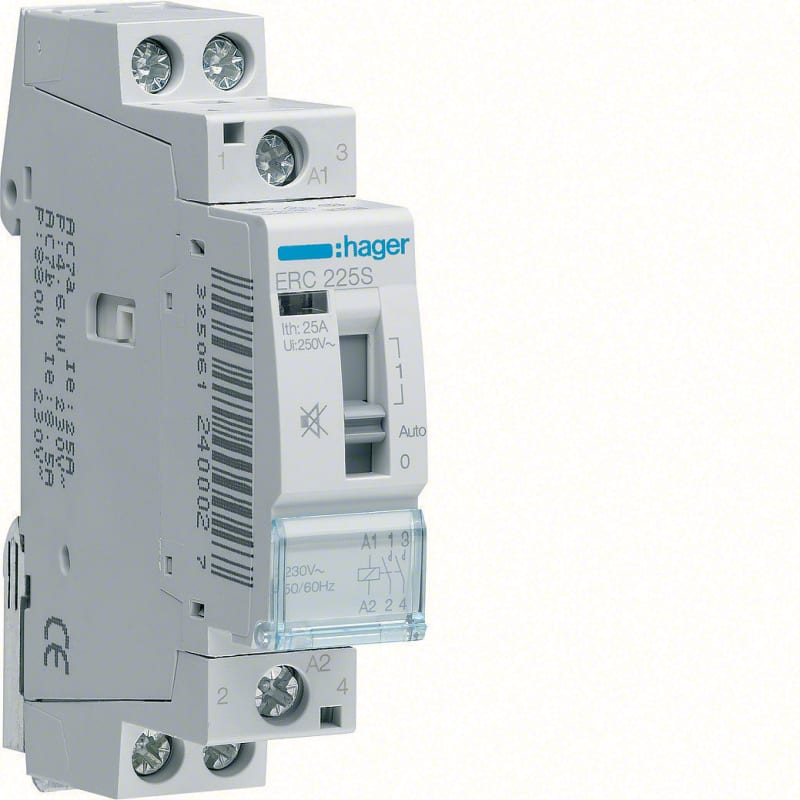

Hager Hum-Free Modular Contactor 25 A 230 V 2 NO with Manual Override

Hager ERC225S is a hum-free modular installation contactor for DIN-rail mounting, with a 25 A rated current, 230 V AC 50/60 Hz coil, and two normally-open contacts. Utilisation category AC-7a/AC-7b, with 1900 W maximum incandescent-lamp load and 950 VA maximum fluorescent-lamp load. A front-mounted manual slider allows the contacts to be switched by hand. Occupies one modular width and 60 mm installation depth, IP2X. Typical use is remote switching of lighting circuits and other resistive/inductive loads in a distribution board.

Manufacturer part number (MPN)

ERC225S

EAN / GTIN

3250612400027

HS code

8536.90

Sales unit

pcs

Package quantity

12 pcs

Utilization category according to EN IEC 60947-4-1

AC-7a/AC-7b

Rated operating voltage

230 V

Rated operation current

25 A

Utility category

7

Rated excitation voltage

230 V

Voltage type (operating voltage)

AC

Number of contacts as normally open contact

2

Max. incandescent lamp load

1900 W

Max. load fluorescent lamp

950 VA

Slider for hand switch

Yes

Width in number of modular spacings

1

Built-in depth

60 mm

Additional equipment possible

No

With day/night function

No

Hum-free

Yes

Degree of protection (IP)

IP2X

Country of origin

France

HS Code

8536.90

• EAN 3250612400027
• SAP 1000221653
• Code 8111881
