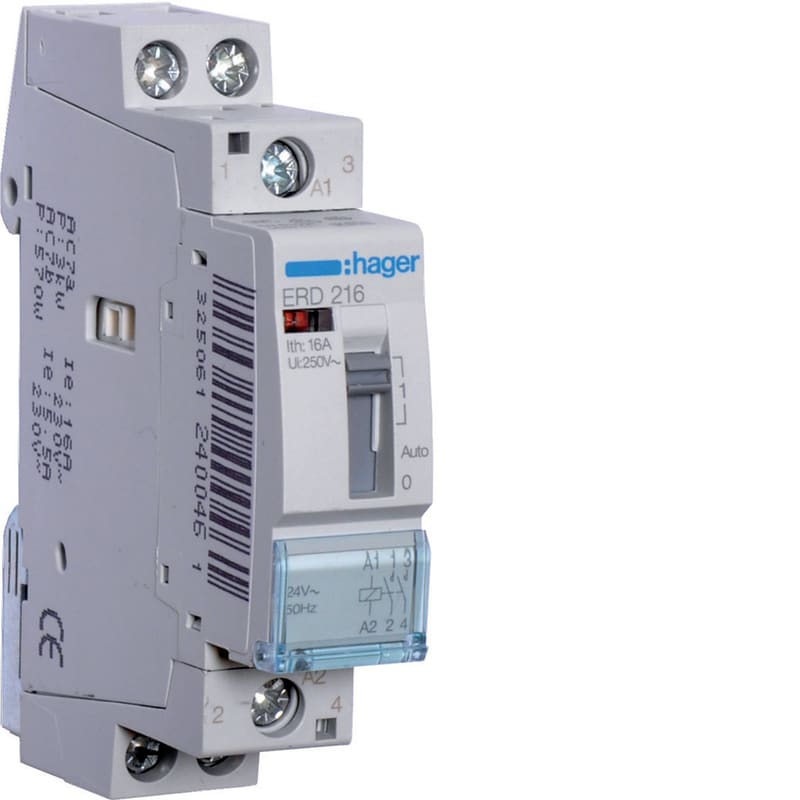

Hager ERD216 Modular Contactor 16A 2NO 24V
Pricing
Request a quote
We reply within 24 hours
Product Description
Modular DIN-rail contactor with front-mounted hand switch, rated 16 A, 2 normally open contacts and 24 V AC/DC coil. Operating voltage 230-400 V, utilization AC-7a/AC-7b for resistive and inductive lighting and heating loads. Handles up to 1100 W incandescent or 570 VA fluorescent lamp load; 1-module width, 60 mm built-in depth, IP2X. Suitable for lighting and heating switching in residential and commercial distribution boards.
Technical Specifications
- Manufacturer part number (MPN)
- ERD216
- EAN / GTIN
- 3250612400461
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 108 pcs
- Utilization category according to EN IEC 60947-4-1
- AC-7a/AC-7b
- Rated operating voltage
- 230–400 V
- Rated operation current
- 16 A
- Utility category
- 7
- Rated excitation voltage
- 24 V
- Voltage type (operating voltage)
- AC/DC
- Number of contacts as normally open contact
- 2
- Max. incandescent lamp load
- 1100 W
- Max. load fluorescent lamp
- 570 VA
- Slider for hand switch
- Yes
- Width in number of modular spacings
- 1
- Built-in depth
- 60 mm
- Additional equipment possible
- Yes
- With day/night function
- No
- Hum-free
- No
- Degree of protection (IP)
- IP2X
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3250612400461
- SAP 1000221643
- Code 8111826
Product Documentation
