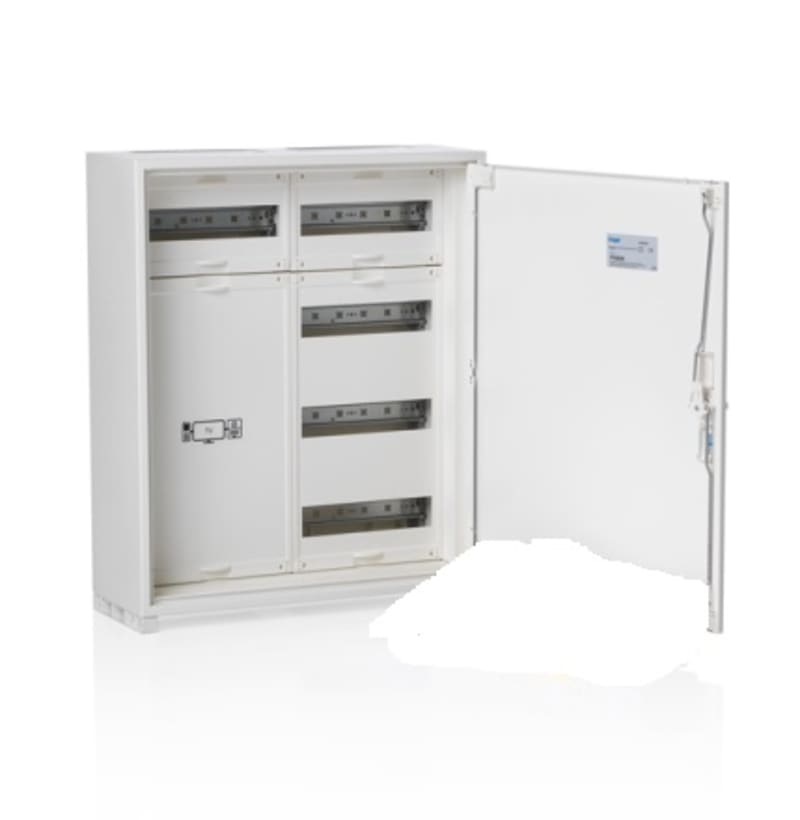

Hager Systemer surface consumer unit 650 x 550 x 205 mm IP44 class II
Pricing
Request a quote
We reply within 24 hours
Product Description
Hager Systemer 2471572 is a surface-mounted residential and light-commercial consumer unit with dimensions 650 x 550 x 205 mm, four rows and 24 modular widths per row. The steel enclosure is finished RAL 9010 white with class II double insulation and IP44 protection, includes a media compartment and is supplied without a metering board. Typical applications include apartments, houses and small commercial premises with combined power and low-voltage services.
Technical Specifications
- Manufacturer part number (MPN)
- 2471572
- Sales unit
- pcs
- El-nummer (NO)
- 2471572
- ETIM class
- SC000214
- Dimensions
- 650x550x205 mm
- Mounting method
- Surface mounted
- Colour
- White
- Width
- 550 mm
- Height
- 650 mm
- Depth
- 205 mm
- RAL-number
- 9010
- Built-in depth
- 205 mm
- Number of rows
- 4
- Built-in height
- 650 mm
- Type of covering
- Door
- Built-in width
- 550 mm
- Housing material
- Steel
- Width in number of modular spacings
- 24
- Type of door
- Single
- Degree of protection (IP)
- IP44
- Cover model
- Closed
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.10
Cross References
- 3250612668908
- El-nr 2471572
