Hager Systemer

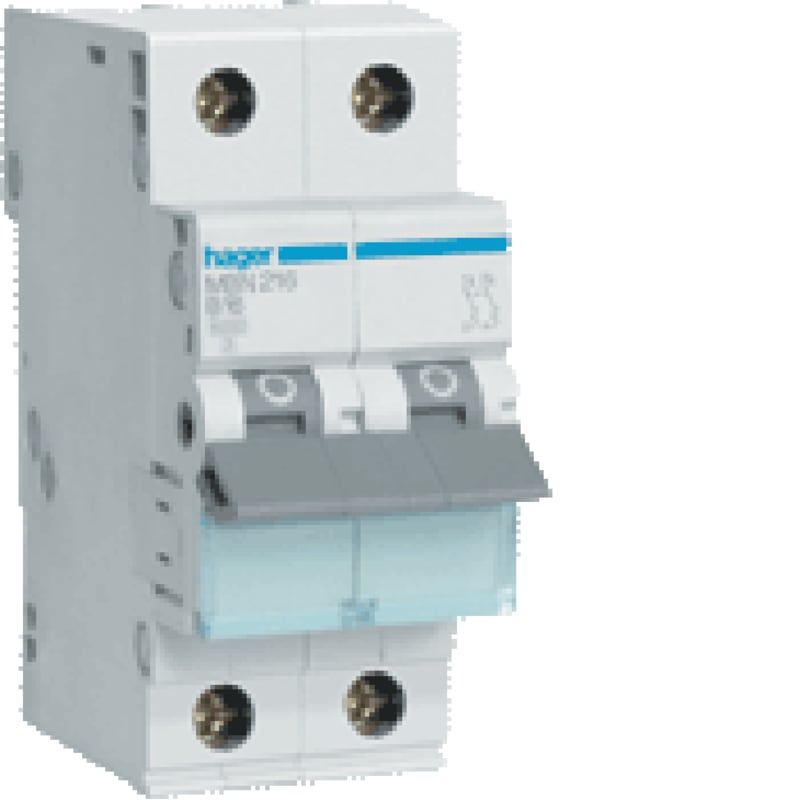

Miniature Circuit Breaker 2X16A B-Curve 10KA
Part numberNBN216EAN / GTIN3250614613876HS code8536.90
Electrical Components
Miniature Circuit Breakers
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Hager Systemer NBN216 Miniature circuit breaker 10kA 2-pole 16A B.
Technical Specifications
- Manufacturer part number (MPN)
- NBN216
- EAN / GTIN
- 3250614613876
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Breaking capacity
- 10 kA
- Power loss
- 5.34 W
- Built-in depth
- 70 mm
- Release characteristic
- B
- Number of poles (total)
- 2
- Number of protected poles
- 2
- Rated current
- 16 A
- Rated voltage
- 400 V
- Rated insulation voltage Ui
- 500 V
- Rated impulse withstand voltage Uimp
- 6 kV
- Frequency
- 50–60 Hz
- Current limiting class
- 3
- Concurrently switching neutral conductor
- No
- Overvoltage category
- 3
- Pollution degree
- 2
- Additional equipment possible
- Yes
- Width in number of modular spacings
- 2
- Degree of protection (IP)
- IP20
- Ambient temperature during operating
- 70 °C
- Connectable conductor cross section multi-wired
- 25 mm²
- Connectable conductor cross section solid-core
- 25 mm²
- Explosion-proof
- No
- Flush-mounted installation
- Yes
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3250614613876
- SAP 1000000171
- Code 814519
Product Documentation
Document preview: Miniature Circuit Breaker 2X16A B-Curve 10KA (NBN216) — Specification sheet
More from Hager Systemer
Hager Systemer
Mini Enclosure 6 Modules
GD106E
Hager Systemer
VK-FLEX 40 Self-Adhesive Light grey
L2242
Hager Systemer
Hager FWB32 Modular Enclosure, 3 Rows × 24 Modules, Surface Mount
Hager Systemer

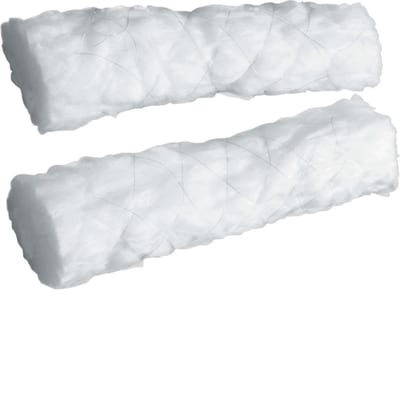

Sound insulation channels 15 pcs per pk
L5804
Hager Systemer

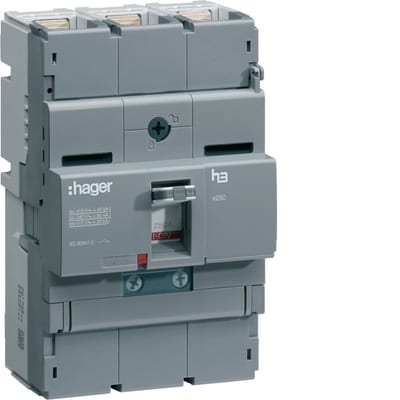

Circuit breaker TM 3X158-250A 40K
HNB201H
Hager Systemer
Filter FOR FL220Z 150X150MM
2471893
Hager Systemer

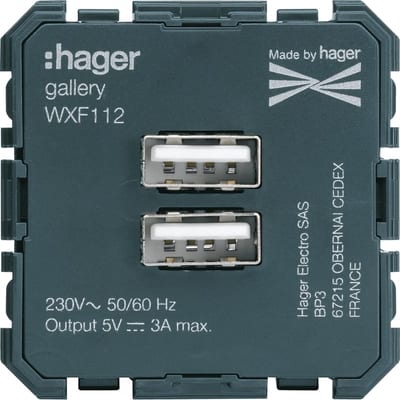

Hager Systemer USB charger gallery WXF112
