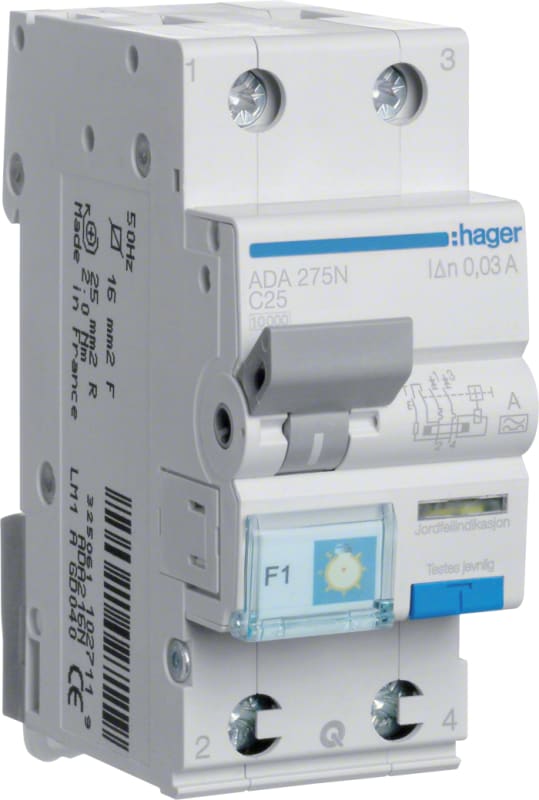

Residual current circuit breaker with overcurrent 30MA C-Curve 2X25A 6KA A

Hager Systemer ADA275N Residual current circuit breaker with overcurrent 2-POLE 25A, 30mA, 6kA 2 MODULES.

Manufacturer part number (MPN)

ADA275N

EAN / GTIN

3250611068075

HS code

8536.90

Sales unit

pcs

Package quantity

60 pcs

Breaking capacity

6 kA

Number of poles (total)

2

Number of protected poles

2

Rated voltage

240 V

Rated insulation voltage Ui

500 V

Rated impulse withstand voltage Uimp

4 kV

Rated current

25 A

Rated fault current

0.03 A

Leakage current type

A

Rated short-circuit breaking capacity according to EN 60898

6 kA

Current limiting class

3

Rated short-circuit breaking capacity according to EN 61009

4.5 kA

Disconnection characteristic

Undelayed

Surge current capacity

4.5 kA

Voltage type

AC

Frequency

50 Hz

Release characteristic

C

Concurrently switching neutral conductor

Yes

With interlocking device

Yes

Overvoltage category

3

Pollution degree

2

Ambient temperature during operating

-25–40 °C

Width in number of modular spacings

2

Built-in depth

68 mm

Anti-nuisance tripping version

No

Degree of protection (IP)

IP20

Connectable conductor cross section solid-core

1.5–25 mm²

Connectable conductor cross section multi-wired

1.5–16 mm²

Country of origin

Poland

HS Code

8536.90

• EAN 3250611068075
• SAP 1000088533
• Code 8832742
