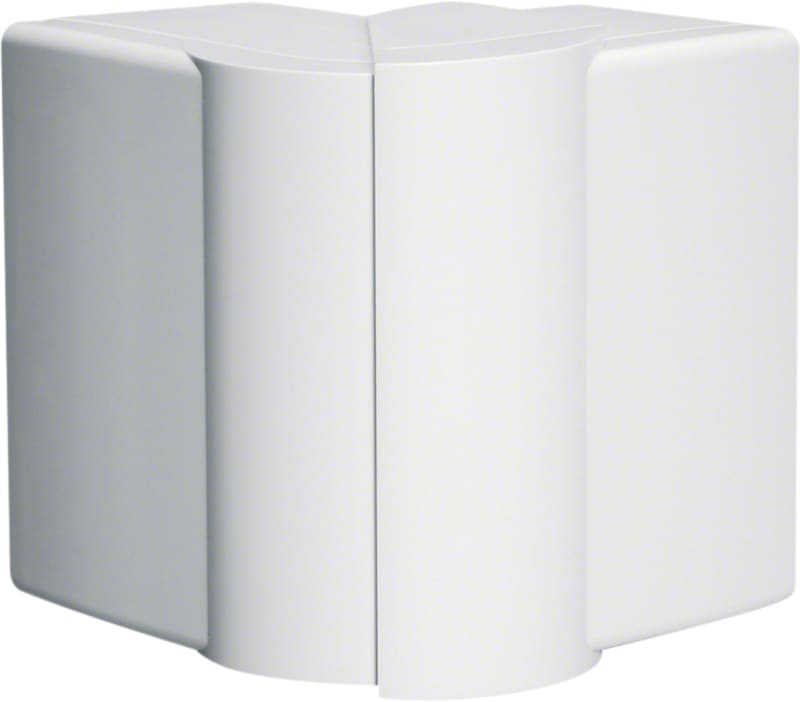

Hager Systemer External corner for LFF 60x110 mm trunking, moulded ABS, traffic white RAL 9016, adjustable 83...97 deg LFF6011039016
Pricing
Request a quote
We reply within 24 hours
Product Description
Moulded external corner hood for Hager tehalit LFF trunking in the 60x110 mm size (fits LFF 60x110, LFH 60x110). Part dimensions 60 mm x 110 mm, measurement a 48 mm. Covers a wall angle of 83 to 97 deg, with an overlapping edge that hides the cut ends of the channel. PC-ABS. Traffic white, RAL 9016, untreated. Impact resistance IK07. Operating temperature -5 to 90 °C. Halogen free. Click mounting. Not rated for circuit or functional integrity to DIN 4102-12. Supplied in packs of 5 pcs. Country of origin Germany. HS code 3925.90. Hager reference: SAP 1200495769, code 82617290.
Technical Specifications
- Manufacturer part number (MPN)
- LFF6011039016
- EAN / GTIN
- 4012740013383
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Height
- 60 mm
- Width
- 110 mm
- Measurement a
- 48 mm
- Type of accessory
- Moulded
- Angle range
- 83 - 97
- Material
- PC-ABS
- Treatment
- Untreated
- Colour
- Traffic white
- RAL code
- 9016
- Impact resistance IK
- IK07
- Suitable for functional integrity according to DIN4102-12
- No
- Operating temperature
- -5 - 90 °C
- With protective film
- No
- Overlapping
- Yes
- Mounting type
- Click mounting
- Related Series
- LFF 60x110, LFH 60x110
- Model
- Moulded hood
- Halogen free
- Yes
- RAL-number
- 9016
- Surface protection
- Untreated
- Type of fastening
- Snap on
- Impact strength
- IK07
- With protective foil
- No
- Angle
- 83–97 °
- Suitable for circuit integrity
- No
- Anti-bacterial treatment
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 3925.90
Cross References
- EAN 4012740013383
- SAP 1200495769
- Code 82617290
Product Documentation
