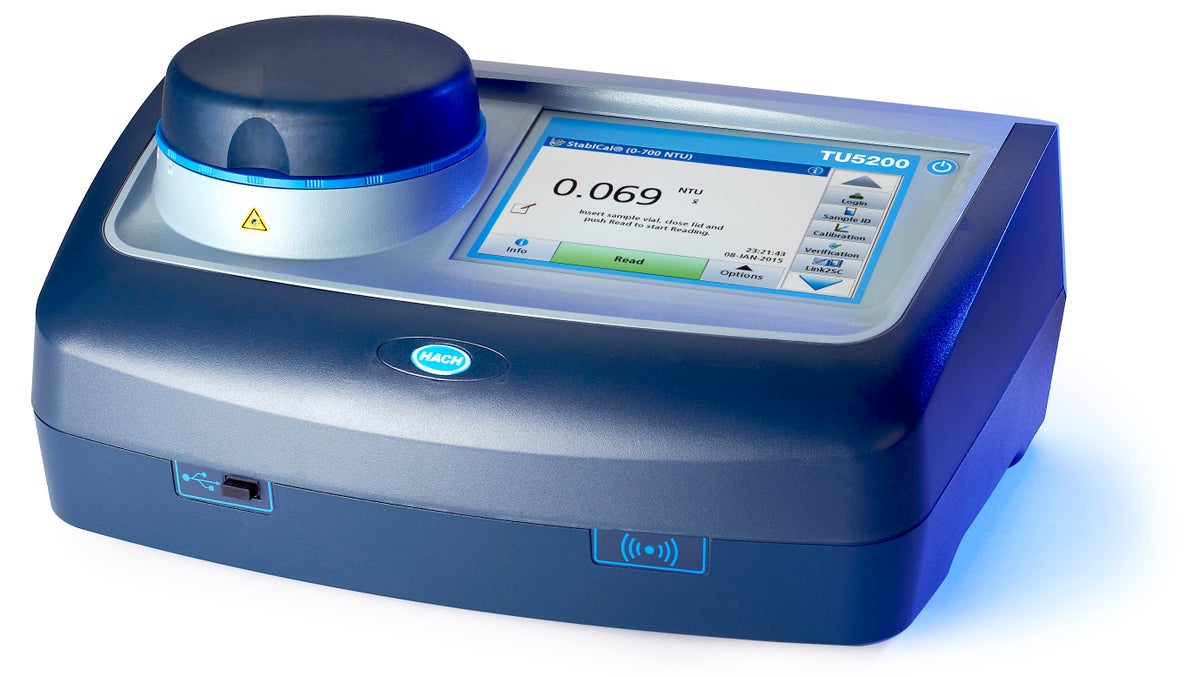

TU5200 Turbidimeter 360° X 90° without — Rfid, EPA Version

Hach TU5200 Turbidimeter 360° X 90° Without — Rfid, EPA Version. Reference part number LPV442.99.01012.

Communication interface

RFID

Accuracy

±2 % plus 0.01 NTU from 0 - 40 NTU; ±10 % of reading from 40 - 1000 NTU based on Formazin primary standard (at 25 °C)

Calibration Method

For Formazin and Stablcal; 20 NTU from 0 to 40 NTU; at 20 FNU and 600 NTU for full range; Custom calibration for up to 6-point calibrations; Degrees 0 - 100 mg/L; SDVB 0 - 1000 NTU

Certifications

CE compliant; US FDA accession number: 1420493-000 EPA version, 1420492-000 ISO version; Complies with IEC/EN 60825-1 and to 21 CFR 1040.10 in accordance with Laser Notice No. 50); Australian ACMA Marking

Communication

Link2sc

Dimensions (H x W x D)

195 mm x 409 mm x 278 mm

Display

7" WVGA (800 x 480) color TFT-LCD with touch screen

Enclosure Construction

PC/ABS Blend Plastic

Light Source

Class 2 laser product, with embedded 650 nm (EPA 0.43 mW) or Class 1 laser product, with embedded 850 nm (ISO), max. 0.55 mW (complies with IEC/EN 60825-1 and to 21 CFR 1040.10 in accordance with Laser Notice No. 50)

Model

TU5200 EPA

Operating Humidity

80% at 30 °C (non condensing)

Operating Temperature Range

10 - 40 °C (50 - 104 °F)

Power Requirements (Hz)

50/60 Hz

Power Requirements (Voltage)

100 - 240 VAC

Range

EPA; 0 - 700 NTU / FNU / TE/F / FTU; 0 - 100 mg/L; 0 - 175 EBC; ISO; 0 - 1000 NTU / FNU / TE/F / FTU; 0 - 100 mg/L; 0 - 250 EBC

Regulatory

EPA

Repeatability

<40 NTU: Better than 1% of reading or ±0.002 NTU on Formazin at 25 °C (77 °F), whichever is greater; >40 NTU: Better than 3.5% of reading on Formazin at 25 °C (77 °F)

Resolution

0.0001 NTU / FNU / TE/F / FTU / EBC / mg/L

Response Time

Signal averaging off: 7 seconds; Signal averaging on: 10 seconds (when averaging time is 5 seconds)

Sample Temperature

4 - 70 °C (39 - 158 °F)

Source Lamp

EPA Version - 650 nm Class 2 Laser

Storage Conditions

-30 - 60 °C (-22 - 140 °F)

Stray Light

<10 mNTU

Units

NTU, FNU, TE/F, FTU, EBC; mg/L if calibrated with Degrees calibration curve

Warranty

12 months

Weight

2.4 kg (5.29 lbs.)

What's included

TU5200 benchtop turbidimeter, user manual, Stablcal kit (10, 20 and 600 NTU), 2 sample vials, power supply, dust cover, vial stand

HS Code

9027.89
