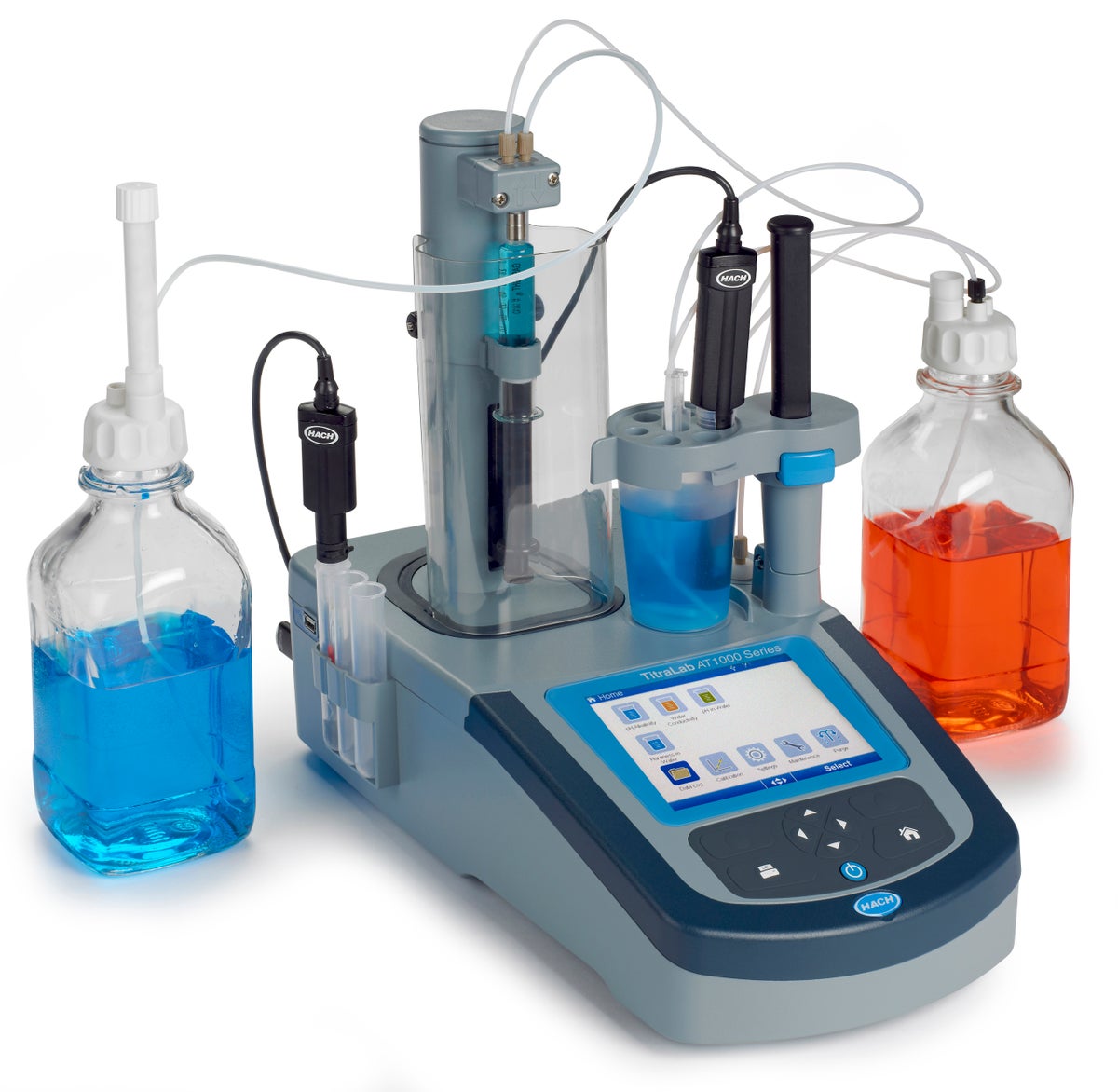

Titralab AT1000 Series AT1122.97

Hach Titralab AT1000 Series AT1122.97.

Volumes Available

2.5/5/10/25 mL, ISO8655-3

Application

Maximum number of applications: 5

Automatic Reagent Addition(s)

Integrated peristaltic pumps for reagent addition

Beaker Volumes Accepted

System specific beakers: Polypropylene

50 mL & 150 mL with clips; Generic beakers supported

Up to 250 mL low form glass

Burette

1

Burette Motor Resolution

20,000 steps with electronic µstepping technology (128 µsteps/step)

Calibration

Titrant & electrode (up to 5 buffers in Auto Mode, fixed & user defined)

Calibration Curves Display

Direct & derivative titration curves, electrode calibration curve

Calibration Intervals/Alerts/Reminder

Yes, user defined period

Certifications

Safety IEC/EN 61010-1; EMC IEC/EN 61326-1

Data Export

On USB Key, CSV type, Excel compatible.

Data Memory

Last 100 samples, QC & bright analyses, last 10 calibrations

Data Storage

Date, Time, Operator IDs, Sample IDs

Display Type

5,7"; Graphic colour; VGA

Electrode

IntelliCAL ("Plug & Play" digital), analog, photocolorimetric; 2 inputs available

Embedded Procedures

Tubing bubble purging, reagent priming, burette and pump replacement

Installation Category

Category II

Languages

English, German, French, Italian, Spanish

Maintenance Scheduler

Yes, user defined

Material Enclosures

PP Latene, Silicone, Hardered Glass, POM, Stainless steel. Splashproof design

Measurement Method

Potentiometric (zero & imposed current), amperometric, colorimetric

Measurement Modes

End Point, Inflection Point - Sample, Bright, Sample with Bright, QC Sample, QC Sample with Bright

Model

AT1122

Operating Conditions

15 - 35 °C (59 - 95 °F), 20 - 80 % RH, non-condensing

Operating Humidity

20 - 80 % (non-condensing)

Operating Interface

Soft keypad (silicone)

Operating Temperature Range

15 - 35 °C (59 - 95 °F)

Outputs

Electrode ports (x2), USB (x2), Serial (x1), Ethernet (x1)

Parameter

mV/pH, Conductivity, Temperature (°C or °F)

Password Protection

Yes, user defined

Pollution Degree

2

Power Requirements (Hz)

50/60 Hz

Power Requirements (Voltage)

100/240 VAC

Pump flow rate

100 mL/min

Pumps

2

Resolution

mV/pH: ±0.1 mV / ±0.001 pH; Conductivity: ±0.5 % of reading; Temperature: ±0.3 °C

Sample Stand

Integrated, magnetic stirring, beakers up to 250 mL

Storage Conditions

-5 to 40 °C (23 to 104°F)

Supported Peripherals

Printer, PC software, balance, sample changer, keyboard, mouse, barcode reader, sampling pump, propeller stirrer

Titration Modes

Sample, bright, sample with bright, QC sample, QC sample with bright

Titration Types

Potentiometric (zero & imposed current), amperometric, colorimetric

Warranty

12 months

Weight

4 kg

What's included

Hach AT1122 Instrument, Tube Holder, Sensor Storage Tubes, Power Supply, Power Cord

Manual; Sold Separately

Don't forget to order your Application Pack and Reagents and consider purchasing a Sample Changer!

HS Code

9027.89
