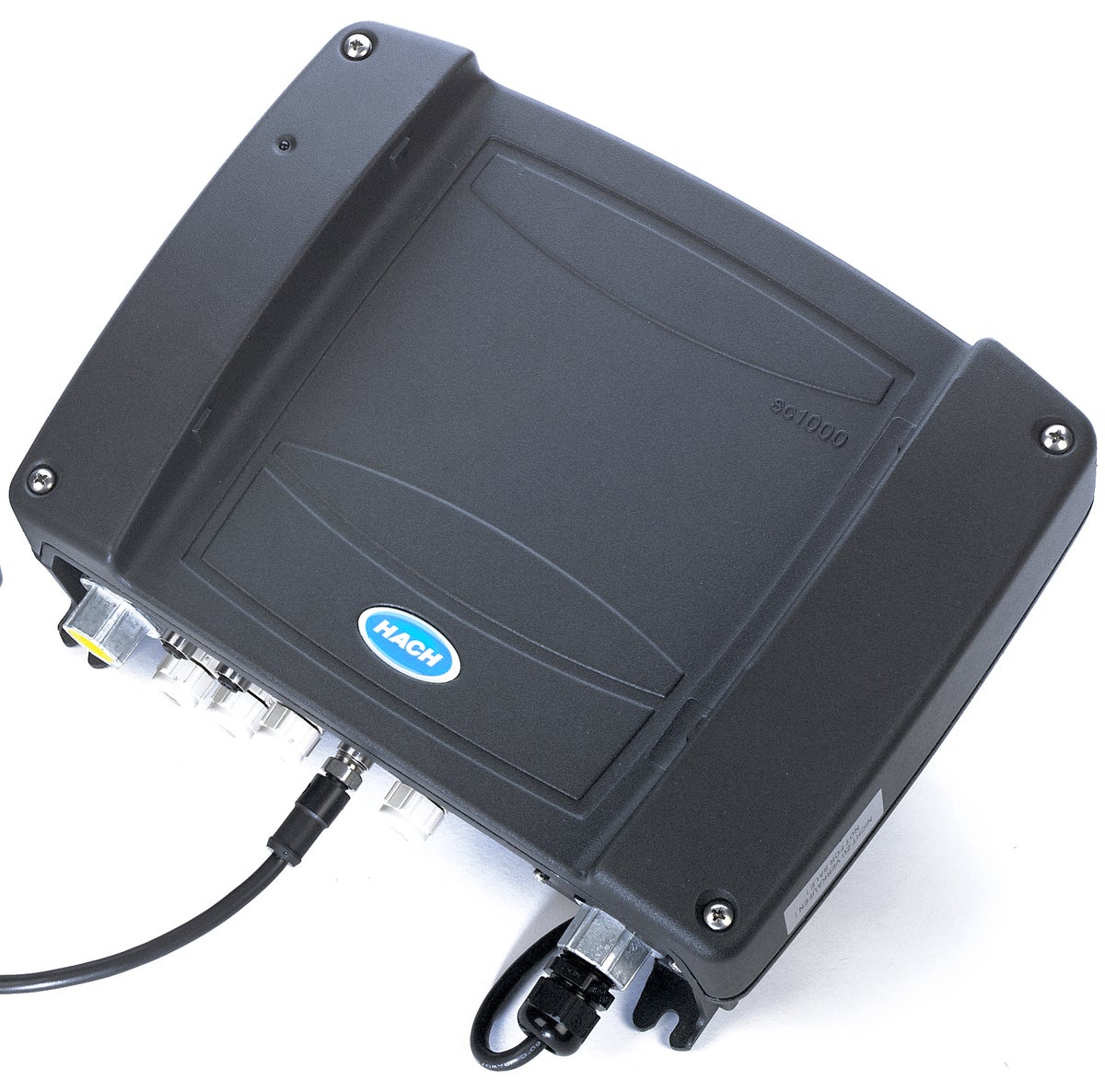

SC1000 PM 4SENS 4MA Out 110-230V Hach

SC1000 PM 4SENS 4MA Out 110-230V Hach. Reference part number LXV400.99.00122.

Alarm

Low alarm point, low alarm point deadband, high alarm point, high alarm point deadband, off delay, and on delay

Analog Inputs

No Input Module

Analog Output

One 4-20 mA Output Module

Analog Output Functional Mode

PID, high/low phasing, setpoint, deadband, overfeed timer, off delay, on delay

Certifications

European Certifications; CE per 73/23/EEC and 89/336/EEC; TUV-GS to EN 61010-1; EN 61326 Amd's 1 & 2

Communication

Modbus® (RS485): Advanced communications/networking with PLC or SCADA system directly from analyzer; Profibus® DP/V1 (certified); GSM/GPRS Quad-band cellular module (FCC and IC approved, EU and US only); Ethernet service port, RJ45, 10 MB/s

Dimensions (H x W x D)

150 mm x 315 mm x 250 mm

Display

¼ inch VGA graphical backlit TFT color Glas/Glas-Touch screen, high resistance 320 x 240 pixels

Display Viewing Area

11.4 x 8.6 cm (4.5 x 3.4 in)

Enclosure Rating

IP65

Inputs

Up to 12 analogue 0-20 mA, maximum impedance 500 Ohms per probe module. Additional inputs are available with additional probe modules.

Material Enclosures

ABS (display module) and metal (probe module) enclosure with corrosion resistant finish

Mounting

Surface, panel, and pipe (horizontal and vertical) with optional sun shield

Operating Temperature Range

-20 - 55 °C / 0 - 95% relative humidity, non-condensing

Output

Up to 12 analog 0/4-20 mA, maximum impedance 500 Ohms per probe module.; Additional analog outputs with additional probe modules. Optional digital communcations via Modbus® (RS485) and Profibus® DP/V1.

Power Options

100 - 240 VAC, no power cord

Relays

No Relay

Sensors

4

Storage Conditions

-20 to 70 °C (-4 to 158 °F), 0 to 95% relative humidity, non-condensing

Warranty

12 months

Weight

Approximately 6.5 kg (depending on configuration)

What's included

sc1000 Probe Module with installed cards (as requested), Basic User Manual

HS Code

9027.89
